Quick Details
-
Warranty:
-
25 years for power output
-
Brand Name:
-
Sunry
-
Model Number:
-
SR650-675-132M10-H
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
2384x1303x35mm
-

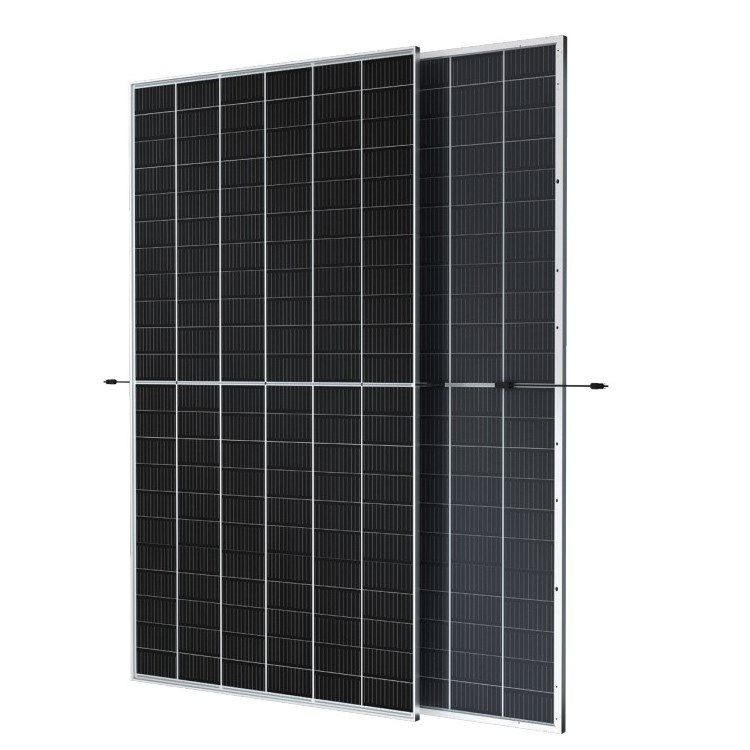

Product name:
-
Mono solar panel 660w
-
Solar cell:
-
Mono PERC 210mm half cell
-
Frame:
-
Anodized aluminium alloy
-
Front cover:
-
3.2mm High Transmissivity, Low Iron tempered glass
-
Frame Color:
-
Silver, Black, Full black
-
EVA Features:
-
Thin-Film, corrosion resistance, heat-resistant
-
Application:
-
Carport , Home Roof Solar System
-
Certificate:
-
CE/ISO/TUV
-
OEM/ODM:
-
Acceptable
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
PERC, Half Cell, Bifacial, HJT, N-TYPE, TOPCON
-
Panel Efficiency:
-
21.7%
-
Warranty:
-
25 years for power output
-
Brand Name:
-
Sunry
-
Model Number:
-
SR650-675-132M10-H
-
Place of Origin:
-
Henan, China
-
Panel Dimensions:
-
2384x1303x35mm
-
Product name:
-
Mono solar panel 660w
-
Solar cell:
-
Mono PERC 210mm half cell
-
Frame:
-
Anodized aluminium alloy
-
Front cover:
-
3.2mm High Transmissivity, Low Iron tempered glass
-
Frame Color:
-
Silver, Black, Full black
-
EVA Features:
-
Thin-Film, corrosion resistance, heat-resistant
-
Application:
-
Carport , Home Roof Solar System
-
Certificate:
-
CE/ISO/TUV
-
OEM/ODM:
-
Acceptable
Products Description
Product Paramenters
|
Module Type
|
SR(650-675)-132M10-H
|
SRxxx-108M8-H
|
SR405-108M8-H
|
SR410-108M8-H
|
SR415-108M8-H
|
||||
|
Maximum Power at STC-Pmp (W)
|
655
|
660
|
665
|
670
|
675
|
||||
|
Open Circuit Voltage-Voc (V)
|
45.4
|
45.6
|
45.8
|
46.0
|
46.2
|
||||
|
Short Circuit Current-Isc (A)
|
18.5
|
18.55
|
18.6
|
18.65
|
18.7
|
||||
|
Maximum Power Voltage-Vmp (V)
|
37.6
|
37.8
|
38.0
|
38.2
|
38.4
|
||||
|
Maximum Power Current-Imp (A)
|
17.42
|
17.46
|
17.50
|
17.54
|
17.58
|
||||
|
Module Efficiency at STC -(%)
|
20.09
|
21.25
|
21.41
|
21.57
|
21.70
|
||||
Note:
1.Standard Test Conditons[STC]: irradiance 1000W/M2 ; >AM1.5; ambient temperature 25°C according to EN 60904-3;
2.Normal Operating Cell Temperature[NOCT]: irradiance 800W/m2; wind speed 1m/s, cell temperature 45 °C; ambient temperature 20°C.
3.Tolemrance Of Pm:0~ + 5%, measuring uncertainty of power:±3%. Performance deviation of Voc[V], lsc[A], Vm[V] and lm[A]:±5%.
2.Normal Operating Cell Temperature[NOCT]: irradiance 800W/m2; wind speed 1m/s, cell temperature 45 °C; ambient temperature 20°C.
3.Tolemrance Of Pm:0~ + 5%, measuring uncertainty of power:±3%. Performance deviation of Voc[V], lsc[A], Vm[V] and lm[A]:±5%.
Product packaging
Certifications
▪
National High-Tech Enterprise
▪
ISO45001 Management System Certification
▪
TUV, CE certification
▪
ISO14001 Environmental System Certification
▪
SGS, C/O, COC certificates
▪ ISO9001
Quality System Certification
