Used Plastie Recycling Prices Double Shaft Waste Tire Shredders for Sale Waste Plastic Crusher Manufacturing Plant Energy Saving

Used Plastie Recycling Prices Double Shaft Waste Tire Shredders for Sale Waste Plastic Crusher Manufacturing Plant Energy Saving

FOB Reference Price: Get Latest Price

≥1 Sets

US $7004

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Orange

Voltage:: 380V

Dimension(L*W*H):: 3.8M*2M*2.82M

Power (kW):: 37.2

Weight (T):: 7.8

Model:: OR-1000

Blade thickness(mm):: 15-50

Blade quantity:: 60

Spindle speed:: 90rpm

Cutter diameter(mm):: 400

broken chamber size:: 1200*800mm

output(t/h):: 1.5-20

Application:: Scrap metal,Rubber,Wood,Pipe, Gargage,Waste appliances

Maximum operating speed:: 12m/min

Countertop:: 18-hole clamp suction vacuum suction table

Quick Details

Max.Production Capacity (kg/h):: 17000

Place of Origin:: China

Production Capacity (kg/h):: 300 - 17000 kg/h

Brand Name:: Orange

Voltage:: 380V

Dimension(L*W*H):: 3.8M*2M*2.82M

Power (kW):: 37.2

Weight (T):: 7.8

Model:: OR-1000

Blade thickness(mm):: 15-50

Blade quantity:: 60

Spindle speed:: 90rpm

Cutter diameter(mm):: 400

broken chamber size:: 1200*800mm

output(t/h):: 1.5-20

Application:: Scrap metal,Rubber,Wood,Pipe, Gargage,Waste appliances

Maximum operating speed:: 12m/min

Countertop:: 18-hole clamp suction vacuum suction table

Product Description

Used Plastie Recycling Prices Double Shaft Waste Tire Shredders For Sale

Double-axle shredder, also known as shear shredder, reduces the size of the material by shearing, tearing, and squeezing. It is mainly used to big solid materials which are hard to crush by single shaft shredder.such as metals, plastics, domestic waste, wood, oil drums, tires, mulch film, braided materials, waste paper, kitchen waste, cable, etc.

Applications

Paper products : newspaper, cardboard, corrugated paper, copy paper;

Barrel products : plastic barrels, metal barrels, paint buckets, IBC barrels, trash cans; rubber products ： Rubber tire, rubber/plastic material from the injection mold. Fiber products ：Fiber, coconut fiber, jute fiber. Cloth leather products ：Non-woven fabric and Nylon,Leather, artificial leather, leather shoes, leather clothes, leather hand bags. Plastic products : plastic bags, woven bags, plastic bottles, plastic frames, plastic cans; Metal products : aluminum profiles, oil filters, cans, metal cans; Electronic appliances : refrigerator casing, circuit board, laptop casing, TV casing, CD disc; Glass products : glass wool, glass, glass bottles; Wood products : wood trim, wooden pallets, solid wood, branches;

Model	OR-1200
Blade thickness（mm）	15-50
Cutter diameter（mm）	400
Broken chamber size（mm）	1200*800
Output（t/h）	1.5*20
Power（kw）	37*2
Dimension（m）	3.822.82
Weight	7800kg

Main Features

1.The frame is welded with high strength steel plates, which can resist high torque and is very sturdy and durable.

2.The equipment has met the environmental protection standards due to its low speed, large torque, large crushing room, low noise, and less dust.

Main Features

3.The knife is made with special alloy steel,through high temperature treatment,it can work for long life time;

4.Microcomputer (PC) automatic control, set start, stop, reverse and overload automatic reverse control.

5.Easy to adjust, low maintenance costs, economical and durable.

Product List:
Model	Blade thickness （mm）	Cutter diameter （mm）	Broken chamber size（mm）	output （t/h）	Power （kw）	Dimension （ m ）	Weight (kg)
600	15-50	260	600*550	0.3-5	11*2	3×2×1.1	2850
800	15-50	300	800*600	0.5-6	22*2	3.3×2×2.42	4200
1000	15-50	350	1000*700	1-15	30*2	3.5×2×2.82	6500
1200	15-50	400	1200*800	1.5-20	37*2	3.8×2×2.82	7800
1400	15-50	450	1400*900	2-25	37*2	4.4×2×3	9600
1600	15-50	500	1600*1000	3-35	45*2	4.4×2×3	12560

Detailed Images

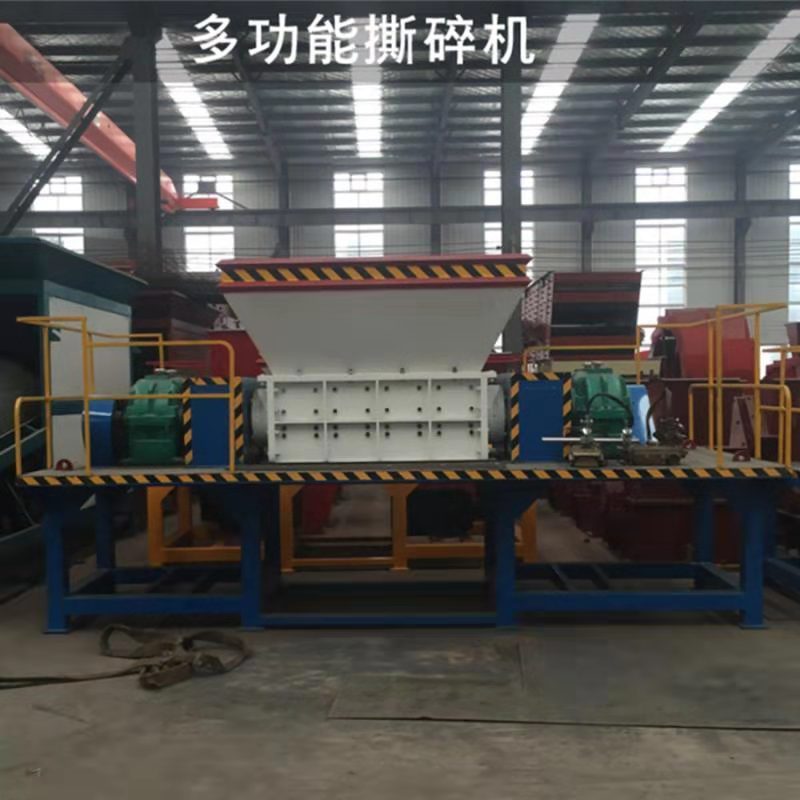

Double-axle shredder

Motor

The motor will move after turning on the power,it offers power for whole machine.

Cutter
The function of cutter is break the material to the fragment,such as metal,plastics,wood and so on.

Spare parts

These are important spare parts of the shredder machine.

Shredding Cavity
It include two bearings.After getting power,it will rotate in the opposite direction.And it will tear material when it move. And
it will stop working when material are not easy broken.This is also protect machine.
