Quick Details
-
Weight:
-
27000 KG
-
Marketing Type:
-
New Product 2023
-
Name:
-
Energy efficient aggregate trommel screen for washing gold
-
Application:
-
Gold
-
Product name:
-
Mobile trommel screen
-
Keywords:
-
mobile trommel screen
-
Usage:
-
Mining Concentration
-
Color:
-
Customers' Requirements
-
Material:
-
Steel
-
Installation:
-
Engineer Guide
-
Capacity:
-
10-400tons
-
Feeding size:
-
Requiremend
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HONGZHI
-
Voltage:
-
220v/330v
-
Weight:
-
27000 KG
-
Marketing Type:
-
New Product 2023
-
Name:
-
Energy efficient aggregate trommel screen for washing gold
-
Application:
-
Gold
-
Product name:
-
Mobile trommel screen
-
Keywords:
-
mobile trommel screen
-
Usage:
-
Mining Concentration
-
Color:
-
Customers' Requirements
-
Material:
-
Steel
-
Installation:
-
Engineer Guide
-
Capacity:
-
10-400tons
-
Feeding size:
-
Requiremend

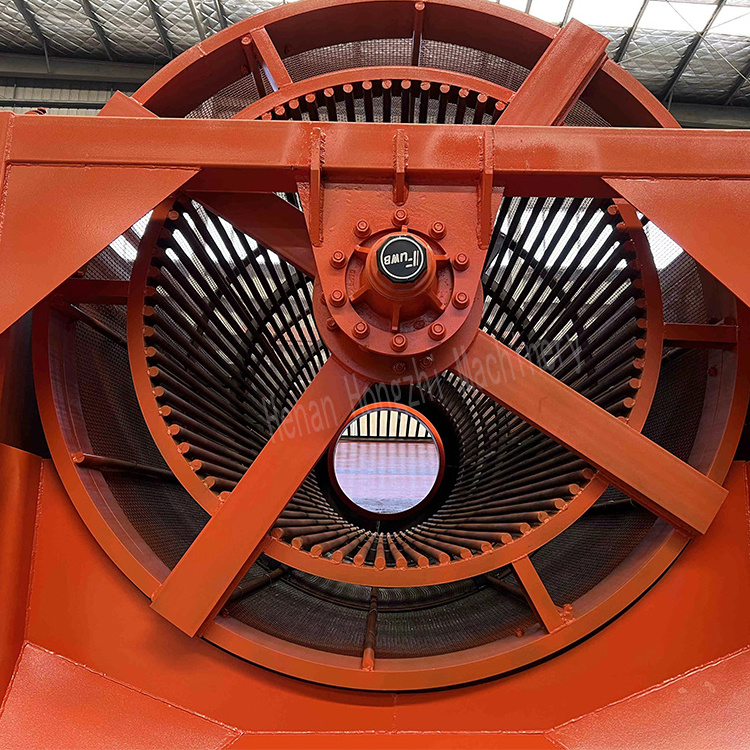

Description of China Placer Gold Mining Washing Trommel Screen Equipment Gold Panning
It is a kind of combined gold mining machine , designed especially for clayed soil which is contained in the raw material,
includes sieving, separating through trammel, sluice and extraction gold progress. It is with wheel type chassis, can be driven by vehicles and move easily.
Trommel Rotary Drum Screen Best Quality Trommel Screen Stone Sand Drum Hot Saling Trommel Screen For Solid Waste Separation
The rotary screen provides a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.
|
Model
|
Capacity (t/h)
|
Power (kw)
|
Screen
Diameter (mm)
|
Screen
Length (mm)
|
Discharge
Size(mm)
|
Input
Size(mm)
|
Dimension
(L×W×H)(mm)
|
Weight (kg)
|
|
GTS1015
|
50
|
3.0
|
1000
|
1500
|
0~100
|
≤300
|
2600×1400×1700
|
2200
|
|
GTS1020
|
100
|
4.0
|
1000
|
2000
|
|
|
3390×1400×2140
|
2800
|
|
GTS1225
|
160
|
5.5
|
1200
|
2500
|
|
|
4146×1600×2680
|
4200
|
|
GTS1530
|
250
|
7.5
|
1500
|
3000
|
|
|
4460×1900×2820
|
5100
|
|
GTS1545
|
350
|
11
|
1500
|
4500
|
|
≤400
|
5960×1900×3080
|
6000
|
|
GTS1848
|
450
|
15
|
1800
|
4800
|
|
|
6500×2350×4000
|
7500
|
|
GTS2055
|
600
|
22
|
2000
|
5500
|
|
|
7500×2550×4800
|
9600
|
|
GTS2265
|
800
|
30
|
2200
|
6500
|
|
|
8500×2750×5000
|
12800
|
Henan Hongzhi machinery mainly focuses on design and manufacturing waste sorting machines. include trommel screen machine, air separator, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine,chain plate feeder, belt conveyor.etc. Henan Hongzhi machinery is a high-tech modern enterprise integrating scientific research and development, production and sales, engineering design, installation services. Our machine has passed CE certification. Our machines has already spread over the world. We can provide customers with one-stop service and solutions, complete equipment,on-site installation, and after-sales support.
Shipping and package of
gold mining washing trommel screen
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
