Fast connector are factory pre-polished field-installable connectors that completely eliminate the need for hand polishing in field.
Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and proprietary index matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fiber.
Fast connectors are compatible with 250um and 900um optical fiber as well as 900um, 2mm, 3mm and drop cable cordage.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SURELINK
-
Use:
-
FTTH
-
Warranty Time:
-
10years
-
key word:
-
sc upc/apc fast connector
-
Insertion Loss(dB):
-
≤0.5
-
Fiber mode:
-
Single mode or Multi mode
-
Return Loss(dB):
-
≥50
-
Operating Temperature(℃):
-
-40~+85
-
Color:
-
Green
-
Product name:
-
Fiber Optic Fast Connector
-
Insertion loss:
-
≤ 0.3dB
-
Return loss:
-
≥ 65dB
-
Size:
-
50MM or 60MM
Quick Details
-
Type:
-
fiber optic connector
-
Model Number:
-
SC UPC/APC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SURELINK
-
Use:
-
FTTH
-
Warranty Time:
-
10years
-
key word:
-
sc upc/apc fast connector
-
Insertion Loss(dB):
-
≤0.5
-
Fiber mode:
-
Single mode or Multi mode
-
Return Loss(dB):
-
≥50
-
Operating Temperature(℃):
-
-40~+85
-
Color:
-
Green
-
Product name:
-
Fiber Optic Fast Connector
-
Insertion loss:
-
≤ 0.3dB
-
Return loss:
-
≥ 65dB
-
Size:
-
50MM or 60MM
Hot sale APC Fast connector fibra optica sc fast connector FTTH
APC UPC
fiber optical fast connector
PRODUCT SPECIFICATIONS
1.Optical Characteristics
|
Category
|
Specification
|
Data
|
|
|
Aoolicable for
|
Drop cable.Indoor cable
|
IP65
|
|
|
Fiber mode
|
Single mode or Multi mode
|
ABS or PC
|
|
|
Operation time
|
S
|
About 50(no fiber cut)
|
|
|
Insertion Loss
|
dB
|
≤0.5
|
|
|
Insertion Loss Typical value
|
dB
|
0.3
|
|
|
Return Loss
|
dB
|
≥50
|
|
|
Fastening strength of naked fiber
|
N
|
≥5
|
|
|
Tensile strength
|
N
|
≥50
|
|
|
Reusable
|
Time
|
≥10 times
|
|
|
Operating Temperature
|
℃
|
-40~+85
|
|
|
On-line tensile strength(20N)
|
dB
|
ΔIL≤0.3
|
|
|
Mechanical durability(500 times)
|
dB
|
ΔIL≤0.3
|
|
|
Drop-off test(drop-off height4m,once per direction,totally 3 times)
|
dB
|
ΔIL≤0.3
|
|
2.Environmental performance requirements
|
Category
|
Specification
|
|
|
|
|||
|
|
Condition
|
IL Variation
|
RL Variation
|
Appearance
|
|||
|
High TEMP
|
110℃,200H
|
≤0.5
|
≤5
|
No mechanical damage,
like deformation, cracking and untight |
|||
|
Low TEMP
|
-40℃,200H
|
≤0.5
|
≤5
|
|
|||
|
TEMP Cycling
|
-40~85℃,3.5H/Cle,100C
|
≤0.5
|
≤5
|
|
|||
|
HAST
|
110℃,90%RH,200H
|
≤0.5
|
≤5
|
|
|||
|
Immersion
|
25℃,200H
|
≤0.5
|
≤5
|
|
|||
|
Salt Mist
|
5% Nacl,6.5
|
≤0.5
|
≤5
|
|
|||
SIMILAR PRODUCTS
COMPANY PROFILE
Zhuhai Surelink Communication Cable Co.,Ltd
is one of the leading manufacturer in the cables and telecom accessories. We have more than
20 years experience
in this line.Our factory has over
twenty production lines and 300 employees
.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.
We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.
We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.
CERTIFICATE
MANUFACTURE

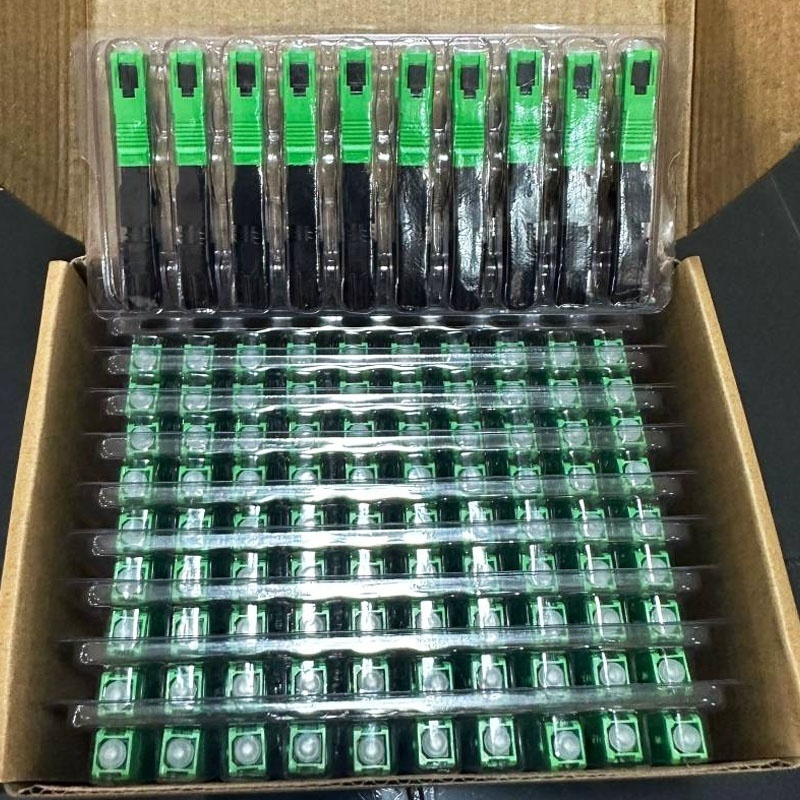

PRODUCT PACKAGE
