Quick Details
-
Weight (KG):
-
1000
-
Power (kW):
-
According to customer's requirement
-
Name:
-

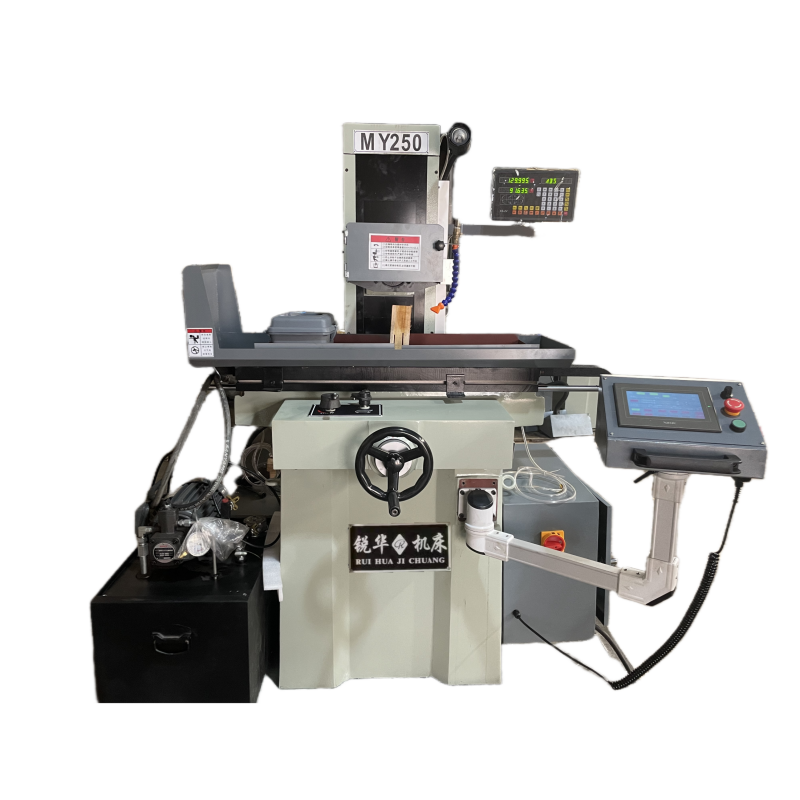

Surface grinding machine
-
Precision:
-
0.005mm
-
Key words:
-
Hydraulic grinder
-
Max. Grinding Length:
-
550mm
-
Max. Grinding Diameter:
-
280mm
-
configuration:
-
Digital display table
-
The motor power:
-
1.5kw
-
The machine performance:
-
hydraulic
-
Machine weight:
-
1000kgs
-
Keywords:
-
Surface Grinding Machine
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RUIHUA
-
Voltage:
-
220/380V
-
Weight (KG):
-
1000
-
Power (kW):
-
According to customer's requirement
-
Name:
-
Surface grinding machine
-
Precision:
-
0.005mm
-
Key words:
-
Hydraulic grinder
-
Max. Grinding Length:
-
550mm
-
Max. Grinding Diameter:
-
280mm
-
configuration:
-
Digital display table
-
The motor power:
-
1.5kw
-
The machine performance:
-
hydraulic
-
Machine weight:
-
1000kgs
-
Keywords:
-
Surface Grinding Machine
|
specifications
|
Parameters
|
|
Unit
|
M250YHAS
|
|
|
Processing capacity |
Working Surface of Table
|
|
mm
|
500x200
|
|
|
|
Max Table Travel
|
|
mm
|
550
|
|
|
|
Max Cross Travel
|
|
mm
|
280
|
|
|
|
Distance Between Table Surface and Spindle Cent
|
|
mm
|
470
|
|
|
|
Max Table Load
|
|
kgs
|
300
|
|
|
The workbench |
Tee Slot(NumberXwidlh)
|
|
mm
|
14x1
|
|
|
|
Table Speed
|
|
m/min
|
5-25
|
|
|
|
Crossfeed Handwheel
|
1grad
|
mm
|
0.02
|
|
|
|
|
1rev
|
|
2.5
|
|
|
|
Automatic Crossfeet of Saddle
|
|
mm
|
0.5-12
|
|
|
|
Power Cross Feed
|
50HZ
|
mm
|
750
|
|
|
|
|
60HZ
|
|
950
|
|
|
Grinding wheel |
Grinding Wheel
|
|
mm
|
200x17x31.75/32
|
|
|
|
Spindle Speed
|
50HZ
|
rpm
|
2850
|
|
|
|
|
60HZ
|
|
3420
|
|
|
Upper and lower structure
|
Vertical Handwheel
|
1grad
|
mm
|
0.01
|
|
|
|
|
1rev
|
|
1.25
|
|
|
The motor |
Spindle Motor
|
|
kw
|
1.5
|
|
|
|
Hydraulic Motor
|
|
kw
|
0.75
|
|
|
|
Dust Coliection Motor
|
|
kw
|
-
|
|
|
|
Coolant Motor
|
|
w
|
40
|
|
|
|
Crossfeed Motor
|
|
w
|
60
|
|
|
|
Floor Space
|
|
mm
|
2500x1500x1800
|
|
|
size
|
Net Weight
|
|
kgs
|
1000
|
|
|
|
Gross Weight
|
|
kgs
|
1100
|
|
