Quick Details
-
Voltage:
-
customerized local voltage
-
Power:
-
30-50KW or Customized
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
10000
-
Product name:
-
coating machine
-
Sample:
-
yes
-
Material:
-
SUS304
-
Technology:
-
Evaporation Coating
-
Application:
-
automotive lamps,decorative film
-
Function:
-
Protective Film
-
Control System:
-
PLC+ touch screen
-
Ultimate vacuum:
-
3.0x10-4pa
-
Quality:
-
stable quality
-
Advantage:
-
High-efficiency
Quick Details
-
Machine Type:
-
pvd coating machine, Coating Equipment
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HANA
-
Voltage:
-
customerized local voltage
-
Power:
-
30-50KW or Customized
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
10000
-
Product name:
-
coating machine
-
Sample:
-
yes
-
Material:
-
SUS304
-
Technology:
-
Evaporation Coating
-
Application:
-
automotive lamps,decorative film
-
Function:
-
Protective Film
-
Control System:
-
PLC+ touch screen
-
Ultimate vacuum:
-
3.0x10-4pa
-
Quality:
-
stable quality
-
Advantage:
-
High-efficiency
Products Description
Evaporating coating adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity.
We produce both vertical and horizontal style.
Characteristic
: Reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.
Application
automotive lamps / accessories, touch screens, these
glass, plastic, films, metals, and almost any other kind of material.
|
Model
|

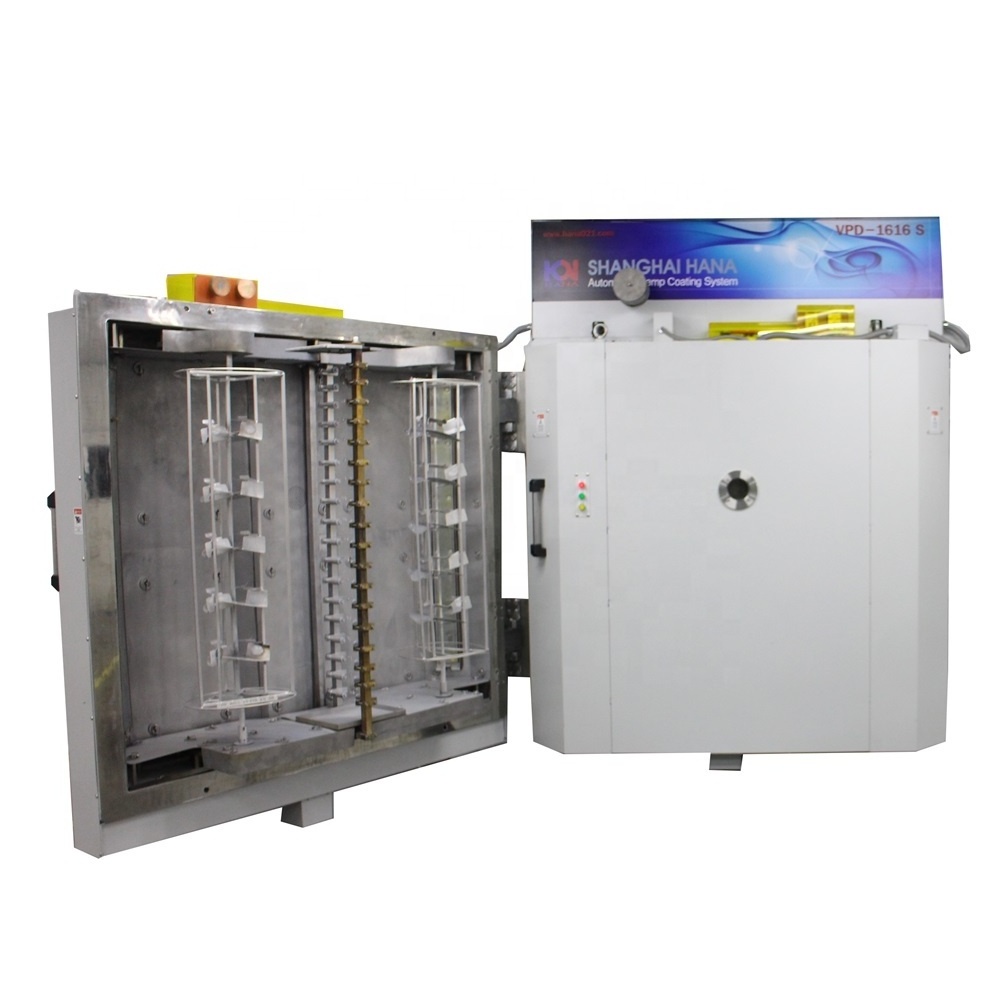

VPD 1616 S
|
VPD 1618 S
|
VPD 1420 S
|
||
|
Dimension
|
1600x700x1600
|
1600x700x1800
|
1400x620x2000
|
||
|
Material
|
SUS304 stainless steel or carbon steel
|
|
|
||
|
Vacuum system
|
Diffusion pump +Roots pump +Rotary pump(3.0*10-4Pa)
|
|
|
||
|
Working cycle
|
Public rotation Frequency control: 0-20 rotation per minute
|
|
|
||
|
Process power
|
Imported MF power supply
|
|
|
||
|
Cooling system
|
POLY cold unit( reaching under 130°C), CHILLER
|
|
|
||
|
Control system
|
PLC and one touch screen
|
|
|
||
|
Remark
|
All can be designed according to customer's requests.
|
|
|
||
