Quick Details
-
Warranty:
-
1year, 1 Year
-
Place of Origin:
-
Fujian, China, Fujian, China
-
Brand Name:
-
SAYIDE, SAYIDE
-
Model Number:
-
DH6500/DH8500/DH9500D/H10500/, DH Series
-
Speed:
-
3000RMP
-
Weight:
-
100Kg-200Kg
-
Certification:
-
CE, CE
-
Phase:
-
1 Phase/3 Phase
-
Starting system:
-
Electric Starter
-
Type:
-
Silent(super Silent)or Open
Quick Details
-
Rated Voltage:
-
110V/220V/380V, 110V/220V/380V
-
Rated Current:
-
20A-45A
-
Frequency:
-
50Hz/60Hz, 50/60HZ
-
Warranty:
-
1year, 1 Year
-
Place of Origin:
-
Fujian, China, Fujian, China
-
Brand Name:
-
SAYIDE, SAYIDE
-
Model Number:
-
DH6500/DH8500/DH9500D/H10500/, DH Series
-
Speed:
-
3000RMP
-
Weight:
-
100Kg-200Kg
-
Certification:
-
CE, CE
-
Phase:
-
1 Phase/3 Phase
-
Starting system:
-
Electric Starter
-
Type:
-
Silent(super Silent)or Open

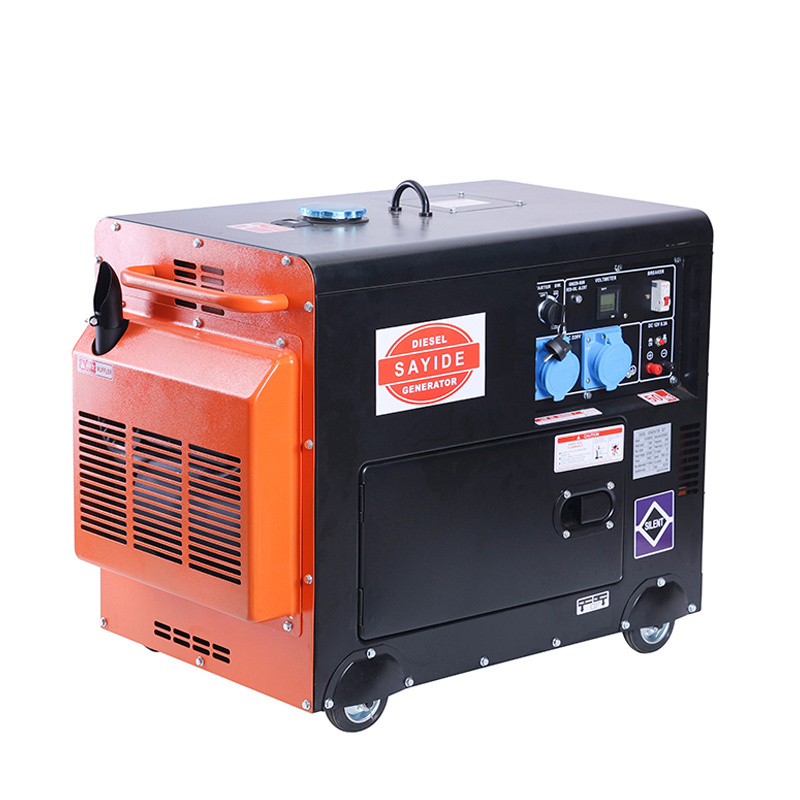

5KW 6KW 7KW 8KW 10KW Kva Small Diesel Generator Engine Single Phase Or Three Phase Silent Diesel Generator Easy To Move
| Model number | DH5500 | DH6500 | DH7500 | DH8500 | DH10000 |
| Rated output(KW) | 5 | 6 | 7 | 8 | 9.5 |
| Max output(KW) | 5.5 | 6.5 | 7.5 | 8.5 | 10 |
| Rated AC Voltage(V) | 110v/220v/380v | ||||
| Frequency(HZ) | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ |
| Engine Speed(R.P.M) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Power Factor | 1 | 1 | 1 | 1 | 1 |
| DC output(V/A) | 12V/8.3A | 12V/8.3A | 12V/8.3A | 12V/8.3A | 12V/8.3A |
| Phase | Single phase or Three phase | ||||
| Alternator Type | |||||
| Starting System | Electric Start | ||||
| Noise Level(dB at 7m) | 70-75 dB | 70-75 dB | 70-75 dB | 70-75 dB | 70-75 dB |
| Fuel Tank Capacity (L) | 15 | 15 | 15 | 15 | 15 |
| Continuous Work(hr) | 14 | 13 | 12 | 12 | 11 |
| Engine Model | 188F | 190F | 192F | 192F | 195F |
| Engine Type | Single-cylinder, vertical,4-stroke air-cooled diesel engine | ||||
| Displacement(cc) | 418cc | 456cc | 490cc | 490cc | 530cc |
| Bore×Stroke(mm) | 88x72 | 90x75 | 92x75 | 92x75 | 95x75 |
| Fuel Consumption Rate (g/kw/h) | 295 | 295 | 295 | 295 | 295 |
| Fuel Type | 0# or -10# light diesel oil | ||||
| Lubrication Oil Volume(L) | 1.65L | 1.65L | 1.65L | 1.65L | 1.65L |
| Combustion System | Direct Injection | ||||
| Standard Features | Voltmeter, AC Output Socket, AC Circuit Breaker, Oil Alert | ||||
| Optional Features | Four Sides Wheels, Digital Meter, ATS, Remote Control | ||||
| Dimention(LxWxH)(mm) | 96*56*78 cm | 96*56*78 cm | 96*56*78 cm | 96*56*78 cm | 96*56*78 cm |
| Net Weight(kgs) | 135 | 140 | 145 | 145 | 150 |
| Gross Weight(kgs) | 140 | 145 | 150 | 150 | 155 |
Q1: What is your MOQ of silent diesel generator? How long is your processing time for MOQ?
1 set within 2 working days or 48 hours.
Q2: Is the silent diesel generator customized?
Yes. Color, logo and packing can be customized according to customers design.
Q3: Is it alright to make customer's own brand name on the silent diesel generator ?
Sure, as long as you authorize us to use your brand on your behalf.We have over 10 years OEM/ODM experience.
Q4
Are operating instructions provided?
Yes, we can provide the required language instructions and the productoperation teaching videos.
Q5: What is your company production capacity?
500 sets each day.
Q6: What is the delivery time for the silent diesel generator?
If the items which you purchase is in stock we can send them out immediately, Customization,7-15 days after advance payment.
Q7: How long is your warranty period for your silent diesel generator?
1 year or 1000 hours warranty whichever comes first except the wearing and tearing parts.We suggest customers buy some wearing and tearing parts in each order.
Q8: What are your payment terms?
T/T 30% deposit, 70% balance should be paid against the B/L copy.D/P for regular good reputation customers.
Paypal is accepted for one set, but please discuss to our sales person first.
