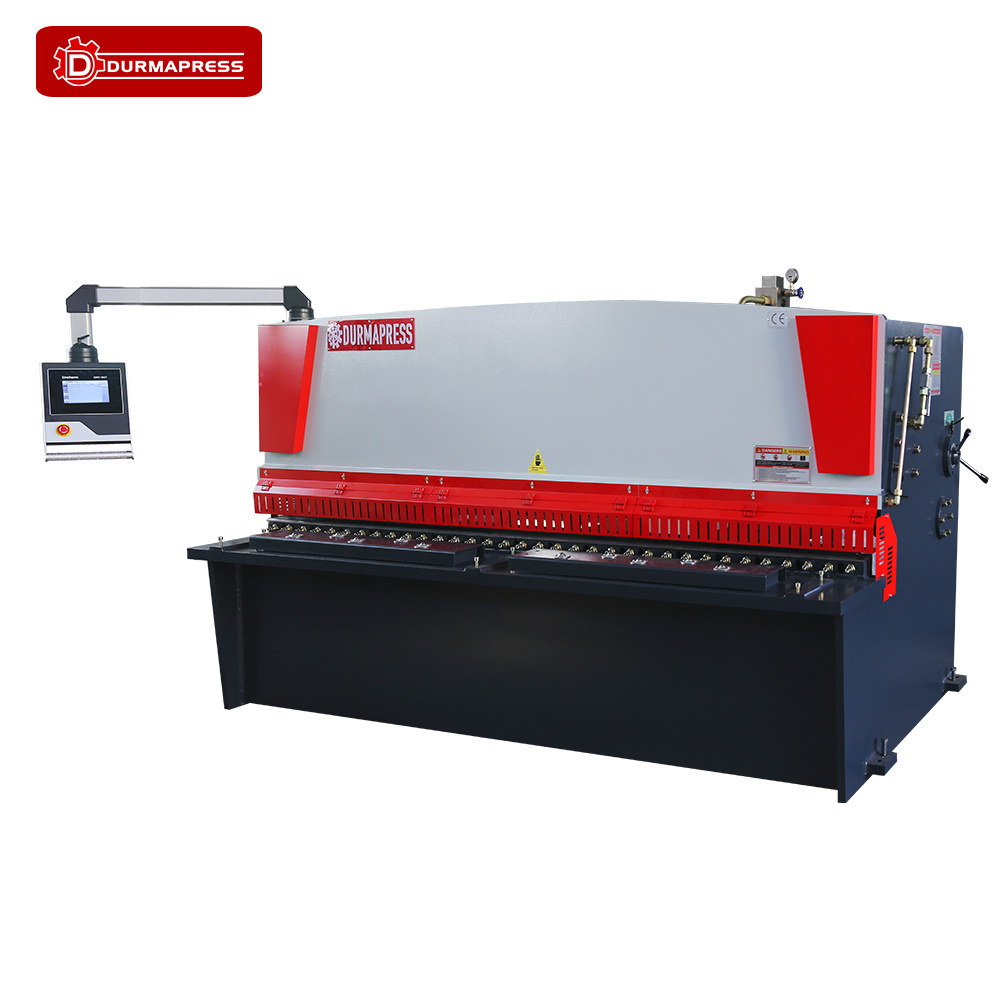

Durmapress Electric hydraulic cnc shearing machine sheet auto iron cutting machine 8mm metal steel cutting swing beam shearing
Durmapress Electric hydraulic cnc shearing machine sheet auto iron cutting machine 8mm metal steel cutting swing beam shearing
Durmapress Electric hydraulic cnc shearing machine sheet auto iron cutting machine 8mm metal steel cutting swing beam shearing
Durmapress Electric hydraulic cnc shearing machine sheet auto iron cutting machine 8mm metal steel cutting swing beam shearing
Durmapress Electric hydraulic cnc shearing machine sheet auto iron cutting machine 8mm metal steel cutting swing beam shearing
Durmapress Electric hydraulic cnc shearing machine sheet auto iron cutting machine 8mm metal steel cutting swing beam shearing
Durmapress Electric hydraulic cnc shearing machine sheet auto iron cutting machine 8mm metal steel cutting swing beam shearing
Durmapress Electric hydraulic cnc shearing machine sheet auto iron cutting machine 8mm metal steel cutting swing beam shearing

Durmapress Electric hydraulic cnc shearing machine sheet auto iron cutting machine 8mm metal steel cutting swing beam shearing

FOB Reference Price: Get Latest Price
≥1 Sets
US $12000
≥2 Sets
US $11900
≥3 Sets
US $11813
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Blade Length (mm):
2600 mm
Throat Depth (mm):
14 mm
Brand Name:
Durmapress
Power (kW):
7.5 kW
Weight (KG):
5000 KG
Place of Origin:
Anhui, China
Dimension(L*W*H):
3050*1700*1620
Year:
2024
Marketing Type:
Hot Product 2024
Application:
Cutting
Product name:
Hydraulic Cnc Shearing Machine
Function:
Metal Hydraulic Guillotine Shears
Usage:
Metal Plate Cutting
CNC or not:
CNC
Keyword:
Hydrualic Shearing Machine
Control system:
Delem
Name:
Hydraulic Shearing Machine
Cutting material:
Metal Stainless Steel Carbon Steel
Main Motor:
SIMENS

Quick Details

Max. Cutting Width (mm):
2500
Max. Cutting Thickness (mm):
8 mm
Shearing Angle:
1°30'
Blade Length (mm):
2600 mm
Throat Depth (mm):
14 mm
Brand Name:
Durmapress
Power (kW):
7.5 kW
Weight (KG):
5000 KG
Place of Origin:
Anhui, China
Dimension(L*W*H):
3050*1700*1620
Year:
2024
Marketing Type:
Hot Product 2024
Application:
Cutting
Product name:
Hydraulic Cnc Shearing Machine
Function:
Metal Hydraulic Guillotine Shears
Usage:
Metal Plate Cutting
CNC or not:
CNC
Keyword:
Hydrualic Shearing Machine
Control system:
Delem
Name:
Hydraulic Shearing Machine
Cutting material:
Metal Stainless Steel Carbon Steel
Main Motor:
SIMENS
Product Description

Hydraulic Swing Beam (CNC) Shaering Machine

The host adopts the QC12K series model,with the economical special numercial control system;
The post-block position is displayed in real time;
Multi-step programming function,after the automatic operation and continuous positioning of the material,the automatic accurate adjustment of the post-block position;
The shearing count function shows the shear number in real time;
The rear block adopts the inlet ball screw to ensure the positioning accuracy of the rear retaining material,and the machining precision is higher.
Product Details
DAC310T (DELEME)
High-definition LCD dispaly,128×64 pixels
Backgauge control
Knife dege gap control
Cutting stroke control
The actual position of the back gauge is displayed synchronously with the programmed value
Cut count
100 steps

Schneider Electrical Parts

Use French schneider electrics to ensure machine stability
High quality electric parts can perform well even the electricity is not stable and customs can easily get the replacement anywhere in the world

Hydraulic Hold-down Pads
The lower end of the press cylinder is made of non-metal material,which has certain elasticity and large friction coefficient.When cutting the sheet,the press pad can be in close contact with the material plate to provide sufficient friction to effectively prevent the plate from being shaken during the shearing process.
Products Parameters
Name
Unit
8×2500
8×3200
8×4000
Max cutting thickness
mm
8
8
8
Max cutting length
mm
2500
3200
4000
Cutting Angle
°
0.5-1.5
0.5-2.0
0.5-2.5
Length of Cuuter Blade
mm
2600
3300
3300
Main motor power
kw
7.5
7.5
11
Certifications
Customers Feedback
Our Company
FAQ
1.Q: How to get a accurate quotation from us ?
A:Please provide us the details of material , max thickness and max width .

2.Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.

3.Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode,we have reliable shipping agent to insure the safe convenient and time delivery.

4.Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.

5.Q:How to operate this machine ?
A:Video line of our factory or we send you the video directly.

6.Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.

7.Q:Do you offer teaching & training ?
A:Training at supplier's plant
