Quick Details
-
Max. Lifting Load:
-
1-32 Ton, Customized acceptable
-
Span:
-
5m-31m,Customized acceptable
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KOMAY
-
Weight (KG):
-
5000 kg
-
Product Name:
-

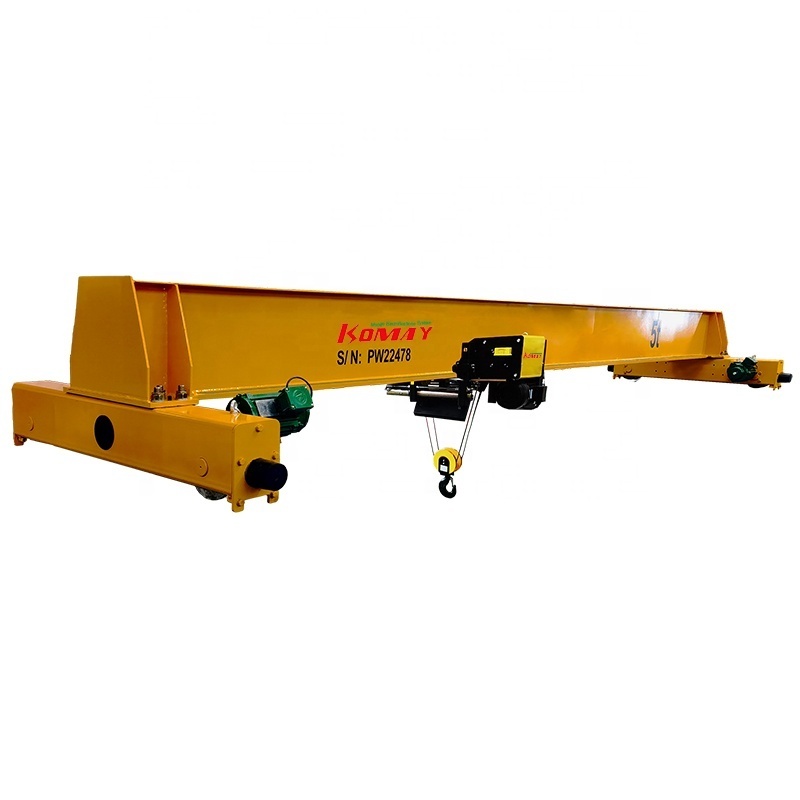

Single Girder Overhead Crane
-
Traveling Speed:
-
8~32 m/min or can be customized
-
Work Duty:
-
A3~A5
-
Power Supply Voltage:
-
380V 60Hz 3 Phase (Customized Acceptable)
-
Hoist Trolley Speed:
-
8m/min-20m/min
-
Control Method:
-
Pendent control, remote control,cabin control
-
Lifting Mechanism:
-
Eliectric hoist
-
Crane Feature:
-
Easy Operated Girder Bridge Crane
-
Certification:
-
CE,ISO
-
OEM/ODM:
-
Available
Quick Details
-
Max. Lifting Height:
-
3M, 7.5m, 10M, 15M, 20M, Customized acceptable
-
Marketing Type:
-
New Product
-
Rated Lifting Moment:
-
10kn-200 Kn
-
Max. Lifting Load:
-
1-32 Ton, Customized acceptable
-
Span:
-
5m-31m,Customized acceptable
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KOMAY
-
Weight (KG):
-
5000 kg
-
Product Name:
-
Single Girder Overhead Crane
-
Traveling Speed:
-
8~32 m/min or can be customized
-
Work Duty:
-
A3~A5
-
Power Supply Voltage:
-
380V 60Hz 3 Phase (Customized Acceptable)
-
Hoist Trolley Speed:
-
8m/min-20m/min
-
Control Method:
-
Pendent control, remote control,cabin control
-
Lifting Mechanism:
-
Eliectric hoist
-
Crane Feature:
-
Easy Operated Girder Bridge Crane
-
Certification:
-
CE,ISO
-
OEM/ODM:
-
Available
Products Description
|
Lift capacity(T)
|
1T~32T (single girder or double girder)
|
|
|
|
Crane span(M)
|
3~28m according to your demands
|
|
|
|
Lifting height(M)
|
3~48m according to your demands
|
|
|
|
Crane traveling speed(m/min)
|
5~20m/min or 5~30m/min or 5~40m/min.As your request
|
|
|
|
Way to Control
|
Pendant Push Button / Wireless Remote Controller / Cabin
|
|
|
|
Electric hoist lifting speed(m/min)
|
European electric hoist
(5/0.8 m/min double speed) |
CD1 electric hoist(8 m/min)
MD1 electrc hoist(8/0.8 m/min) |
|
|
Hoist trolley speed(m/min)
|
0-20 m/min
|
20m/min or 8/20m/min
|
|
|
Remote control
|
F24-6D/F24-10D or F21-E1B etc, according to your demands
|
|
|
