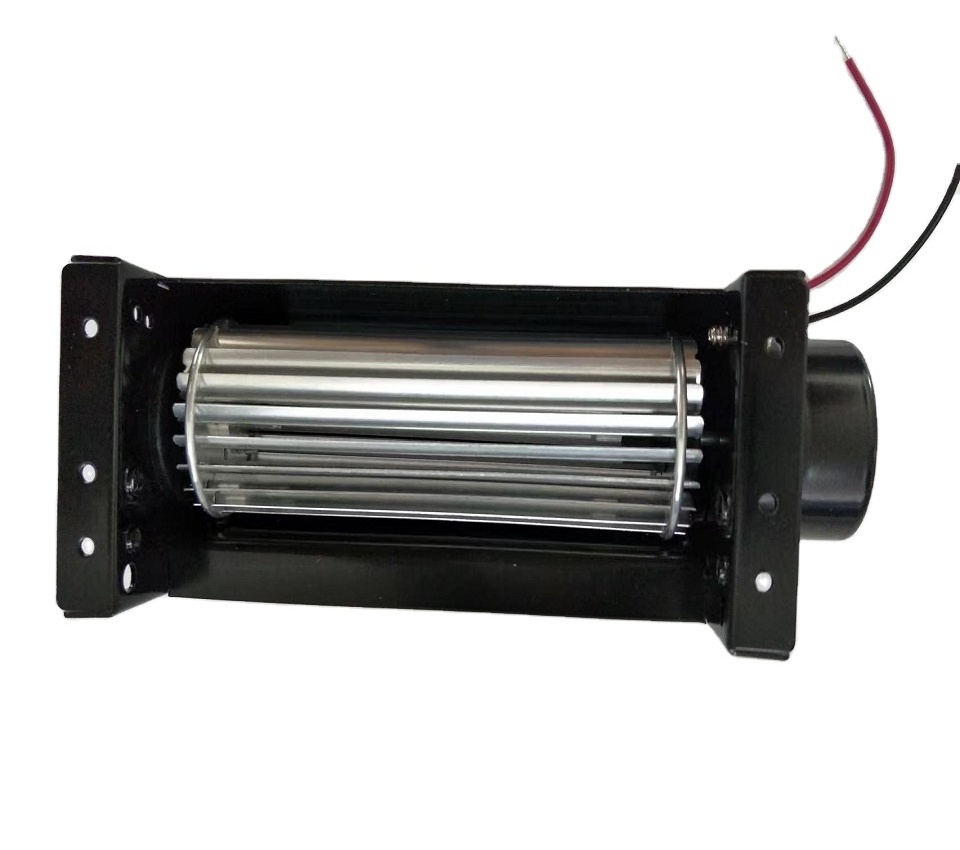

30MM DC 12 /24 V Cross Flow Fan Ventilation Cooling Tangential Fan

30MM DC 12 /24 V Cross Flow Fan Ventilation Cooling Tangential Fan

FOB Reference Price: Get Latest Price

≥1 Pieces

US $15.5

≥1000 Pieces

US $15

≥5000 Pieces

US $12.99

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

After-sales Service Provided:: Video technical support

Place of Origin:: Guangdong, China

Brand Name:: FH

Voltage:: 12/24V/48V, 12V/24V

Product name:: DC 12V 24V Cross Flow Fan

Size:: 132 x 48 x 50 mm

Bearing Type:: Dual Ball Bearing

Motor:: DC Brushless Motor

Material:: Aluminum Alloy Impeller &Cast Iron Frame

Application:: Industrial Equipment,Home Appliance

Usage:: High Pressure Blowing

Expected Life:: 50,000 hours

Motor type:: BLDC Motor

Quick Details

Applicable Industries:: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company

Electric Current Type:: DC

Mounting:: FREE STANDING

After-sales Service Provided:: Video technical support

Place of Origin:: Guangdong, China

Brand Name:: FH

Voltage:: 12/24V/48V, 12V/24V

Product name:: DC 12V 24V Cross Flow Fan

Size:: 132 x 48 x 50 mm

Bearing Type:: Dual Ball Bearing

Motor:: DC Brushless Motor

Material:: Aluminum Alloy Impeller &Cast Iron Frame

Application:: Industrial Equipment,Home Appliance

Usage:: High Pressure Blowing

Expected Life:: 50,000 hours

Motor type:: BLDC Motor

Product Description

Product Name	DC Cross Flow Fan/DC tangential Fan Blower
Series	30 MM Impeller diameter series
Bearing type	Ball bearing
Material	Impeller:Aluminum Alloy , Frame:Steel +Aluminum Alloy
Voltage	12V/ 24V
Package	Carton box,we can also according to the requirements of customers.

Product description:

Product dimension: 132 x 48 x 50 mm
Fan voltage: dc 12V
Fan speed: 3200 RPM
Fan air flow rate: 22CFM
Rated current: 0.15A
Fan air pressure: 1.9 mmAq
Noise level: 35 dB-A
Optional functions: tachometer output or locked rotor alarm signal; PWM speed control
Storage temperature range : -40~+80 C°
Operating temperature range : -10~ +70 C°
Life time： 50000 h ours at 4 0 C°

Details Images

Recommend Products

Product Usage

Packing&Shipping

1. Standard Packaging, inside single package, out carton package.

2. Upon customers' request, but the price is different with neutral packing.
