Quick Details
-
Voltage:
-
110V, 200V, 220V, 230V, 380V, 400V
-
Power:
-
2.2kw - 37kw
-
Weight:
-
1500 KG
-
Dimension(L*W*H):
-
Customized
-
Capacity:
-
100-2000L
-
Sterilization temperature:
-
Adjustable
-
Application:
-
Milk Etc. Liquid Pasteurization
-
Sterilization Temperature:
-
60-99°
-
Processing:
-
Pasteurizer
-
Material:
-
Stainless Steel
-
Sterilization Time:
-
30-60min
-
After-sales Service Provided:
-
No overseas service provided, Online support
-
Advantage:
-
Easy Operation High Efficiency
-
Product name:
-
Yogurt Production Line
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JNBAN
-
Voltage:
-
110V, 200V, 220V, 230V, 380V, 400V
-
Power:
-
2.2kw - 37kw
-
Weight:
-
1500 KG
-
Dimension(L*W*H):
-
Customized
-
Capacity:
-
100-2000L
-
Sterilization temperature:
-
Adjustable
-
Application:
-
Milk Etc. Liquid Pasteurization
-
Sterilization Temperature:
-
60-99°
-
Processing:
-
Pasteurizer
-
Material:
-
Stainless Steel
-
Sterilization Time:
-
30-60min
-
After-sales Service Provided:
-
No overseas service provided, Online support
-
Advantage:
-
Easy Operation High Efficiency
-
Product name:
-
Yogurt Production Line
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation,
Please Send An Inquiry
At The Bottom Of The Page.
Application
Products Description

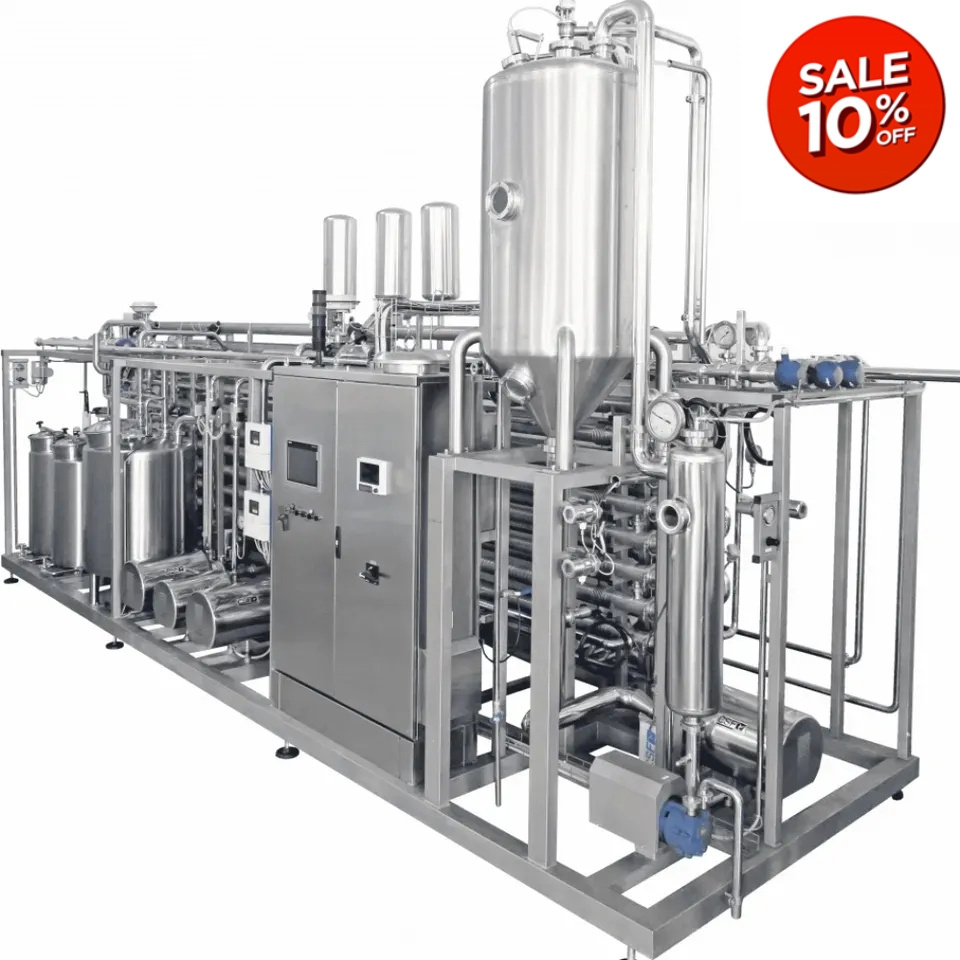

Milk Processing Packaging Plant Yogurt Production Line
The production process of yogurt involves several key steps. Here is a general outline of the process:
Milk Selection: High-quality milk is selected as the primary ingredient for yogurt production. The milk can come from various sources, such as cows, goats, or sheep.
Pasteurization:
The milk is heated to a specific temperature (usually around 70-85°C) to kill any harmful bacteria present in the
raw milk. This process helps to ensure the safety and shelf life of the yogurt.
raw milk. This process helps to ensure the safety and shelf life of the yogurt.
Cooling:
After pasteurization, the milk is rapidly cooled to a temperature suitable for the fermentation process (usually around40-45°C).
Inoculation: A small amount of starter culture, which consists of specific strains of lactic acid bacteria (such as Lactobacillus
bulgaricus and Streptococcus thermophilus), is added to the cooled milk. The starter culture ferments lactose (milk sugar) into
lactic acid, leading to the characteristic tangy flavor and thick texture of yogurt.
Incubation: The milk with the starter culture is placed in a controlled environment, typically in large fermentation tanks or
individual containers. The temperature is maintained around 40-45°C to promote the growth of the lactic acid bacteria. During this
incubation period (usually 4-8 hours), the bacteria consume lactose and produce lactic acid, causing the milk to thicken and form
a gel-like consistency.
Flavoring and Additions: After the desired fermentation time, additional ingredients such as fruit purees, sweeteners, or
flavorings can be added to the yogurt to enhance its taste and variety. This step is optional and depends on the desired yogurt
product.
bulgaricus and Streptococcus thermophilus), is added to the cooled milk. The starter culture ferments lactose (milk sugar) into
lactic acid, leading to the characteristic tangy flavor and thick texture of yogurt.
Incubation: The milk with the starter culture is placed in a controlled environment, typically in large fermentation tanks or
individual containers. The temperature is maintained around 40-45°C to promote the growth of the lactic acid bacteria. During this
incubation period (usually 4-8 hours), the bacteria consume lactose and produce lactic acid, causing the milk to thicken and form
a gel-like consistency.
Flavoring and Additions: After the desired fermentation time, additional ingredients such as fruit purees, sweeteners, or
flavorings can be added to the yogurt to enhance its taste and variety. This step is optional and depends on the desired yogurt
product.
Cooling and Packaging: The yogurt is cooled to stop the fermentation process and preserve its texture. It is then portioned into
individual containers or bulk containers, depending on the packaging requirements. The containers are sealed and labeled for
distribution.
Cold Storage: The packaged yogurt is typically stored in refrigerated conditions to maintain freshness and extend shelf life.
individual containers or bulk containers, depending on the packaging requirements. The containers are sealed and labeled for
distribution.
Cold Storage: The packaged yogurt is typically stored in refrigerated conditions to maintain freshness and extend shelf life.
Product Paramenters
|
Capaciyt
|
Power
|
Stirring motor power
|
Stirring motor speed
|
Weight
|
Tank size
|
|
300L
|
9KW*2
|
0.37W
|
36R/MIN
|
120KG
|
Φ850*750mm
|
|
400L
|
9KW*2
|
0.37W
|
36R/MIN
|
180KG
|
Φ900*750mm
|
|
500L
|
12kw*2
|
0.37W
|
36R/MIN
|
220KG
|
Φ1000*850mm
|
|
600L
|
12kw*2
|
0.37W
|
36R/MIN
|
250KG
|
Φ1000*750mm
|
|
700L
|
15kw*2
|
0.75kw
|
36R/MIN
|
280KG
|
Φ1000*950mm
|
|
800L
|
15kw*2
|
0.75kw
|
36R/MIN
|
320KG
|
Φ1100*850mm
|
|
1000L
|
12kw*4
|
0.75kw
|
36R/MIN
|
380KG
|
Φ1200*900mm
|
|
2000L
|
18kw*4
|
1.5kw
|
36R/MIN
|
420KG
|
Φ1300*1000mm
|
FAQ
Q:
Where is Your Factory? How Can I Visit Your Factory?
A:Our Factory is Located on WenZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer
picture for you. If chance, we can take video online and show u.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check company from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L
A:Our Factory is Located on WenZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer
picture for you. If chance, we can take video online and show u.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check company from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L
