Quick Details
-
Warranty:
-
1years
-
Brand Name:
-
AHEAD
-
Model Number:
-
AW500/AW500-S/AW500UL
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
19W
-
Structure:
-
Centrifugal pump
-
Cable Length:
-
50cm in normal and can be customsize every length
-
Outlet Size:
-
12MM
-
Power:
-
19W, 19W
-
Rated voltage(v):
-
DC 12v 24v
-
Rated current(mA):
-
1.5-2A
-
Gas flow(L/min):
-
12
-
Head(Lift):
-
5M
-
Input/Output caliber(mm):
-
17mm/12mm
-
Feature:
-
10000~20000hours
-
Life time:
-
0~ 60℃
-
Weight:
-
240g
Quick Details
-
Application:
-
Drinking water treatment, Family Homes, Washing and Cleaning, Wastewater Transport and Flood Control, Water Treatment Solutions
-
Pressure:
-
High Pressure
-
Voltage:
-
6V/12V/24V
-
Warranty:
-
1years
-
Brand Name:
-
AHEAD
-
Model Number:
-
AW500/AW500-S/AW500UL
-
Place of Origin:
-
Shandong, China
-
Horsepower:
-
19W
-
Structure:
-
Centrifugal pump
-
Cable Length:
-
50cm in normal and can be customsize every length
-
Outlet Size:
-
12MM
-
Power:
-
19W, 19W
-
Rated voltage(v):
-
DC 12v 24v
-
Rated current(mA):
-
1.5-2A
-
Gas flow(L/min):
-
12
-
Head(Lift):
-
5M
-
Input/Output caliber(mm):
-
17mm/12mm
-
Feature:
-
10000~20000hours
-
Life time:
-
0~ 60℃
-
Weight:
-
240g
Related Products
|

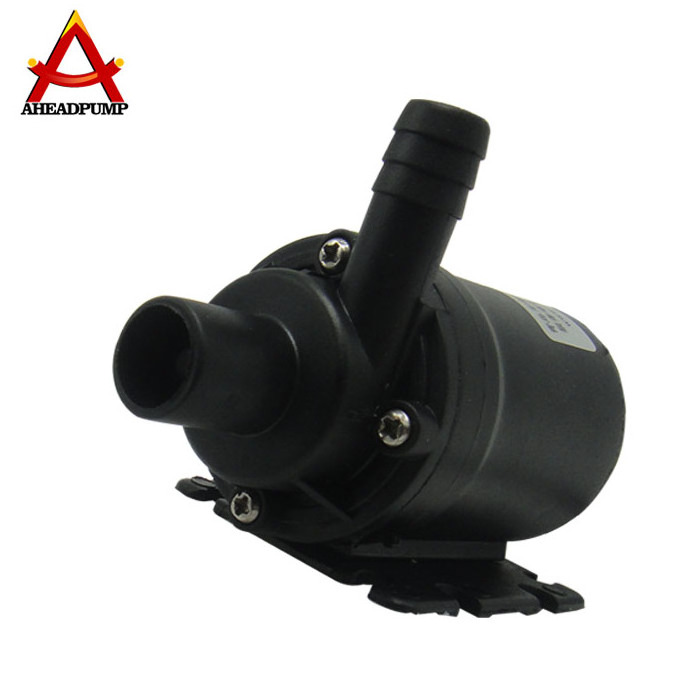

Portable small electric 12 volt high pressure high volume centrifugal jet booster water pump
|
|
|
|
Our products are widely used in the shower, solar pumping systems, aquarium pumps, submersible pumps, medical equipment and other products.
|
|
|
|
Model
|
AW500
|
|
|
Material
|
engineering plastic
|
|
|
Water temperature
|
0~60℃ hot heat water pump / cooler water pump
|
|
|
Voltage( up to customers)
|
DC 12V/ DC 24V
|
|
|
Flow channel characterristic
|
one side in,one side out
|
|
|
Current(A)±15%
|
920mA
|
|
|
Power(W)±15%
|
19W / 38W
|
|
|
Flow(L/H)±15%
|
720L/H / 800L/H / 850L/H
|
|
|
Lift(m)
|
3M / 4M / 5M / 6M
|
|
|
Suction caliber(mm)
|
17 mm
|
|
|
Output caliber(mm)
|
10 mm
|
|
|
Noise(dB)
|
≤35 dB
|
|
|
Dimension(mm)
|
77*63*49 mm
|
|
|
Weight(g)
|
200 g
|
|
|
Life(times)
|
one carton with 50 pcs, 400*345*185(mm),11kg/carton. Bubble bag for each pump, strong package for long-distance transport.
|
|
|
Package
|
brushless water pump, high quality,long life,small dimension,high pressure,quiet,big flow,easy installation, price competitive.
|
|
