2. The top head or bottom tank can be up and down by cylinder.
3. High corrosion resistance PH:1-13, the material can be stainless steel 304, 316L and titanium. And also can be PTFE coating inside.
- Product Details
- {{item.text}}
Quick Details
-
Max. Loading Capacity:
-
20000L
-
Weight (KG):
-
1000 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AOWEI
-
Voltage:
-
120V/220V/380V/440V
-
Dimension(L*W*H):
-
TBD
-
Power (kW):
-
3 kW
-
Certification:
-
CE
Quick Details
-
Barrel Volume (L):
-
200L-20000L
-
Max. Loading Volume (L):
-
20000 L
-
Range of Spindle Speed(r.p.m):
-
60 - 2999 r.p.m
-
Max. Loading Capacity:
-
20000L
-
Weight (KG):
-
1000 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AOWEI
-
Voltage:
-
120V/220V/380V/440V
-
Dimension(L*W*H):
-
TBD
-
Power (kW):
-
3 kW
-
Certification:
-
CE
Product Overview

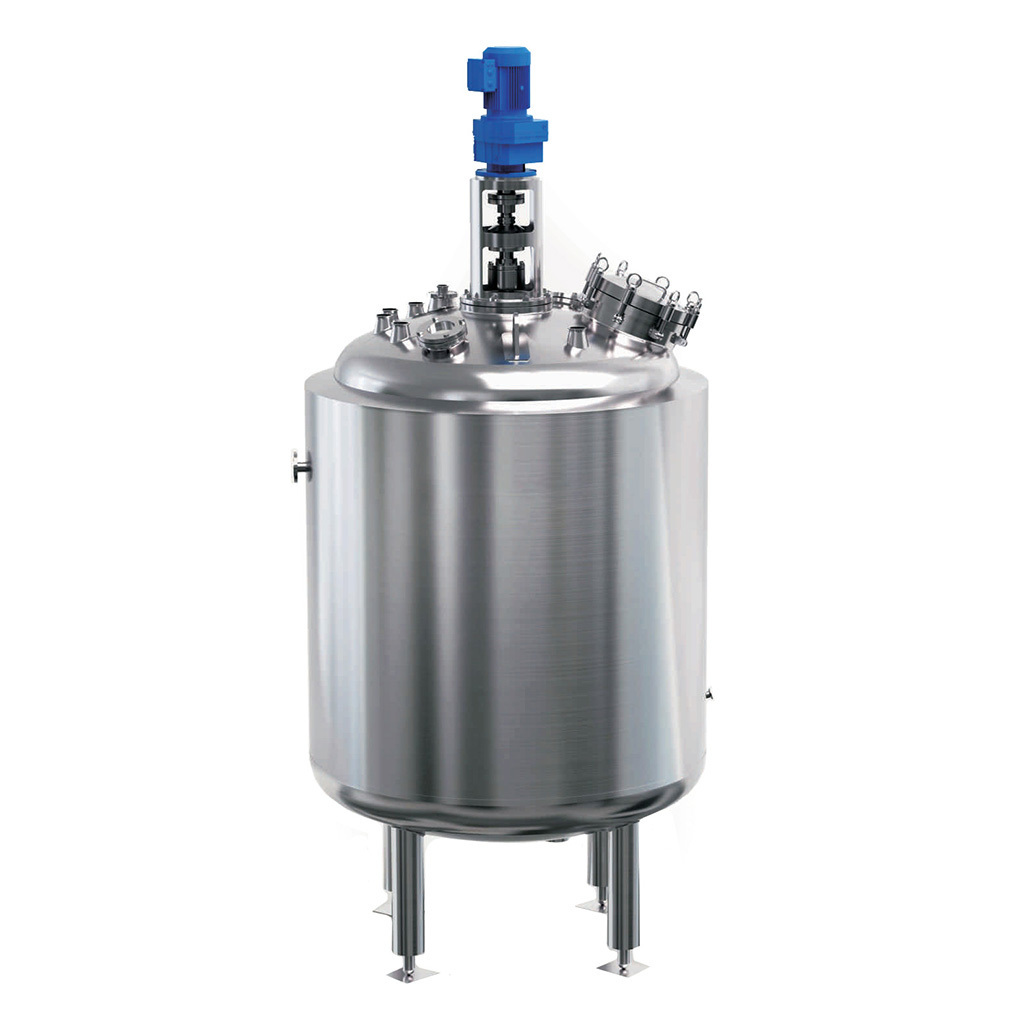

Multi Function Mixing Tank
Multi Function Mixing Tank
is suitable for manufacturing various liquid products (such as detergent, shampoo, shower gel etc). It
integrates mixing, homogenizing, heating, cooling, pump discharge finished products and defoaming (optional) functions. It is the
ideal equipment for liquid products in domestic and international factories.
integrates mixing, homogenizing, heating, cooling, pump discharge finished products and defoaming (optional) functions. It is the
ideal equipment for liquid products in domestic and international factories.
FEATURES AT A GLANCE
1. It can treatment lots of material. And can heating or cooling the material that inside the tank.
2. The top head or bottom tank can be up and down by cylinder.
3. High corrosion resistance PH:1-13, the material can be stainless steel 304, 316L and titanium. And also can be PTFE coating inside.
2. The top head or bottom tank can be up and down by cylinder.
3. High corrosion resistance PH:1-13, the material can be stainless steel 304, 316L and titanium. And also can be PTFE coating inside.
The bottom tank can be up and down by the cylinder (see the left photo).
And also we can do top head up and down.
And also we can do top head up and down.
PRODUCT SPECIFICATIONS
|
|
200L
|
500L
|
1000L
|
2000L
|
10000L
|
20000L
|
|||||
|
Diameter(mm)
|
500
|
700
|
900
|
1200
|
1800
|
2300
|
|||||
|
Heigh(mm)
|
2300
|
2650
|
2900
|
3800
|
5250
|
6550
|
|||||
|
Inner pressure(Mpa)
|
0.2MPA
|
125Ton
|
|
|
|
|
|||||
|
Layer pressure(Mpa)
|
0.3MPA
|
96kN
|
|
|
|
|
|||||
|
Stirring paddle No.
|
1-3 pcs
|
96kN
|
|
|
|
|
|||||
|
Stirring speed(r/min)
|
40-2990rpm
|
60kN
|
|
|
|
|
|||||
|
Motor power(kw)
|
0.75
|
1.1
|
1.5
|
3
|
7.5
|
12
|
|||||
