Quick Details
-
Weight (KG):
-
350
-
Voltage:
-
220-380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OCPACK
-
Dimension(L*W*H):
-
(L)2860*(W)755*(H)1540mm
-
Modle packaging type:
-
Coffee bean packing machine
-
Measurement rang:
-
50-500ml
-
Packing speed:
-
30-80bags/min
-
Film roll width:
-
Max.320mm
-
Film roll length:
-
Max.200mm
-
The biggest roll diameter:
-
Max.300mm
-
Film Thinkness:
-
0.04-0.08mm
-
Packaging film material:
-
OPP/CPP,OPP/CE,MST/PE, PET ETC.
-
Power:
-
220V,50/60HZ,2.2KW
-
Net weight/Gross Weight:
-
350kg/430kg
Quick Details
-
Function:
-
FILLING, Labeling, Sealing, SLITTING, Wrapping
-
Packaging Type:
-
Bags, CANS, case, Film, Foil, Pouch, Stand-up Pouch
-
Packaging Material:
-
Paper, Plastic, Heat-sealing film
-
Weight (KG):
-
350
-
Voltage:
-
220-380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OCPACK
-
Dimension(L*W*H):
-
(L)2860*(W)755*(H)1540mm
-
Modle packaging type:
-
Coffee bean packing machine
-
Measurement rang:
-
50-500ml
-
Packing speed:
-
30-80bags/min
-
Film roll width:
-
Max.320mm
-
Film roll length:
-
Max.200mm
-
The biggest roll diameter:
-
Max.300mm
-
Film Thinkness:
-
0.04-0.08mm
-
Packaging film material:
-
OPP/CPP,OPP/CE,MST/PE, PET ETC.
-
Power:
-
220V,50/60HZ,2.2KW
-
Net weight/Gross Weight:
-
350kg/430kg
Products Description
|
Technical specifications
|
|
|
|
|
||||
|

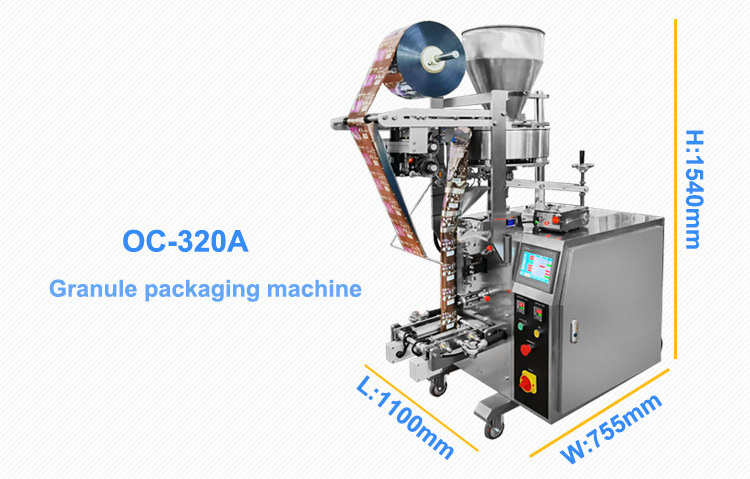

MODEL
|
OC-320A
|
OC-420AZ
|
OC-520AZ
|
|
||||
|
FILLING RANG
|
50~800ML
|
150~1500ML
|
150~2000ML
|
|
||||
|
PACKAGING SPEED
|
30~80BAGS/MIN
|
5~60BAGS/MIN
|
10~50BAGS/MIN
|
|
||||
|
BAG WIDTH
|
50~150MM
|
50~200MM
|
80~250MM
|
|
||||
|
BAG LENGTH
|
40~280MM
|
80~300MM
|
80~350MM
|
|
||||
|
FILM WIDTH
|
MAX.320MM
|
MAX.420MM
|
MAX.520MM
|
|
||||
|
POWER
|
220V,50/60HZ/1.2KW
|
220V,50/60HZ/2.2KW
|
220V,50/60HZ/3KW
|
|
||||
|
MACHINE WEIGHT
|
550KG
|
650KG
|
750KG
|
|
||||

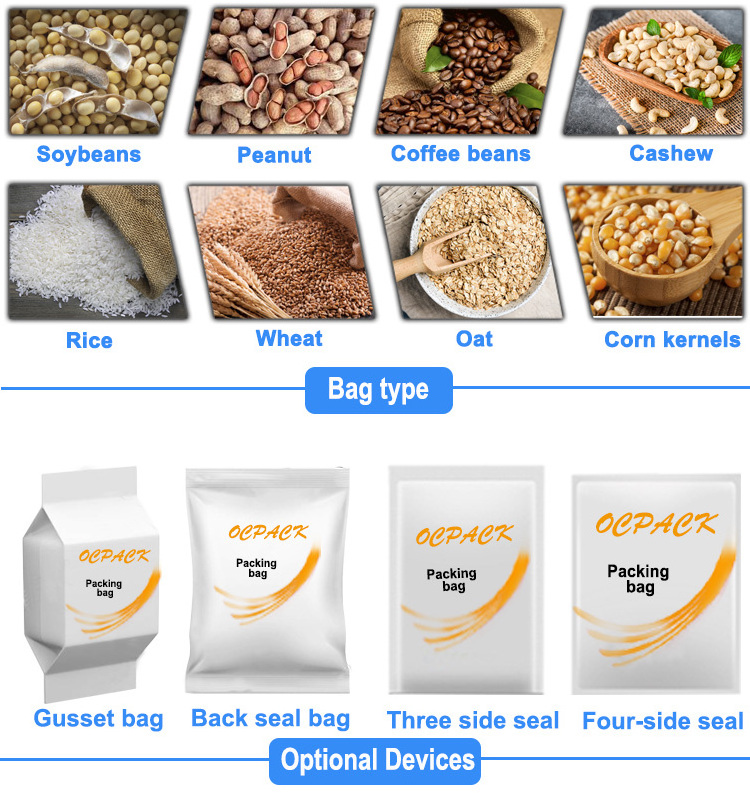

Application
>What do you want to pack?
Suitable for packaging granular objects such as soybeans, peanuts, coffee beans, cashews, rice, wheat, oats, corn kernels, etc.

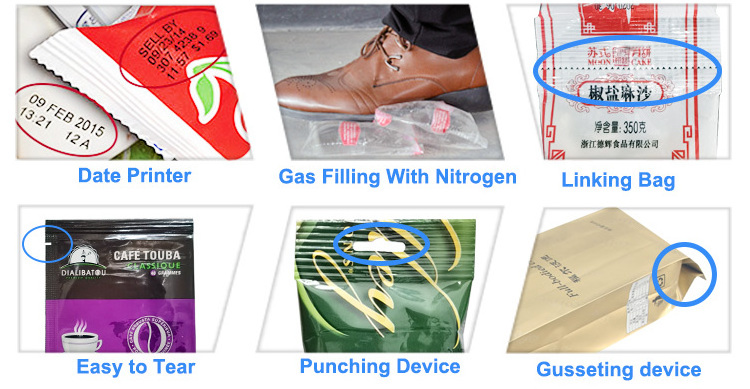

Optional Devices
The packaging machine has date coding,fills the package with nitrogen,makes the linking bag,makes the easy tearing and pinches the package.

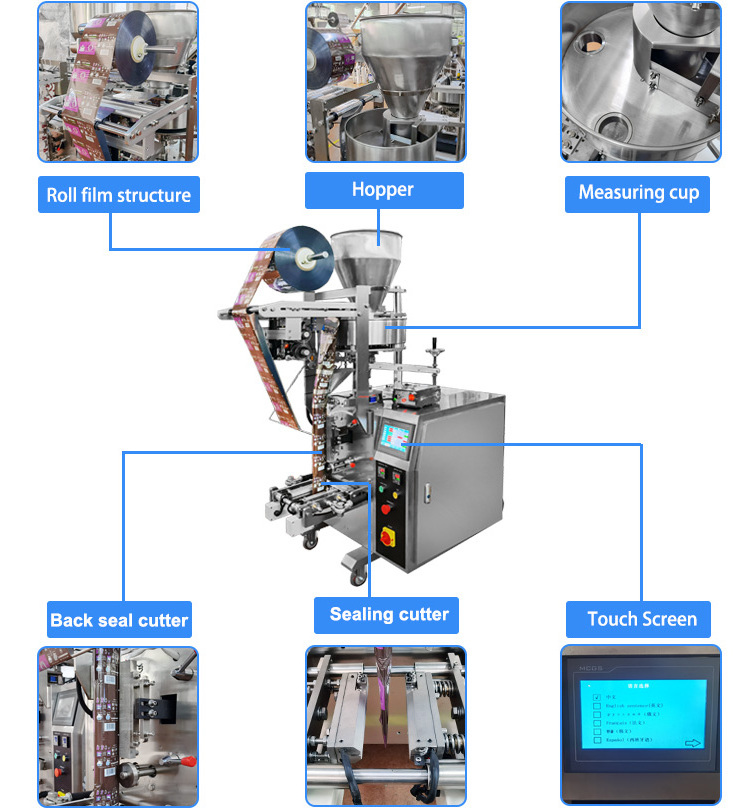

Machine display
Smart screen
Brand:
Weinview
or customized according to your needs
Language: You can choose seven languages, for example:
English,Russian, Spanish, French, etc. You can also customize the language as needed.
Function: You can set and change the weight of the packaging material and the length of the bag.
Cup metering device
Material: Food Grade 304SUS+ plastic
Quantity: 4 pcs Volume
Stainless Steel
Size: 10-500ml
* Using volume conversion principle technology, simple and small error range
* Automatic filling goods if full will be stop filling,not need people maual.
*It suitable for all small granule products,like rice, white sugar, beans, washing powder,candy
Bag maker
*The bag making machine is made of 304 stainless steel and
driven by a servo.
*The packaging film ispulled into the bag
making machine by friction.
*The packaging is simple and beautiful,
with a humanized design.
Different bag making equipment can be replaced according to different bag widths.
One machine can pack bags of various widths.
Cutting & sealing parts
High speed of fine and clean cutting and sealing bags.
*Positioned stop function avoides sticking blades and wasting materials.
*According to customer needs,the bag types can be changed：back seal, three sides seal, four side seal.
*Positioned stop function avoides sticking blades and wasting materials.
*According to customer needs,the bag types can be changed：back seal, three sides seal, four side seal.
Tell us your requirements, tell us your product information,
we will have a professional staff to provide you with a most suitable packaging solution!
You can also send us samples, we can provide free trial packaging service!
