Quick Details
-
Input Voltage:
-
160~800Vdc
-
Output Voltage:
-
220/380, 230/400Vac
-
Output Current:
-
45A
-
Output Frequency:
-
50/60Hz, 50Hz/60Hz
-
Output Type:
-
Three Phase
-
Inverter Efficiency:
-
99.9%
-
Application:
-
Solar Power System Home
-
Product name:
-
Deye Hybrid Solar Inverter
-
Size:
-
422/658/281mm
-
Certificate:
-
ISO,CE, TUV,CQC,SAA
-
Warranty:
-
5 Years
-
Weight:
-
36.8kgs
-
Battery type:
-
Lead Acid \ Lithium
-
Battery Voltage Range:
-
40~60V
-
Charging Strategy for Li-Ion Battery:
-
Self-adaption to BMS
-
OEM:
-
Accept OEM
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Deye
-
Model Number:
-
SUN-8/10/12 K-SG04LP3-EU
-
Input Voltage:
-
160~800Vdc
-
Output Voltage:
-
220/380, 230/400Vac
-
Output Current:
-
45A
-
Output Frequency:
-
50/60Hz, 50Hz/60Hz
-
Output Type:
-
Three Phase
-
Inverter Efficiency:
-
99.9%
-
Application:
-
Solar Power System Home
-
Product name:
-
Deye Hybrid Solar Inverter
-
Size:
-
422/658/281mm
-
Certificate:
-
ISO,CE, TUV,CQC,SAA
-
Warranty:
-
5 Years
-
Weight:
-
36.8kgs
-
Battery type:
-
Lead Acid \ Lithium
-
Battery Voltage Range:
-
40~60V
-
Charging Strategy for Li-Ion Battery:
-
Self-adaption to BMS
-
OEM:
-
Accept OEM
Technical Specifications
|
Model
|
|
SUN-8K-SG04LP3
|
SUN-10K-SG04LP3
|
SUN-12K-SG04LP3
|
||||
|
Battery Input Data
|
|
|
|
|
||||
|
Battery Type
|
|
Lead-acid or Li-lon
|
|
|
||||
|
Battery Voltage Range (V)
|
|
40~60V
|
|
|
||||
|
Max. Charging Current (A)
|
|
190A
|
210A
|
240A
|
||||
|
Max. Discharging Current (A)
|
|
190A
|
210A
|
240A
|
||||
|
Charging Curve
|
|
3 Stages / Equalization
|
|
|
||||
|
External Temperature Sensor
|
|
Optional
|
|
|
||||
|
Charging Strategy for Li-Ion Battery
|
|
Self-adaption to BMS
|
|
|
||||
|
PV String Input Data
|
|
|
|
|
||||
|
Max. DC Input Power (W)
|
|
10400W
|
13000W
|
15600W
|
||||
|
PV Input Voltage (V)
|
|
550V (150V~800V)
|
|
|
||||
|
MPPT Range (V)
|
|
200V-650V
|
|
|
||||
|
Start-up Voltage (V)
|
|
160V
|
|
|
||||
|
PV Input Current (A)
|
|
13A+13A
|
26A+13A
|
26A+13A
|
||||
|
No.of MPPT Trackers
|
|
2
|
|
|
||||
|
No.of Strings Per MPPT Tracker
|
|
1+1
|
2+1
|
2+1
|
||||
|
AC Output Data
|
|
|
|
|
||||
|
Rated AC Output and UPS Power (W)
|
|
8000W
|
10000W
|
12000W
|
||||
|
Max. AC Output Power (W)
|
|
8800W
|
11000W
|
12000W
|
||||
|
Peak Power (off grid)
|
|
2 times of rated power, 10 S
|
|
|
||||
|
AC Output Rated Current (A)
|
|
12A
|
15A
|
18A
|
||||
|
Max. AC Current (A)
|
|
18A
|
23A
|
27A
|
||||
|
Max. Continuous AC Passthrough (A)
|
|
50A
|
|
|
||||
|
Output Frequency and Voltage
|
|
50/60Hz; 230/400Vac (Three phase)
|
|
|
||||
|
Grid Type
|
|
Current Harmonic Distortion
|
|
|
||||
|
Current Harmonic Distortion
|
|
THD<3% (Linear load<1.5%)
|
|
|
||||
|
Efficiency
|
|
|
|
|
||||
|
Max. Efficiency
|
|
97.60%
|
|
|
||||
|
Euro Efficiency
|
|
97.00%
|
|
|
||||
|
MPPT Efficiency
|
|
99.90%
|
|
|
||||
|
Protection
|
|
|
|
|
||||
|
PV Input Lightning Protection
|
|
Integrated
|
|
|
||||
|
Anti-islanding Protection
|
|
Integrated
|
|
|
||||
|
PV String Input Reverse Polarity Protection
|
|
Integrated
|
|
|
||||
|
Insulation Resistor Detection
|
|
Integrated
|
|
|
||||
|
Residual Current Monitoring Unit
|
|
Integrated
|
|
|
||||
|
Output Over Current Protection
|
|
Integrated
|
|
|
||||
|
Output Shorted Protection
|
|
Integrated
|
|
|
||||
|
Output Over Voltage Protection
|
|
Integrated
|
|
|
||||
|
Surge protection
|
|
DC Type II / AC Type II
|
|
|
||||
|
Certififications and Standards
|
|
|
|
|
||||
|
Grid Regulation
|
|
IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
|
|
|
||||
|
Safety EMC / Standard
|
|
IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
|
|
|
||||
|
General Data
|
|
|
|
|
||||
|
Operating Temperature Range (℃ )
|
|
-25~60℃ , >45℃ Derating
|
|
|
||||
|
Cooling
|
|
Smart cooling
|
|
|
||||
|
Noise (dB)
|
|
<30 dB
|
|
|
||||
|
Communication with BMS
|
|
RS485; CAN
|
|
|
||||
|
Weight (kg)
|
|
36.8
|
|
|
||||
|
Size (mm)
|
|
422W×658H×281D
|
|
|
||||
|
Protection Degree
|
|
IP65
|
|
|
||||
|
Installation Style
|
|
Wall-mounted
|
|
|
||||
|
Warranty
|
|
5 years
|
|
|
||||

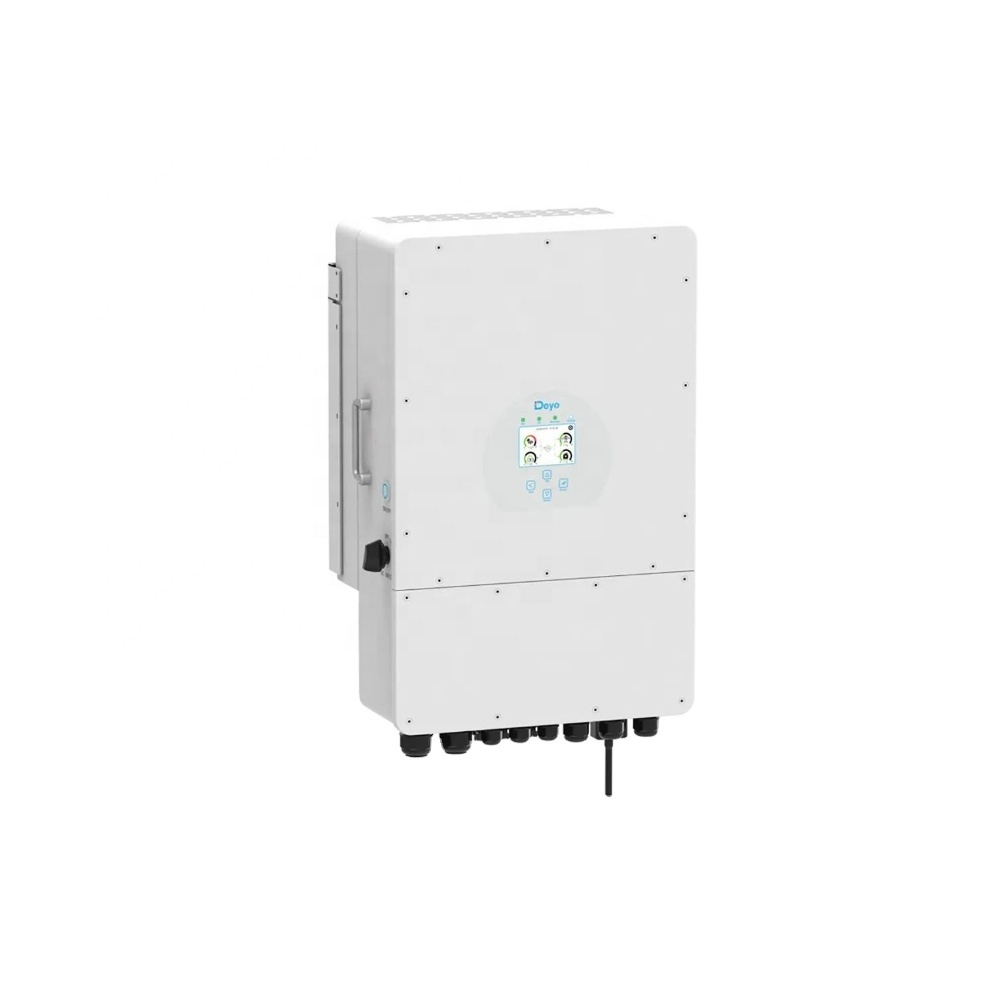

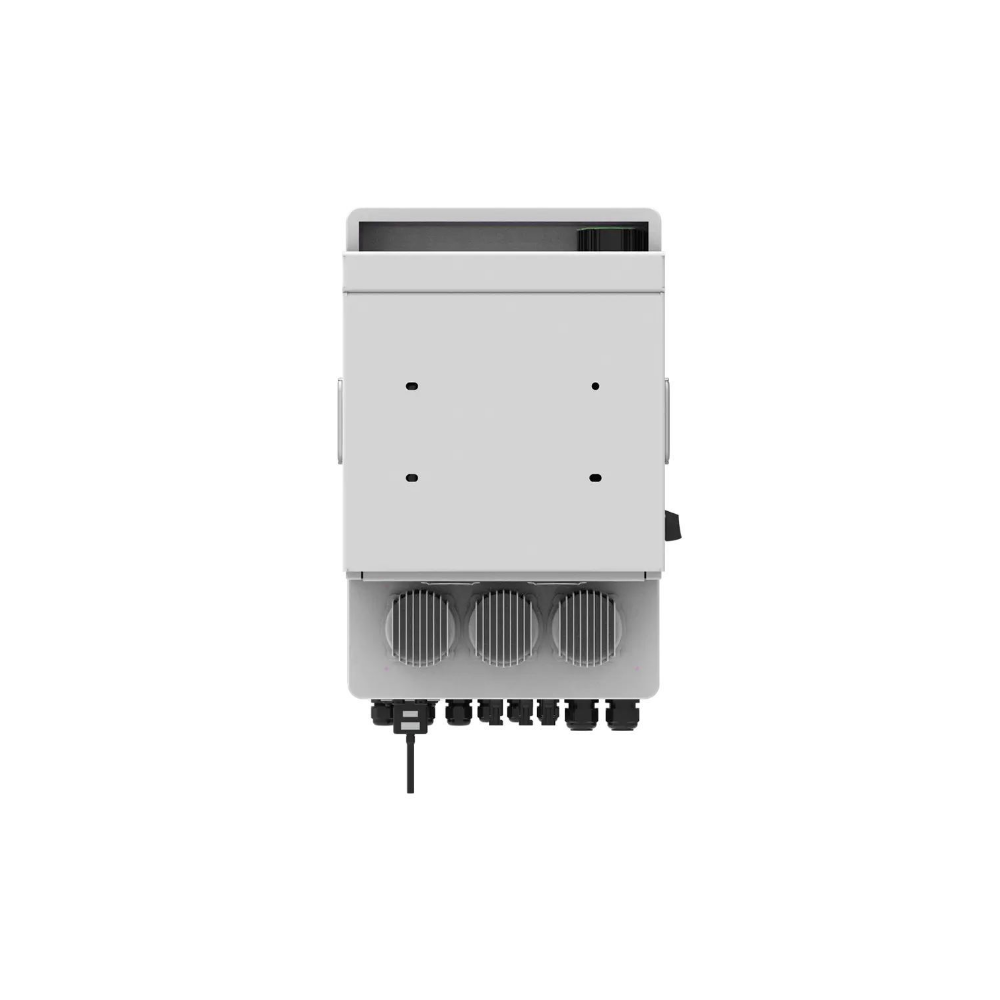

Pictures Shows
Why Choose Deye Solar inverters?
Italy,Belgium, Spain, Netherland, France, Vietnam, South Africa, Pakistan, Japan, Korea, China etc.) with currently 9 own
subsidiaries in Shenzhen, Wuxi, Dongguan, Xinyang, Australia, India, Germany, UK and Italy.
2.Your Best Choice For AC Storage Hybrid Solutions and String Inverters
3.All Deye Solar inverters can be found in PV Solar system
4.All Deye Solar inverters and distributors are insured by US CHUBB Insurance corporation company
5.All Deye Solar inverters are equipped with Standard WiFi communication
6.Deye Solar inverters are equipped with 25-year data storage capabiliity (Internal SD Card)
Certifications
Feature
1. Pure sine wave solar inverter(on/off grid)
2. Inverter running without battery
3. Output power factor 1.0
4. High PV input voltage range(90~500VDC)
2. Inverter running without battery
3. Output power factor 1.0
4. High PV input voltage range(90~500VDC)
5. WIFI&GPRS available for IOS and Android
6. Built-in anti-dusk kit for harsh enviroment
7. Built-in 160A(for 7.2KW/8.2KW)/180A(for 10.2KW)MPPT solar charge
8. Smart battery charge design to optimize battery life
9. One-click restoration to factory settings
10. Dual output
11. Built-in lithium battery automatic activation
12. Touch butto
6. Built-in anti-dusk kit for harsh enviroment
7. Built-in 160A(for 7.2KW/8.2KW)/180A(for 10.2KW)MPPT solar charge
8. Smart battery charge design to optimize battery life
9. One-click restoration to factory settings
10. Dual output
11. Built-in lithium battery automatic activation
12. Touch butto
Projects Cases
Our Factory
Ningbo Deye Inverter Technology Co., Ltd
is dedicated to providing complete photovoltaic power system solutions, including
residential and commercial power plants solutions. Also, Deye offers the right device for each application: for all module types,
for grid-connection and stand-alone grids as well hybrid inverter system, for small house systems and commercial systems in the
Megawatt range. Among them, PV grid-connected inverter power range from 1.5-110kW, Hybrid inverter 3kW-12kW, and microinverter
300W-2000W.
residential and commercial power plants solutions. Also, Deye offers the right device for each application: for all module types,
for grid-connection and stand-alone grids as well hybrid inverter system, for small house systems and commercial systems in the
Megawatt range. Among them, PV grid-connected inverter power range from 1.5-110kW, Hybrid inverter 3kW-12kW, and microinverter
300W-2000W.
Packing photos
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Northern Europe(35.00%),North America(10.00%),South
America(10.00%),Southeast Asia(5.00%),Western Europe(10.00%),Southern Europe(8.00%),Eastern Europe(5.00%), Mid
East(5.00%),Central America(5.00%),Africa(2.00%),Oceania(2.00%),Eastern Asia(2.00%),South Asia(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
wind turbine, permanent magnet generator, wind turbine system,wind turbine system related products
4. why should you buy from us not from other suppliers?
Brand agent, stable product supply chain and transportation logistics partner, rich export experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;
We are based in Jiangsu, China, start from 2011,sell to Northern Europe(35.00%),North America(10.00%),South
America(10.00%),Southeast Asia(5.00%),Western Europe(10.00%),Southern Europe(8.00%),Eastern Europe(5.00%), Mid
East(5.00%),Central America(5.00%),Africa(2.00%),Oceania(2.00%),Eastern Asia(2.00%),South Asia(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
wind turbine, permanent magnet generator, wind turbine system,wind turbine system related products
4. why should you buy from us not from other suppliers?
Brand agent, stable product supply chain and transportation logistics partner, rich export experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;
