Quick Details
-
Output Power:
-
7kw 11kW 22kW
-
Input Voltage:
-
AC 110-380V
-
Standard:
-
Type 2 Type 1 GBT
-
IP Grade:
-
IP55
-
Rated current:
-
16A/32A
-
Rated voltage:
-
AC 110-380V
-
Pin Material:
-
Copper Alloy, Silver Plating
-
Warranty:
-
12 Months
-
Operating Temperature:
-
-30°C ~+50°C
-
Withstand Voltage:
-
2000V
-
Mechanical:
-
No-Load Plug In /Pull Out >10000 Times
-
Insulation Resistance:
-
>1000MΩ(DC500V)
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Model Number:
-
RDC-EV-S
-
Brand Name:
-
NA
-
Output Power:
-
7kw 11kW 22kW
-
Input Voltage:
-
AC 110-380V
-
Standard:
-
Type 2 Type 1 GBT
-
IP Grade:
-
IP55
-
Rated current:
-
16A/32A
-
Rated voltage:
-
AC 110-380V
-
Pin Material:
-
Copper Alloy, Silver Plating
-
Warranty:
-
12 Months
-
Operating Temperature:
-
-30°C ~+50°C
-
Withstand Voltage:
-
2000V
-
Mechanical:
-
No-Load Plug In /Pull Out >10000 Times
-
Insulation Resistance:
-
>1000MΩ(DC500V)

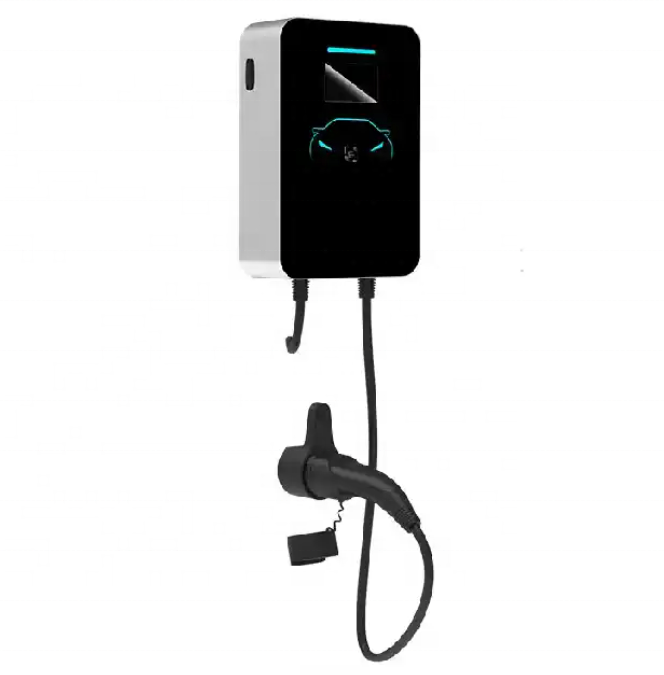

RDC EV CHARGER
Products Description
|
Standard
|
Type 2 Type 1 GBT 7kw ,11kw ,22kw
|
|
|
|
Rated Current
|
16Amp
|
32Amp
|
|
|
Operation Voltage
|
AC 110V-380V
|
|
|
|
Insulation Resistance
|
>1000MN(DC 500V)
|
|
|
|
Withstand Voltage
|
2000V
|
|
|
|
Pin Material
|
Copper Alloy, Silver Plating
|
|
|
|
Shell Material
|
Thermoplastic,Flame Retardant Grade UL94 V-0
|
|
|
|
Mechanical Life
|
No-Load Plug In /Pull Out > 10000 Times
|
|
|
|
Contact Resistance
|
0.5mΩ Max
|
|
|
|
Terminal Temperature Rise
|
<50K
|
|
|
|
Operating Temperature
|
-30°C~+50℃
|
|
|
|
Impact Insertion Force
|
>300N
|
|
|
|
Waterproof Degree
|
IP55
|
|
|
|
Cable Protection
|
Reliability of materials,antiflaming.pressure-resistantabrasion resistance,impact resistance and high oil
|
|
|
|
Certification
|
TUV,ULCE Approved
|
|
|
