Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YOUNGSUN
-
Dimension(L*W*H):
-
335*150*145mm
-
Weight:
-
4.05 KG
-
Certification:
-
CE Certificate
-
Tension Force:
-
60-3000N (adjustable)
-
Sealing:
-
Friction welding
-
Charging Time:
-
90mins
-
Strap Size:
-
W: 16-19mm, T: 0.8-1.2mm
Quick Details
-
Packaging Type:
-
Cartons
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YOUNGSUN
-
Dimension(L*W*H):
-
335*150*145mm
-
Weight:
-
4.05 KG
-
Certification:
-
CE Certificate
-
Tension Force:
-
60-3000N (adjustable)
-
Sealing:
-
Friction welding
-
Charging Time:
-
90mins
-
Strap Size:
-
W: 16-19mm, T: 0.8-1.2mm
Product Description

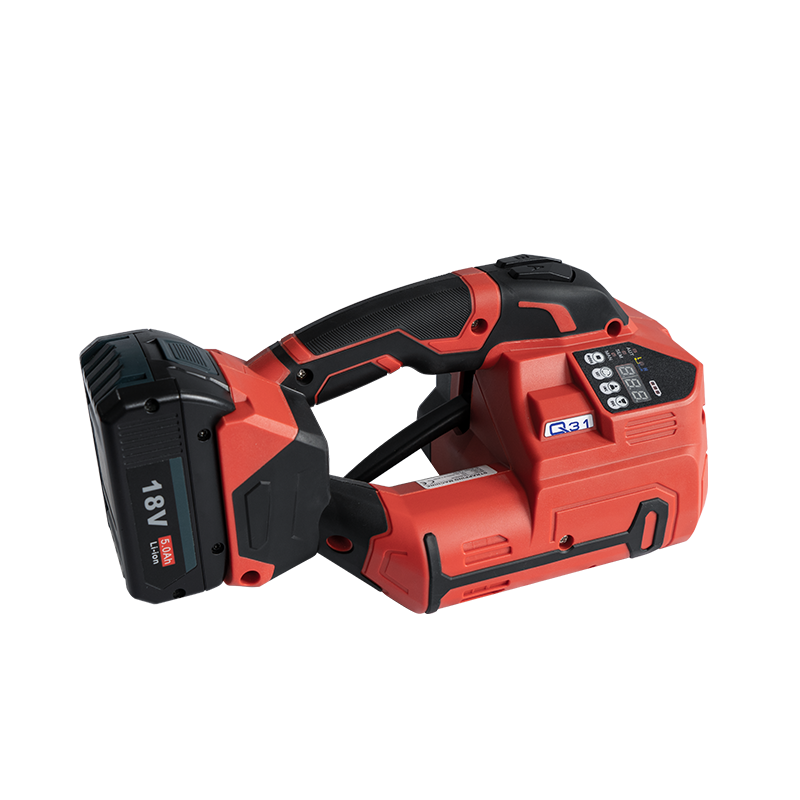

Q31-19
Handheld Electric Plastic Strapping Packing Tool Battery Powered Strapping Tool
Widely used in paper, aluminum, textile,steel,logistics,farm,che
mical,metal industries and so on.
Detailed Images
Our advantage:the quality index is far ahead of the competitors in the industry.
1.Once charged,up to 700-750 straps can be worked
2.Maximum tension force 5000N,and short welding time only 1S.
3.Working mode: Automatic. Semi-auto,Manual optional.
4.No handle,easy to feed strap.
1.Once charged,up to 700-750 straps can be worked
2.Maximum tension force 5000N,and short welding time only 1S.
3.Working mode: Automatic. Semi-auto,Manual optional.
4.No handle,easy to feed strap.
Size Information
|
Model
|
|
Q31-19(with handle)
|
|
||
|
Strap Specification
|
|
Width
|
16-19mm
|
||
|
Apply straps Width
|
|
Thickness
|
0.8-1.2mm
|
||
|
Apply straps Thickness
|
|
Straps
|
PP/PET
|
||
|
MODE SELECTION
|
|
Fully Automatic (AUT), Semi-Automatic (SEM), Manual (MAN)
|
|
||
|
STRAP STRENGTH
|
|
NORMAL MODE (H- -)
|
800-3000N (adjustable, the
tension force of the tension wheel can reach 5500N) |
||
|
|
|
TENSION FORCE:
SOFT MODE (L- -) |
600-2000N (adjustable, the
tension force of the tension wheel can reach 3000N) Grade: 1-9 |
||
|
|
|
TIGHTENING SPEED
|
100-200mm/s
|
||
|
|
|
WELDING STRENGTH
|
About 75-80% of the strength of PET Strap. (depending on the quality of the straps)
|
||
|
Power Supply
|
BATTERY
|
MODEL
|
Lithium battery 18V/5.0Ah (4.0Ah)
|
||
|
Maximum tension force (N)
|
|
CHARGE TIME
|
Charger 90minutes can strap 700 loops
|
||
|
Tighten speed (m/min)
|
|
CHARGE(OPTIONAL)
|
Voltage 110V/220V
|
||
|
Welding time (s)
|
|
BATTERY WEIGHT
|
0.6kg
|
||
|
Cooling time(S)
|
|
AGE
|
More than a year if using correctly
|
||
|
Control system
|
|
BATTERY(OPTIONAL)
|
Imported LG cell battery/Bosch battery
|
||
|
Module selection
|
CHARGER
|
INPUT(OPTIONAL)
|
230V-50/60Hz, 75W (110V optional)
|
||
|
Gear selection
|
|
OUTPUT
|
10.8-18V, Max DC, 3.5A
|
||
|
Machine characteristics
|
|
CHARGING TIME
|
The lithium battery is 5.0A/h (4.0A/h), and the charging time is about 90 minutes
|
||
|
WELDING TIME/COOLING TIME
|
|
|
1.1-1.4s/2.5s (adjustable)
|
||
|
CONTROL SYSTEM
|
|
|
Button+ Digital display
|
||
|
WORKING TEMPERATURE
|
|
|
The ambient air temperature is between 5℃ and 45℃ ; The optimum operating temperature is between 15℃ and 20℃
|
||
|
MACHINE DIMENSION L*W*H(MM)
|
|
|
335x150x145mm
|
||
|
PACKING DIMENSION L*W*H(MM) & WEIGHT
|
|
|
465x320x200mm; 4.05kg (N.W)/6.85kg (N.W)
|
||
Related Products
Packing&Shipping
Company Introduction
Youngsun, be built in 1983, the famous trademark of China’s packaging industry, is a larger manufacturer of packaging equipment in China and a national high-tech enterprise integrating R&D, production, sales and services, with main businesses including various liquid filling, powder and granule packaging, universal packaging equipment, and external packaging materials, etc.
It has been listed on the Shanghai Stock Exchange since May 29, 2015, with the Stock Code 603901.
The output value of Youngsun group and the affiliated companies reach USD 600 million, and the output value of Youngsun headquarters reaches USD 300 million.
We have already passed Moody international ISO9000 in 2002, approved CE in 2004. What's more, we established long term business with world-famous brands like Ferroro, Danone, Budweiser, Pepesi, P&G, Asiafoods etc.
As a customized-products oriented company and enjoy high reputation in worldwide packing industry, we are still seeking for ever greater perfection.
We offer: Case Erectors; Labeling Machine; Shrink Wrapper; Carton Sealer Strapping Machine; Strapping Tool; Palletizer; Wrapping Machine; Carton Packer; Packing Line; PP/PET Straps; Stretch Film/Shrink Film; Conveyor; Cartoning Machine; Robot……and customized packing machines.
We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. Well-trained engineers will offer you any technical support. I think we can find opportunity to cooperate as we have the same goal: providing superior quality products and services that consistently exceed our customers' expectations.
Product Range
FAQ
1. Are you manufacturer or trade Company?
We are a factory founded in 1983 with trade team for international service.
2. What terms of payment you usually use?
T/T 30% deposit and 70% against document, Western Union, L/C at sight
3. What is your lead time for your goods?
Normally 45 days after confirmed order. 30 days could be available in low season for some items (during May to July), and 65 days during new year and hot season ( Jan to March).
