Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jianghao
-
Model Number:
-
JHK-100GF
-
Weight:
-
1100KGS
-
Product Name:
-
generator
-
Power Engine:
-
Cummins 6BTA5.9-G2
-
Alternator:
-
Stamford,Marathon,Hengsheng
-
Controller:
-
Deep Sea,ComAp,Smartgen
-
Certificate:
-
ISO and CE
-
Optional:
-
ATS,oil heater,engine heater
-
Fuel Tank:
-
10 Hours Working Time
-
Phase:
-
1 Phase/3 Phase
Quick Details
-
Rated Voltage:
-
110V, 220V, 230V, 240V, 380v, 400V, 480V
-
Rated Current:
-
180A
-
Frequency:
-
50HZ/60HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jianghao
-
Model Number:
-
JHK-100GF
-
Weight:
-
1100KGS
-
Product Name:
-
generator
-
Power Engine:
-
Cummins 6BTA5.9-G2
-
Alternator:
-
Stamford,Marathon,Hengsheng
-
Controller:
-
Deep Sea,ComAp,Smartgen
-
Certificate:
-
ISO and CE
-
Optional:
-
ATS,oil heater,engine heater
-
Fuel Tank:
-
10 Hours Working Time
-
Phase:
-
1 Phase/3 Phase
Jiangsu Jianghao generator Co.,Ltd , located in Taizhou city,Jiangsu Province,which is near
Shanghai port. We have modern assembly workshop to produce diesel generator sets.Jianghao devote itself into researching,manufacturing and installing superb diesel generator sets ,power range from 2kva to 4000kva,include silent type,container type,mobile power station,multiple parallel,remote control and so on.As the ideal emergency standby power equipment,diesel generator sets are widely used in industrial and mining enterprises,communication, army,ports,
highway,railway,hotels etc places. With the compelling quality and service,Jianghao has built a good reputation with customers in the area of diesel generator sets,our products are exported to over eighty countries and regions,over 40 millions USD in the year 2017.

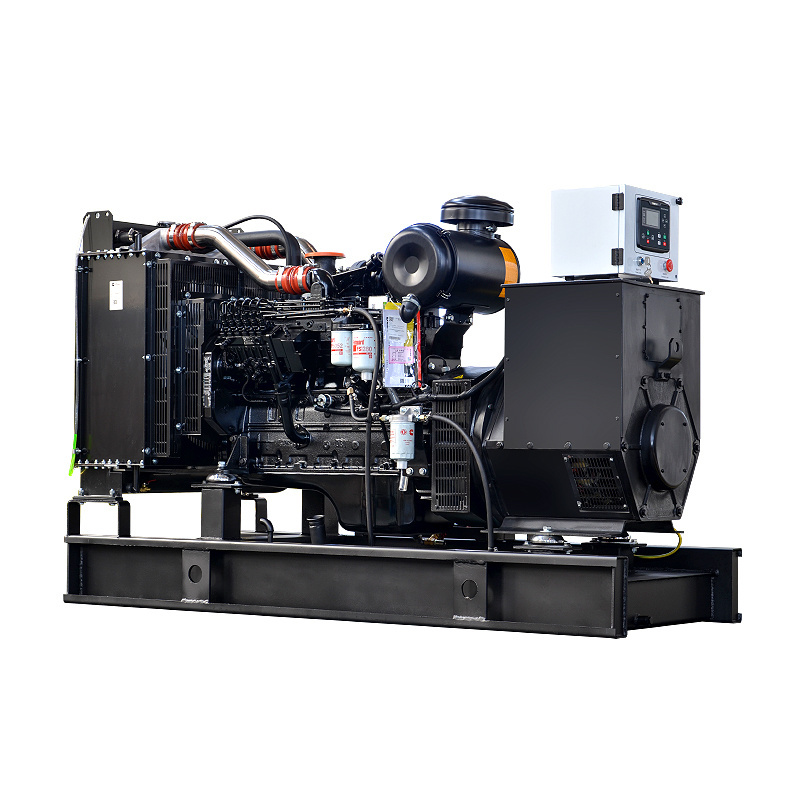

| Diesel generator Details | |
| Model | JHK-100GF |
| Power | 100KW/125KVA |
| Frequency | 50HZ |
| Voltage | 380/220v(voltage can be customized) |
| Optional Type | Open/soundproof/trailer |
| Size of Open type | 2200*800*1200mm |
| Weight of Open type | 1300kg |
| With Diesel Engine | |
| Brand&model | Cummins 6BTA5.9-G2 |
| Prime Power | 106kw |
| Standby Power | 116KW |
| Cylinders | 6 in line arrangement |
| Bore*Stroke | 102*120mm |
| Displacement | 5.9L |
| Fuel Consumption at 100% Load | 207g/kw.h |
| Speed Governor | Electronic |
| With Alternator | |
| Optional Brands | Stamford/Leroy Somer/Mecc Alte/Marathon |
| Exciter type | Single bearing,brushless,Self-excited |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| With Controller | |
| Optional brands | Deepsea/ComAp/Smartgen |
