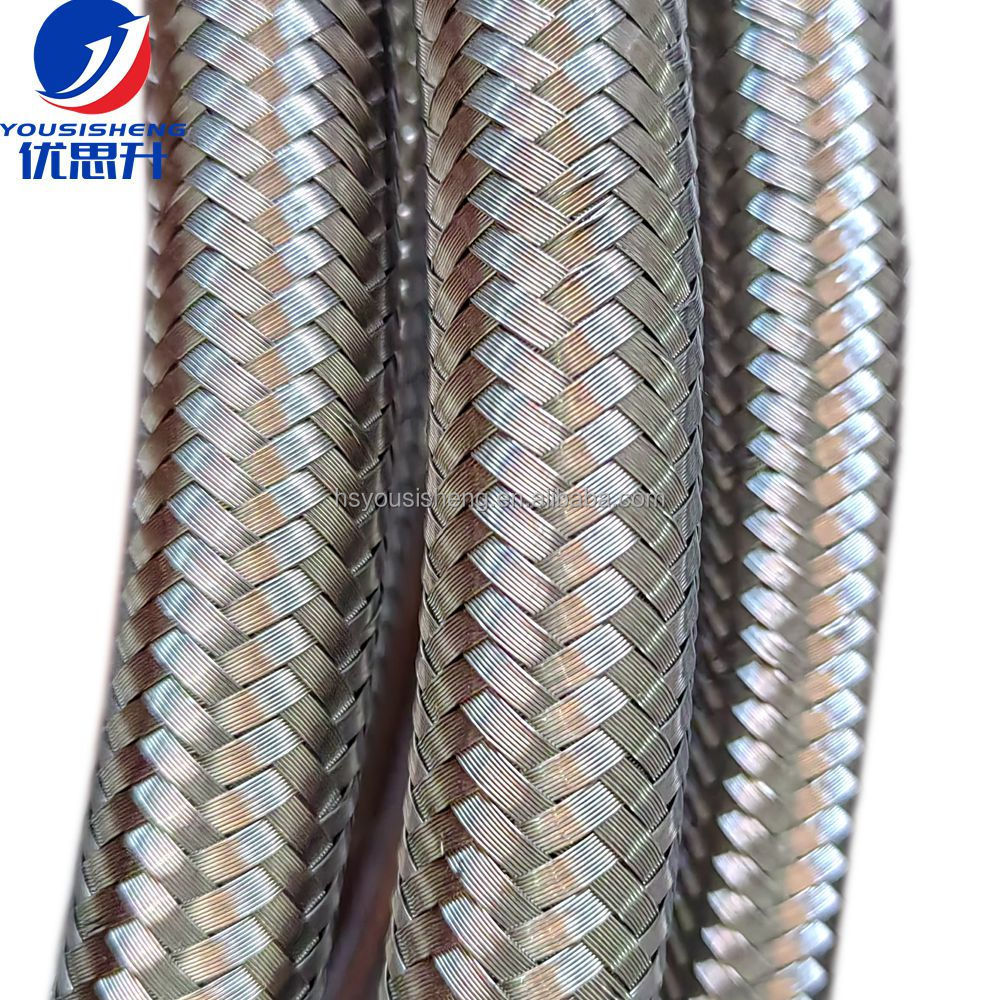

PTFE Hose Braided With Stainless Steel
Specification:
Inner Tube: PTFE corrugated h
Outer: Stainless Steel 201, 304, 316 Braided
Working temperature: -196 C to 460 C
Working Pressure: 0.6-6.4 Mpa
Size: From ID 6mm -1200mm
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
DN8-DN500
-
inner tube:
-
PTFE extruded or straight hose
-
Outer strength:
-
Stainless steel SS 201, 304, 316 braided net
-
Working pressure:
-
PN 0.6-6.4 Mpa
-
Size:
-
From ID 6mm to 1200mm
-
Length:
-
10-5000 mm
-
Application:
-
Used in machinery, chemical, petroleum, metallurgy, food
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Yousisheng
-
Model Number:
-
DN8-DN500
-
inner tube:
-
PTFE extruded or straight hose
-
Outer strength:
-
Stainless steel SS 201, 304, 316 braided net
-
Working pressure:
-
PN 0.6-6.4 Mpa
-
Size:
-
From ID 6mm to 1200mm
-
Length:
-
10-5000 mm
-
Application:
-
Used in machinery, chemical, petroleum, metallurgy, food
![](https://cdn.bestsuppliers.com/seo_products_img/hsyousisheng/c597d889f3db313f8269d8c7c2f0ef6f.jpg!/rotate/180)
Performance:
The corrugated metal hose has many excellent features such as good flexibility, fatigue resistance, high and low temperature resistance, corrosion resistance, etc. It has a much higher life than other types of hoses (rubber hoses, plastic hoses).
Application
1. Transport corrosive chemical or organic solvents. (for example: loading and unloading ammonia, acetone, etc.)
2. It transports high temperature media such as high temperature gas and hot oil. (Example: hot steam, heat transfer oil, etc.)
3. Transport low temperature or ultra low temperature media. (eg liquid nitrogen)
4. Conveying water, steam, oil and other media in a high temperature environment. (Example: water vapor system and hydraulic system in coking, steel making, continuous casting equipment)
5. Piping that requires damping or noise reduction. (eg: import and export of pumps)
![](https://cdn.bestsuppliers.com/seo_products_img/hsyousisheng/21bcc94803af3246b5942cae7f3253c1.jpg!/rotate/180)
1. Flange type
![](https://cdn.bestsuppliers.com/seo_products_img/hsyousisheng/4d57347422173408b8516940de8b0b6a.jpg!/rotate/180)
2. Threaded thread type
(Including: A type flat head, C type bell mouth, D type round head, H type 24 ° taper buckle
![](https://cdn.bestsuppliers.com/seo_products_img/hsyousisheng/092f8212eb113cf0855818d5b64ec6c8.jpg!/rotate/180)
3. Sanitary grade chuck type
4. Quick joint type
5. Welded type
![](https://cdn.bestsuppliers.com/seo_products_img/hsyousisheng/c597d889f3db313f8269d8c7c2f0ef6f.jpg!/rotate/180)
Hengshui Yousisheng Rubber and Plastic Products Trade Co., Ltd is a professional manufacturer of high-pressure hoses, high-pressure hose assemblies and hydraulic pipe fittings.
The company has successively developed and produced various specifications of medium and low pressure hoses, characteristic hoses, stainless steel metal hoses and steel pipe assemblies for construction machinery, which are sold throughout the country and exported to some foreign countries. They are widely used in machinery and equipment, petroleum and coal mining. , metallurgy, chemical, transportation and other industries, praised by users.
