Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HANDSKIT, handskit
-
Model Number:
-
T245, T245
-
Temperature Control Accuracy:
-
97%
-
is_customized:
-
Yes
-
Origin:
-
Mainland China
-
Certification:
-
CE
Quick Details
-
Warranty:
-
3 years
-
Type:
-
Digital
-
Tip Type:
-
Straight
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HANDSKIT, handskit
-
Model Number:
-
T245, T245
-
Temperature Control Accuracy:
-
97%
-
is_customized:
-
Yes
-
Origin:
-
Mainland China
-
Certification:
-
CE
|

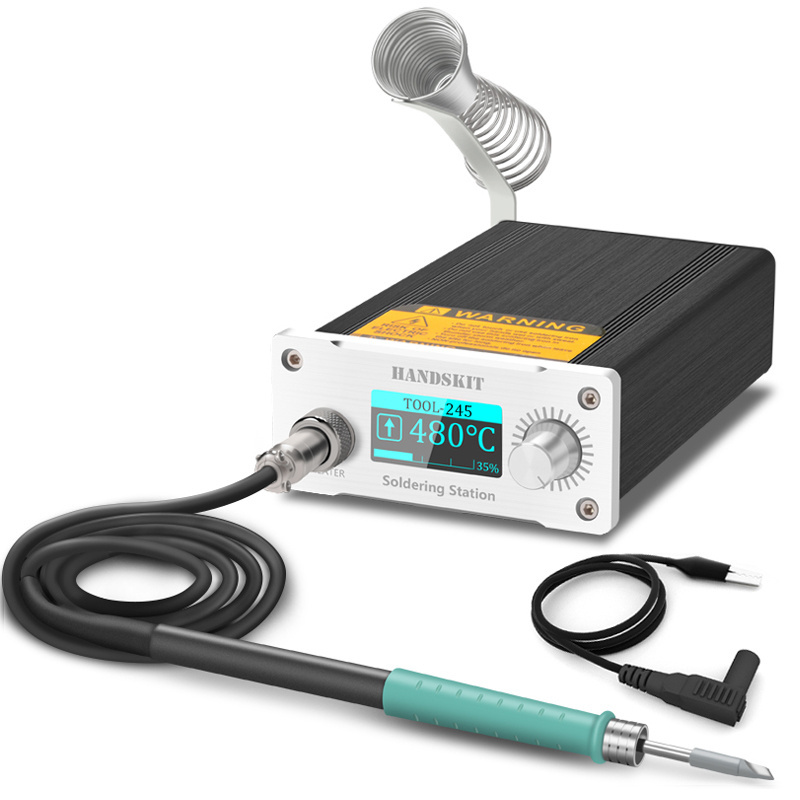

Model: |
T245 |
|
Input voltage |
AC 100-240V |
|
Power |
24V/10A 200W |
|
Control chip |
Stc |
|
Automatic sleep |
2s |
|
Temperature (adjustable)) |
100-500℃ |
|
Tin melting time |
1S |
|
Product size |
130*88*38 |
|
Product material
|
all aluminum |
|
Display OLED |
OLED 1.3Inch |
1. Temperature Set
2.1
Standby
.
When the soldering iron enters the "standby mode", the working temperature is set to 50-500℃ . If the value of this option is less than 50, it will not be heated during sleep;
2.2
Boot-Temp
Enter Boot-Temp, you can set the default set temperature of the soldering iron required after booting. If you want the soldering station to save the set temperature value at the last shutdown, you can set this option to "0";
3. Temperature- CAL
0~500℃
: Click to select the 100
℃
to 500
℃
option, the soldering iron will be heated according to the temperature table corresponding to the soldering iron tip number set in the "Tip Selection", and the heating will automatically stop after unchecking. During the calibration process, if the actual temperature is lower than the set temperature, increase the AD value; if the actual temperature is higher than the set temperature, decrease the AD value. 0
°
C and 600
°
C are generally the default values without adjustment. When calibrating the soldering iron tip, remember that this set of data must be strictly increased from small to large, otherwise the temperature is invalid. For example, if before calibration: 100
℃
, AD=110; 200
℃
, AD=270; 300
℃
, AD = 380, when calibrating 200
℃
, the temperature is less than 200
℃
, you need to increase the AD value from 270, but its size It cannot exceed the AD value of 380 at 300
°
C. If the temperature cannot reach 200
°
C when the temperature is adjusted from 270 to 380, it means that the value of 380 at 300
°
C is also too small. You need to increase the 380 at 300
°
C first.
4. Automatic Sleep
4.1 Sleep Time
Press and hold the encoder for 2 seconds to enter Other Set , Sleep-tim---according to your choice, the setting range is 0-60 minutes, the default is 1minutes, when in sleep state, the temperature of the soldering iron tip will be reduced to protect the life of the soldering iron tip ,Press 2 sencond quit
4.2 RESET
Press and hold the encoder for 2 seconds to enter Other Set
,
If you need to restore the factory settings, set the position to 1, and the soldering iron will restart after exiting the menu, and all parameters will be restored to the factory settings.
