Quick Details
-
Normal pressure:
-
0.63-2.0 MPa
-
Connection:
-
Hot melt, butt fusion, electro fusion
-
Life span:
-
50 Years Under Normal Conditions
-
Feature:
-
Corrosion resistance, No leakage, High toughness
-
Certificate:
-
ISO4427,ISO9001,CE
-
working temperature:
-
--40℃ to 60℃
-
Production capacity:
-
110000 tons/year
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Color:
-
white,grey
-
Application:
-
Water supply, drainage,irrigation
-
Normal pressure:
-
0.63-2.0 MPa
-
Connection:
-
Hot melt, butt fusion, electro fusion
-
Life span:
-
50 Years Under Normal Conditions
-
Feature:
-
Corrosion resistance, No leakage, High toughness
-
Certificate:
-
ISO4427,ISO9001,CE
-
working temperature:
-
--40℃ to 60℃
-
Production capacity:
-
110000 tons/year

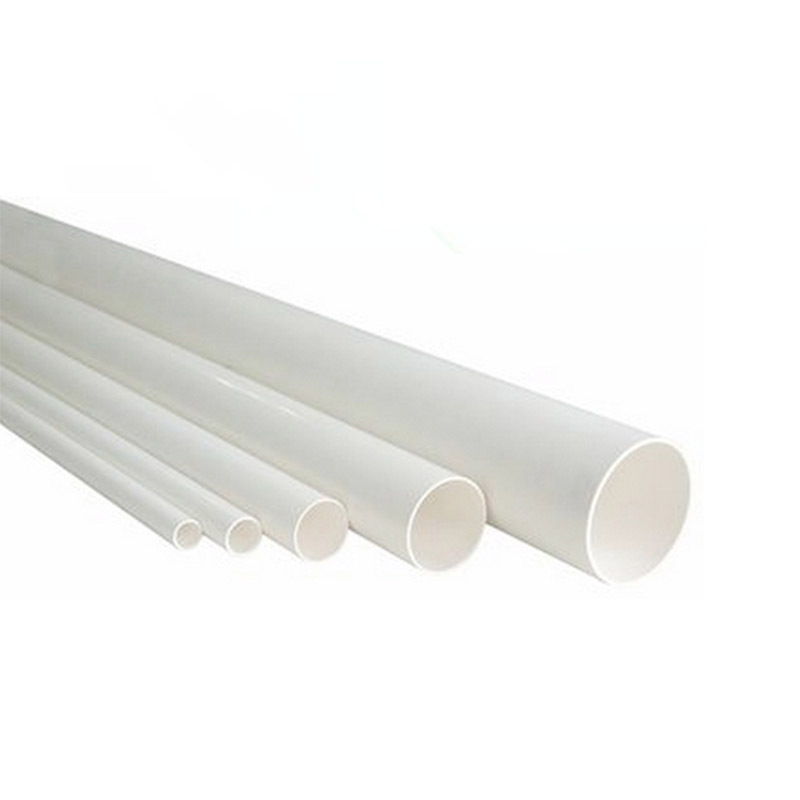

Chinese Factory supply Schedule 25 40 60 Dimensions Water Well PVC Pipe
Welcome To Huaxiang Pipe Technology Co., Ltd.
| Nominal Diameter (mm) | Nominal Diameter (inch) | Wall Thickness (mm) | |||||
| SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR9 | ||
| PN6 | PN8 | PN10 | PN12.5 | PN16 | PN20 | ||
|
20 |
3/4" | -- | -- | -- | -- | -- |
2.0 |
| 25 | 1" | -- | -- | -- | -- | 2.0 | 2.3 |
| 32 | 1 1/4" | -- | -- | -- | 2.0 | 2.4 | 2.9 |
| 40 | 1 1/2" | -- | -- | 2.0 | 2.4 | 3.0 | 3.7 |
| 50 | 2" | -- | 2.0 | 2.4 | 3.0 | 3.0 | 4.6 |
| 63 | 2 1/2" | 2.0 | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 |
| 75 | 3" | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.9 |
| 90 | 3 1/2" | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4 1/4" | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 |
| 125 | 5" | 3.1 | 3.9 | 4.8 | 6 | 7.4 | 9.2 |
| 140 | 5 1/2" | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 | 10.3 |
| 160 | 6 1/4" | 4 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 |
| 180 | 7" | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 | 13.3 |
| 200 | 8" | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.7 |
| 225 | 9" | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 | 16.6 |
| 250 | 10" | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 |
| 280 | 11" | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 | 20.6 |
| 315 | 12 1/2" | 7.7 | 9.7 | 12.1 | 15 | 18.7 | 23.2 |
| 355 | 14" | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 |
| 400 | 15 3/4" | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 |
| 450 | 17 3/4" | 11.0 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 |
| 500 | 19 3/4" | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 |
| 560 | 22" | 13.7 | 17.2 | 21.4 | 26.7 | -- | -- |
| 630 | 24 3/4" | 15.4 | 19.3 | 24.1 | 30.0 | -- | -- |
| 710 | 28" | 17.4 | 21.8 | 27.2 | -- | -- | -- |
| 800 | 31 1/2" | 19.6 | 24.5 | 30.6 | -- | -- | -- |
