Surephon CE TUV UL made in Vietnam Cbb61 Capacitor For electrical Fan start and run with pins
Surephon CE TUV UL made in Vietnam Cbb61 Capacitor For electrical Fan start and run with pins
Surephon CE TUV UL made in Vietnam Cbb61 Capacitor For electrical Fan start and run with pins
Surephon CE TUV UL made in Vietnam Cbb61 Capacitor For electrical Fan start and run with pins
Surephon CE TUV UL made in Vietnam Cbb61 Capacitor For electrical Fan start and run with pins
Surephon CE TUV UL made in Vietnam Cbb61 Capacitor For electrical Fan start and run with pins
Surephon CE TUV UL made in Vietnam Cbb61 Capacitor For electrical Fan start and run with pins
Surephon CE TUV UL made in Vietnam Cbb61 Capacitor For electrical Fan start and run with pins

Surephon CE TUV UL made in Vietnam Cbb61 Capacitor For electrical Fan start and run with pins

FOB Reference Price: Get Latest Price
≥500 Pieces
US $2
≥1000 Pieces
US $1.8
≥2000 Pieces
US $1.6
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Specification:
250VAC-500VAC
Packaging Type:
general packing
Application:
household appliance,instruments,meters etc
Package / Case:
plastic/aluminium/stainless steel
Series:
CBB61
Features:
safety level: S2
Size / Dimension:
customized or our design
Description:
Widely use
Manufacturing Date Code:
customized
Capacitance:
3UF-80UF
Standard:
UL810;GB/T3667-1,IEC60252-1,EIA456-A
Capacitance range:
±5%
Rated frequency:
250VAC,370VAC,400VAC,450VAC,500VAC
Type:
50-60Hz
Condition:
-40℃~+85℃;-40℃~+70℃
Certification:
TUV,UL,CUL,CQC
Testing voltage 1:
T-T:2.0 Un/60S
Testing voltage 2:
T-C:>=2200VAC/60s no break down
Insulation Resistance:
T-T:>=3000MΩ.μf; T-C:1000MΩ

Quick Details

Place of Origin:
Anhui, China
Brand Name:
Surephon
Model Number:
CBB61
Specification:
250VAC-500VAC
Packaging Type:
general packing
Application:
household appliance,instruments,meters etc
Package / Case:
plastic/aluminium/stainless steel
Series:
CBB61
Features:
safety level: S2
Size / Dimension:
customized or our design
Description:
Widely use
Manufacturing Date Code:
customized
Capacitance:
3UF-80UF
Standard:
UL810;GB/T3667-1,IEC60252-1,EIA456-A
Capacitance range:
±5%
Rated frequency:
250VAC,370VAC,400VAC,450VAC,500VAC
Type:
50-60Hz
Condition:
-40℃~+85℃;-40℃~+70℃
Certification:
TUV,UL,CUL,CQC
Testing voltage 1:
T-T:2.0 Un/60S
Testing voltage 2:
T-C:>=2200VAC/60s no break down
Insulation Resistance:
T-T:>=3000MΩ.μf; T-C:1000MΩ
Product Description
Product Name

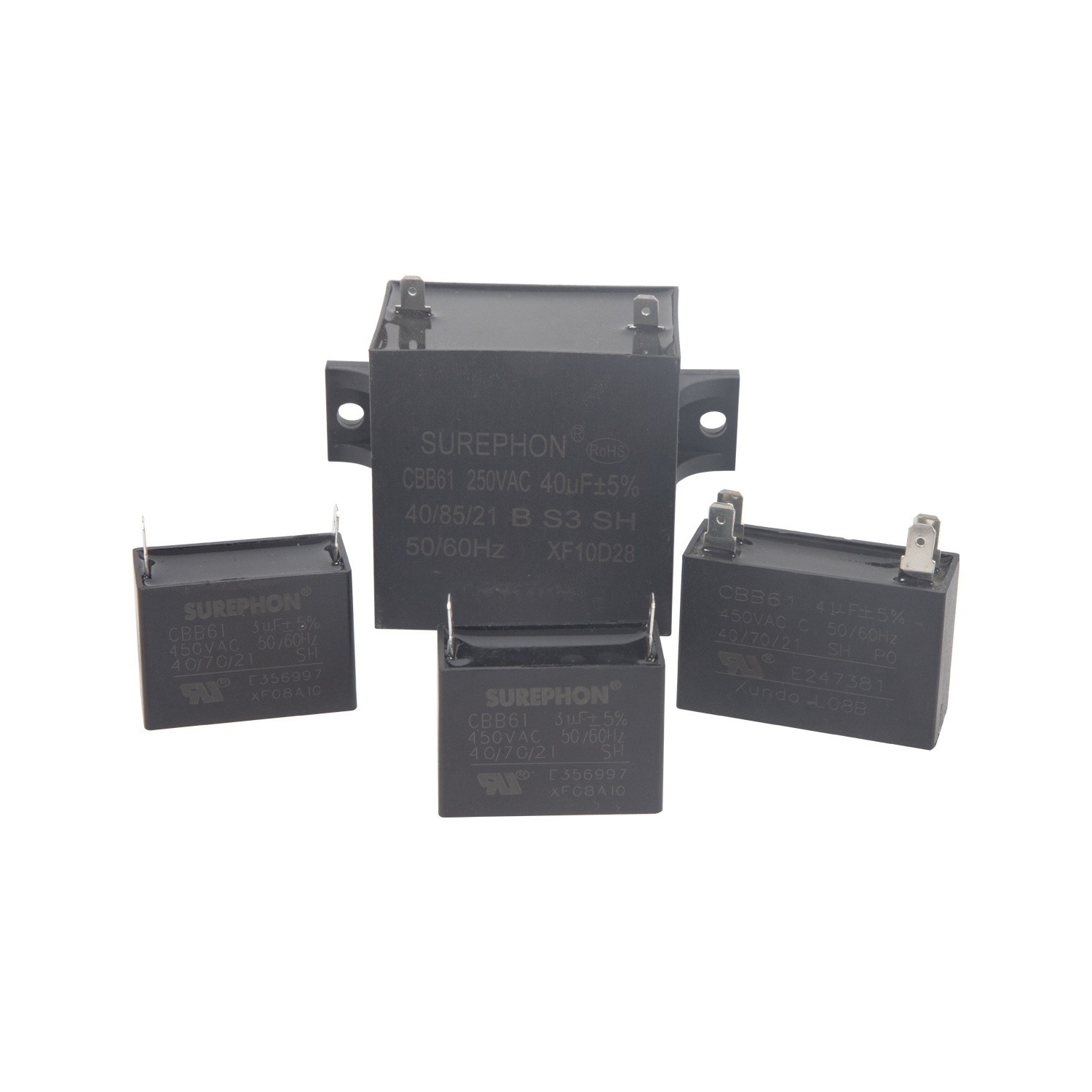

CBB61 Capacitor
Material
PP film
Function
widely use in 50/60Hz AC motors for starting and running,such as air conditioner fan,electric fan,ventilator fan, boostar fan etc
Package
general packing

  • Features:

1.Structure:Cuboid self -extinguishing plastic case,with tap or line outleads,fully filled with resin;
2.Features:Good self -healing,small size,low dissipation,stable capacitance,long life,reliable performance etc.
Our Advantages
Details Images
Germany imported BOPP film production line
High-vacuum film metallization and precisely cutting of the fim.
Winding the metallized film and making the core

Assembling the capacitor and full testing

Packing

Product Usage
Packing&Shipping
Company Introduction
Certifications
