Quick Details
-
Battery:
-
150AH*6
-
Place of origin:
-
Zhejiang
-
Motor:
-
3 KW
-
Type:
-
EZGO
-
Warranty:
-
1 year
-
Suspension:
-
Independent Suspension
Quick Details
-
Tire Size:
-
8/10 inch
-
Color:
-
White
-
Controller:
-
Chinese Top Brand AC
-
Battery:
-
150AH*6
-
Place of origin:
-
Zhejiang
-
Motor:
-
3 KW
-
Type:
-
EZGO
-
Warranty:
-
1 year
-
Suspension:
-
Independent Suspension
|

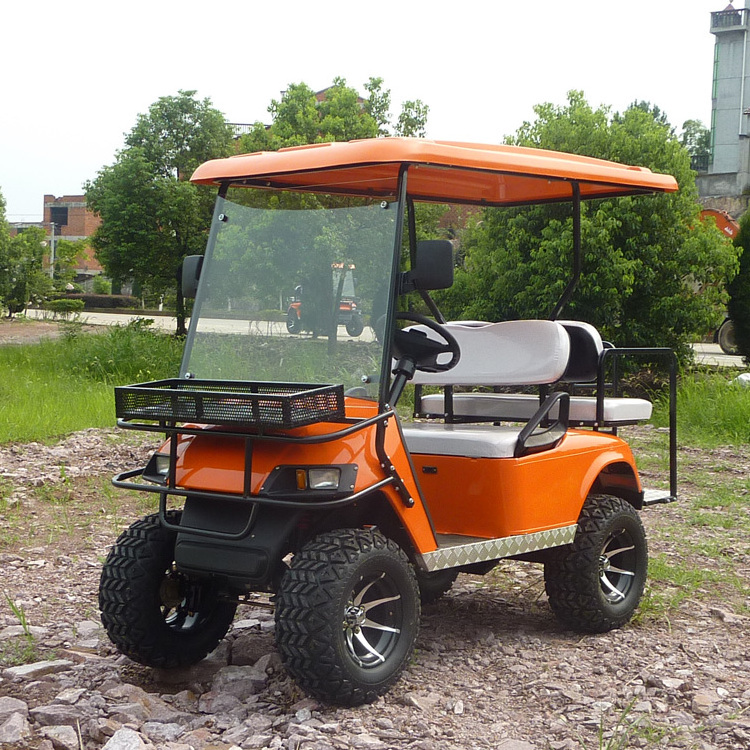

Item No.: |
SR-EG2-2S(off road) |
|
Brand |
Sunnyroad |
|
Body and Chassis
|
|
|
Frame: |
Welded steel with double coating |
|
Body and Finish |
Injection Molded TPO |
|
Stand Color |
White |
|
Dimensions
|
|
|
Overall length |
108.3inch(271cm) |
|
Overall width |
47inch(120cm) |
|
Overal highth |
75.2inch(191cm)(top of sun canopy) |
|
Wheel track : |
Front33inch(84cm) /Rear38.8inch(98.5cm) |
|
Wheel base : |
65inch(164cm) |
|
Ground clearance: |
10.6inch(27cm ) |
|
Power
|
|
|
Motor |
4kw AC motor |
|
Controller |
48v 402A famous Brand controller with auto brake function/Crutis |
|
Battery: |
48V, 8V/150Ah, 6 unitS |
|
Battery lifetime: |
More than 700 times of charge. |
|
Charger: |
Intelligent pulse charge to recover the battery,input volt:100-220volt. |
|
Charge time: |
8-9hours |
|
Steering and Suspension
|
|
|
Steering: |
Double ended rack and pinion |
|
Suspesion |
Front Independent A-arm Coil Over Shock Reear 3spring with hydraulic shock absorbers |
|
Performance |
|
|
Brakes: |
drum brakes on rear wheels |
|
Brakes Distance |
<4m |
|
Tires: |
23/10.5-12 off road tyre with aluminum rim |
|
Seat Capacity |
4 |
|
Min.Turning Radius: |
290cm |
|
Discharge rate: |
.>80% |
|
Running period of every charge: |
More than 80kms |
|
Max. slope of climb: |
30% |
|
Max. speed: |
30km/h |
|
Curb weight: |
460kgs |
|
Max load capacity: |
500kgs |
|
Electrical systems: |
Brake lights,Head lights,rear light,turnning light,night lights,horn,battery level indicator,speed meter(optional),reverse gear,,etc. |
|
Loading Detail Information
|
|
|
Product size: |
275*120*191cm |
|
Packing size: |
230*120*95cm |
|
Container |
Iron Rack Pack 10units/20" & 30units/40"HQ |
