Quick Details
-
Productivity:
-
25M³/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang
-
Weight:
-
1580 kg
-
Dimension(L*W*H):
-
3400*1100*1700mm
-
model:
-
HW-30
-
Max. Theoretical Concrete Output:
-
25m3/h
-
working pressure:
-
Max.10Mpa
-
Max. aggregate size:
-
30mm
-
Motor Power:
-
40.1KW
-
Outlet diameter:
-
125mm
-
Filling Height:
-
1100mm
-
Fuel tank capacity:
-
250L
-
Cleaning Model:
-
High pressure washing
-
rated rotation speed:
-
1280r/min
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
120M
-
Max. horizontal conveying distance:
-
250M
-
Productivity:
-
25M³/H
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang
-
Weight:
-
1580 kg
-
Dimension(L*W*H):
-
3400*1100*1700mm
-
model:
-
HW-30
-
Max. Theoretical Concrete Output:
-
25m3/h
-
working pressure:
-
Max.10Mpa
-
Max. aggregate size:
-
30mm
-
Motor Power:
-
40.1KW
-
Outlet diameter:
-
125mm
-
Filling Height:
-
1100mm
-
Fuel tank capacity:
-
250L
-
Cleaning Model:
-
High pressure washing
-
rated rotation speed:
-
1280r/min
Product Description

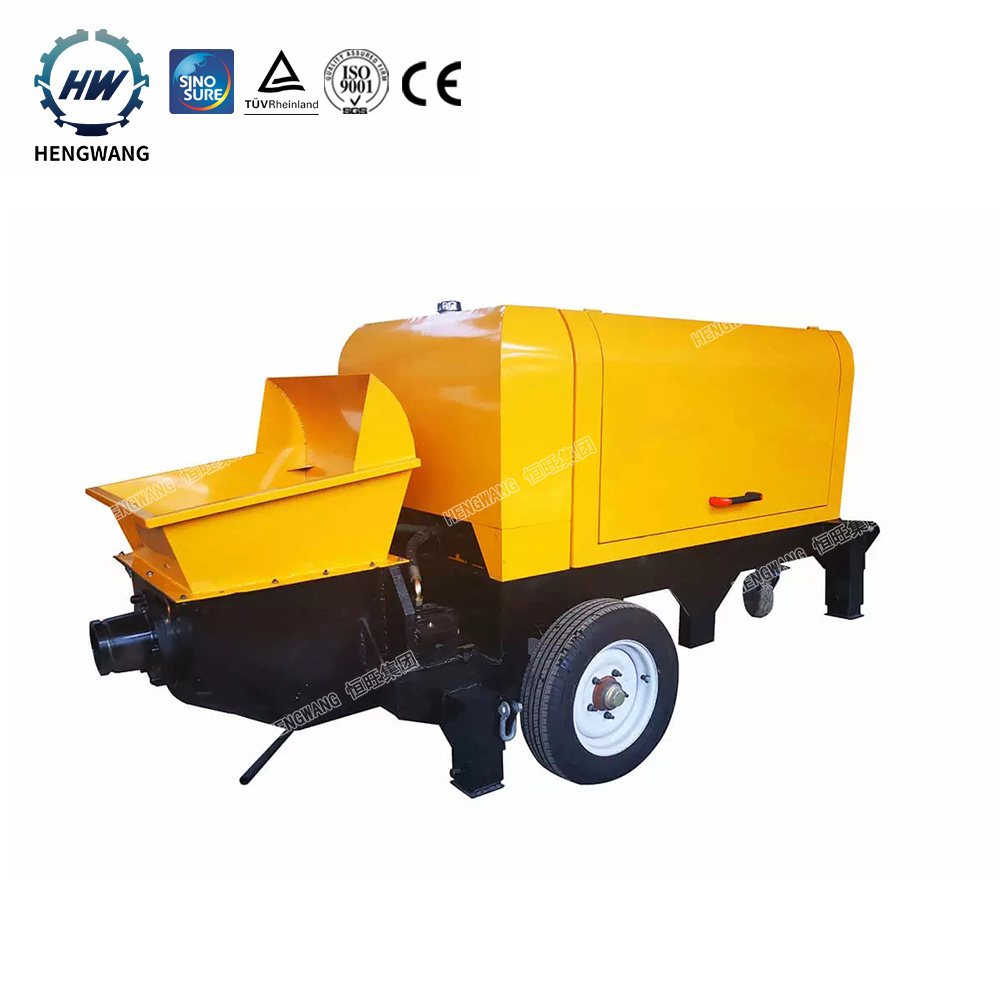

HW-30 Concrete Pump
Rated Power: 40.1Kw
Aggregate size: 30mm
Output: 25m3/h
Aggregate size: 30mm
Output: 25m3/h
* Competive Price
* Site Instrcution and Installation
* Professtional After-Sales Team
* CE, BV, TUV, ISO
* Site Instrcution and Installation
* Professtional After-Sales Team
* CE, BV, TUV, ISO
HW-30 Long Delivery Distance Concrete Pump Machine
*
1
.Main oil pump
: constant power variable inner plunger pump
* 2. Power system : diesel concrete pump has low energy consumption and high efficiency.
* 3 . Hopper device : the hopper volume is increased
* 4 . Electric control system : LS brand, zhengtai.
* 2. Power system : diesel concrete pump has low energy consumption and high efficiency.
* 3 . Hopper device : the hopper volume is increased
* 4 . Electric control system : LS brand, zhengtai.
5
.
Cooling system
: double cooling system of cooling
6
.
Eyeglasses plate
, more durable
Technical Parameter
|
Model
|
HW20
|
HW30
|
HW40
|
HWHBTS50
|
|
Maximum throughput
|
15m³/h
|
25m³/h
|
35m³/h
|
50m³/h
|
|
Cylinder diameter and storke
|
Φ140*650mm
|
Φ160*750mm
|
Φ160*1000mm
|
Φ180*1000mm
|
|
Outlet diameter
|
Φ100mm
|
Φ125mm
|
Φ150mm
|
Φ150mm
|
|
Rated power
|
30.1KW 4100 diesel engine
|
40.1KW(4102 diesel engine)
|
45KW (4108 diesel engine)
|
55KW (4108 diesel engine)
|
|
Hydraulic tank capacity
|
200L
|
250L
|
240L
|
240L
|
|
Max. vertical delivery distance
|
120m
|
120m
|
120m
|
120m
|
|
Max. horizontal delivery distance
|
250m
|
250m
|
250m
|
250m
|
|
Max. aggregate size
|
30mm
|
30mm
|
40mm
|
40mm
|
|
Total weight
|
1500KG
|
1580kg
|
3300KG
|
3500KG
|
Products Details
To Customer
Sincerely looking for agents, are you interested in it?
The warranty is extended for 1500 hours.
50% discount on local service charge.
