Quick Details
-
Type:
-
silicone pad
-
Material:
-
silicone, silicone
-
Application:
-
LED
-
Rated Voltage:
-
4KV/mm
-
Tensile Strength:
-
2.3KN/M, 2.3 KN/M
-
Item name:
-
High Quality Thermal Conductive Silicone Fabric Pad
-
Dimension:
-
200mm*400mm/300mm*300mm,Customized size available
-
Brand name:
-
Dobon
-
Color:
-
Custom color available
-
Shape:
-
Pad/Sheet/Roll,Custom shape available
-
Sample:
-
For free
-
Application temperature:
-
-40 to 150
-
Shipment:
-
By sea or by air
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dobon
-
Model Number:
-
CP400
-
Type:
-
silicone pad
-
Material:
-
silicone, silicone
-
Application:
-
LED
-
Rated Voltage:
-
4KV/mm
-
Tensile Strength:
-
2.3KN/M, 2.3 KN/M
-
Item name:
-
High Quality Thermal Conductive Silicone Fabric Pad
-
Dimension:
-
200mm*400mm/300mm*300mm,Customized size available
-
Brand name:
-
Dobon
-
Color:
-
Custom color available
-
Shape:
-
Pad/Sheet/Roll,Custom shape available
-
Sample:
-
For free
-
Application temperature:
-
-40 to 150
-
Shipment:
-
By sea or by air
China Customized Wholesale Thermal Silicone Fabric Pad
Physics parameter form
| Test Item |
Test Method |
Unit |
CP400 Value |
|
Color |
Visual |
|
Green |
|
Thickness |
ASTM D374 |
mm |
0.3~5 |
|
Specific Gravity |
ASTM D792 |
g/cc |
3.2±0.1 |
|
Hardness |
ASTM D2240 |
Shore C |
30±5 |
|
Tensile Strength |
ASTM D412 |
(Pa) |
5.6*10 8 |
|
Compressibility |
ASTM D412 |
% |
25 |
|
Temperature Range |
EN344 |
℃ |
-40~+150 |
|
Volume Resistivity |
ASTM D257 |
Ω-CM |
1.0*10 11 |
|
Breakdown Voltage |
ASTM D149 |
KV/mm |
4 |
|
Flame Rating |
UL-94 |
|
V-0 |
|
Thermal Conductivity |
ASTM D5470 |
w/m-k |
4.0 |

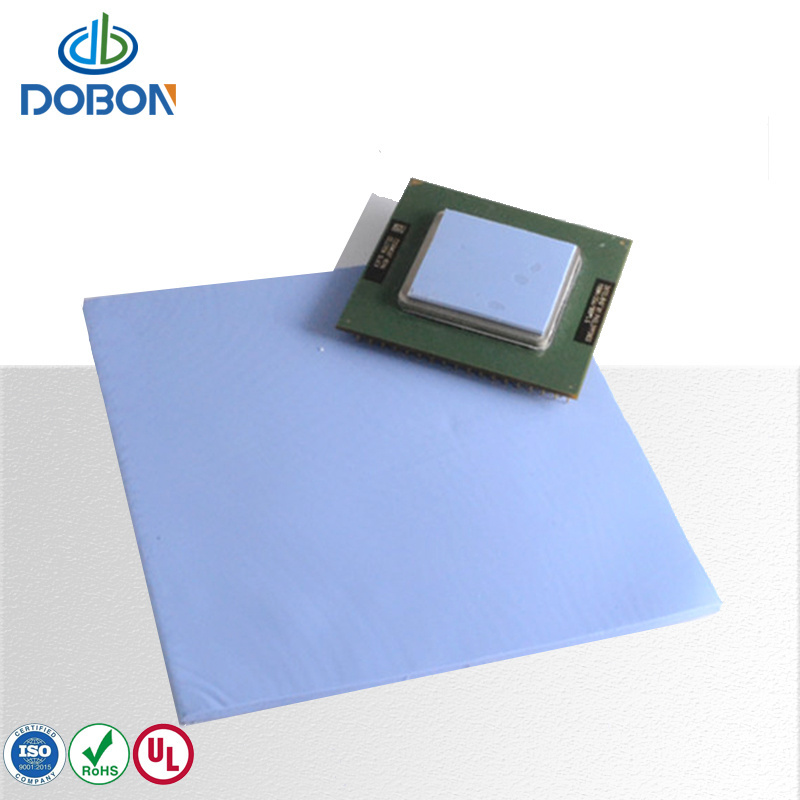

Product Pictures:
Application mode:
1. Fill between the circuit board and thermal slug
2. Fill between IC and thermal slug or the product shell
3. Fill between IC and heat dissipation material ( such as metallic shield)
Product application:
Thermal silicone pad is widely used for all kinds of high power supply, laptop, LED light, smartphone, power battery, electronic industry and so on.
Certifications:
Factory show:
Q: Are you trading company or manufacturer ?
A: We are manufacturer, our factory in Dongguan city, China. Welcome to visit.
Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free , but not including the shipping cost.If it is a sample order, you can place an order directly, and we will take the initiative to contact you to confirm that we can provide the quantity and style.
Q: How to customize a sample?
A:If you are ordering a unique sample that we don't have in stock, you need to provide all the details, it will be better if you can send a sample for our evaluation. Customized samples maybe need new molding, which will cost molding fee. We will check your sampling requirements, then issue a sampling P/I. Sampling may take 3-5 days, depending on detailed samples.
Q: How to order?
A:You can place an order directly, but the freight may be inaccurate. After placing an order, our business will actively contact you to confirm the size, thickness, thermal conductivity and packaging, and then confirm the accurate price. After modifying the order, you can pay directly.
Please try your best to contact the customer service before placing an order, or provide your own contact information to facilitate the communication of details through the chat software.
PS:If you want to know more about our product, pls feel free to contact us. And welcome to our factory.
