Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
BLUESUN
-
Model Number:
-
BSM600M10-72HNH
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278*1134*30mm
-
Cell Type:
-
N-type Topcon
-
Cell Arrangement:
-
144 (6*24
-
Cable Cross Section Size:
-
TUV: 4mm (0.006inches )/UL: 12AWG
-
Weight:
-
32.7kg
-
Module Dimensions:
-
2278*1134*30mm
-
No. of Bypass Diodes:
-
3
-
Frame:
-
Anodized Aluminium Alloy
-
Packing Configuration:
-
36pcs/carton, 720pcs/40hq
-
Application:
-
home use solar panel
-
Maximum System Voltage:
-
1500V DC
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
Half Cell, Bifacial, Double-glass, N-TYPE, TOPCON
-
Panel Efficiency:
-
22.8%
-
Warranty:
-
25 years
-
Brand Name:
-
BLUESUN
-
Model Number:
-
BSM600M10-72HNH
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278*1134*30mm
-
Cell Type:
-
N-type Topcon
-
Cell Arrangement:
-
144 (6*24
-
Cable Cross Section Size:
-
TUV: 4mm (0.006inches )/UL: 12AWG
-
Weight:
-
32.7kg
-
Module Dimensions:
-
2278*1134*30mm
-
No. of Bypass Diodes:
-
3
-
Frame:
-
Anodized Aluminium Alloy
-
Packing Configuration:
-
36pcs/carton, 720pcs/40hq
-
Application:
-
home use solar panel
-
Maximum System Voltage:
-
1500V DC
Products Description
|
SPECIFICATIONS
|
|
|
|
|
||||
|
Module Type
|
BBSM595M10-72HNH
|
|
BSM600M10-72HNH
|
BSM565M10-72HPH
|
||||
|
|
STC
|
NMOT
|
STC
|
NMOT
|
||||
|
Maximum Power (Pmax/W)
|
595
|
448
|
600
|
452
|
||||
|
Operating Voltage(Vmp/V)
|
43.88
|
40.20
|
44.08
|
40.25
|
||||
|
Operating Current(Imp/A)
|
13.59
|
11.10
|
13.65
|
11.18
|
||||
|
Open-Circuit Voltage(Voc/V)
|
52.24
|
49.62
|
52.44
|
49.81
|
||||
|
Short-Circuit Current(Isc/A)
|
14.41
|
11.72
|
14.45
|
11.76
|
||||
|
Module Efficiency（%）
|
23.0
|
|
23.2
|
|
||||
|
STC: Irradiance 1000W/m
2
, Cell Temperature 25°C Air Mass AM1.5
|
|
|
|
|
||||
|
|
|
|
|
|||||

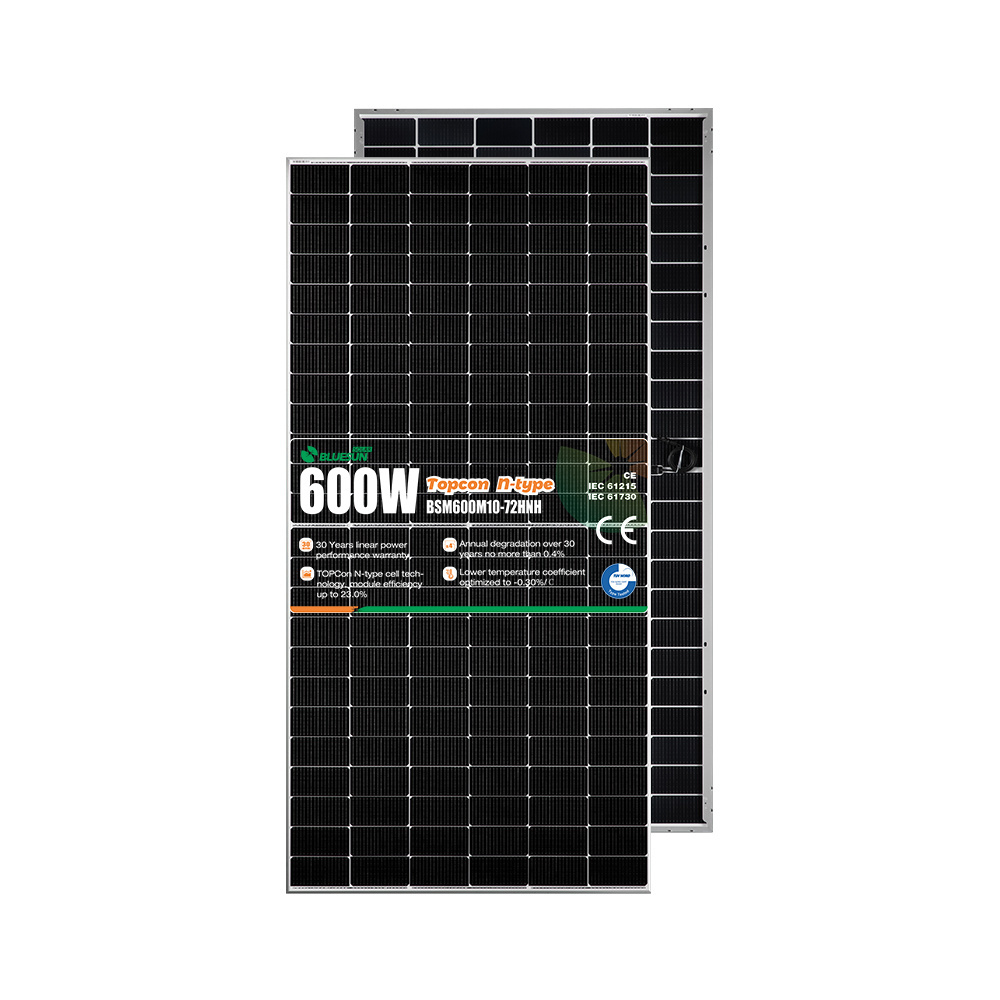

Bluesun Topcon Solar Panel
