LY-485C-PK Fully Automatic Hardcover Case Making Machine For Making Book Cover

LY-485C-PK Fully Automatic Hardcover Case Making Machine For Making Book Cover

FOB Reference Price: Get Latest Price

≥1 Pieces

US $55000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Lishunyuan

Voltage:: 380V

Dimension(L*W*H):: L8000*W3800*H2400mm

Weight:: 500 KG

Product name:: LY-485C-PK Fully Automatic Hardcover Case Making Machine

AfterWarrantyService:: Video technical support Online support

LocalServiceLocation:: Viet Nam India Malaysia South Korea

AftersalesServiceProvided:: Online support Video technical support

Keyword:: case maker machine

Quick Details

Type:: rigid box making machine

Applicable Industries:: Packing Plant

Place of Origin:: Guangdong, China

Brand Name:: Lishunyuan

Voltage:: 380V

Dimension(L*W*H):: L8000*W3800*H2400mm

Weight:: 500 KG

Product name:: LY-485C-PK Fully Automatic Hardcover Case Making Machine

AfterWarrantyService:: Video technical support Online support

LocalServiceLocation:: Viet Nam India Malaysia South Korea

AftersalesServiceProvided:: Online support Video technical support

Keyword:: case maker machine

Product Description

LY-485C-PK Fully Automatic Hardcover Case Making Machine For MakingBook Cover

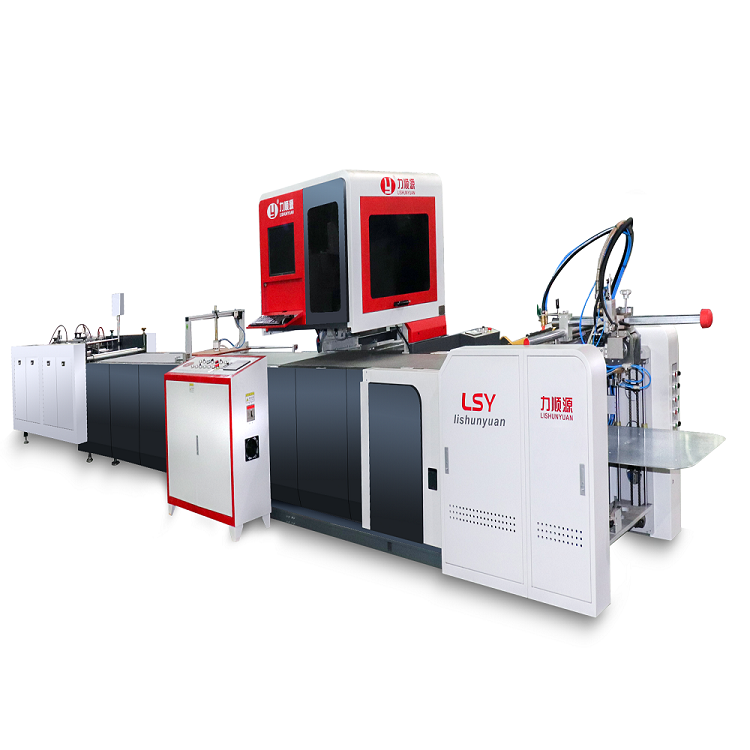

LY-485C-PK Fully automatic case making machine, is a combination of visual positioning, four sides covering modules. It's suitable for making all types of book style case, (such as mobile phone boxes, moon cake boxes, tea boxes, cosmetics boxes) hardcover bookcase, notebook covers, desk calendar, folders, etc.

Specification

Specifications:		LS-N95KZ
Paper Size	L: 180-880mm
	W:95-600mm
Finished box size	L:80-800mm
	W:80-400mm
Production Capacity	20-30pcs/min
Positioning accuracy	±0.1mm
Min.center bar size panel	30mm
Paper thickness	80-300g/m2
Air pressure	0.6-0.8MPa
Power Supply	380V/50Hz/3phases
Constant power	21KW
Machine dimension	L9500xW2450xH2000mm

1、Using two industrial cameras with five mega pixels, and YAMAHA robot arm to position, high positioning accuracy(±1mm).
2、High production rate, with case making and mounting speed at 20-30pcs/min.Using an independent man-machine control system, transfermachine time is short, fast transfer version.
3、Using independent automatic control system, time for machine adjustment is short, quick to shift mold.
4、Mainframe module can be adjusted to position rigid box, positioning accuracy within±1mm, speed 20-30pcs/min, can be optionally matched with corner pasting machine, splicing board box making machine or pneumatic machine and can be extended to produce different kinds of products in future.

Packing & Delivery

Company Profie

LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province, and has a modern standard workshops of 20000 square meters, after 20 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.

Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.

Lishunyuan adheres to the development concept of “customer first, service to the world” and adheres to the development strategy of “keep improving and bring forth the old and new”. Lishunyuan devotes itself to the development of new products with high performance and high efficiency in the industry and leads the rapid development of intelligent automation in the industry.
