Quick Details
-
Place of Origin:
-
Guangdong, China
-
Maximum input power:
-
5.4KW
-
Lifting speed:
-
0.1~2000 μ M/s (adjustable)
-
Lifting stroke:
-
0-100mm (customizable according to requirements)
-
Furnace tube size:
-
Dia60(OD)*1300mm
-
maximum temperature:
-
1200 ℃
-
Rated temperature:
-
1150 ℃
-
Heating section length:
-
140+140+140mm
-
Thermocouple model:
-
K type
Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
RSE
-
Model Number:
-
RSE- VTL1200-1200-1200, VTL1200-1200-1200
-
Place of Origin:
-
Guangdong, China
-
Maximum input power:
-
5.4KW
-
Lifting speed:
-
0.1~2000 μ M/s (adjustable)
-
Lifting stroke:
-
0-100mm (customizable according to requirements)
-
Furnace tube size:
-
Dia60(OD)*1300mm
-
maximum temperature:
-
1200 ℃
-
Rated temperature:
-
1150 ℃
-
Heating section length:
-
140+140+140mm
-
Thermocouple model:
-
K type
PRODUCT DESCRIPTION
characteristic

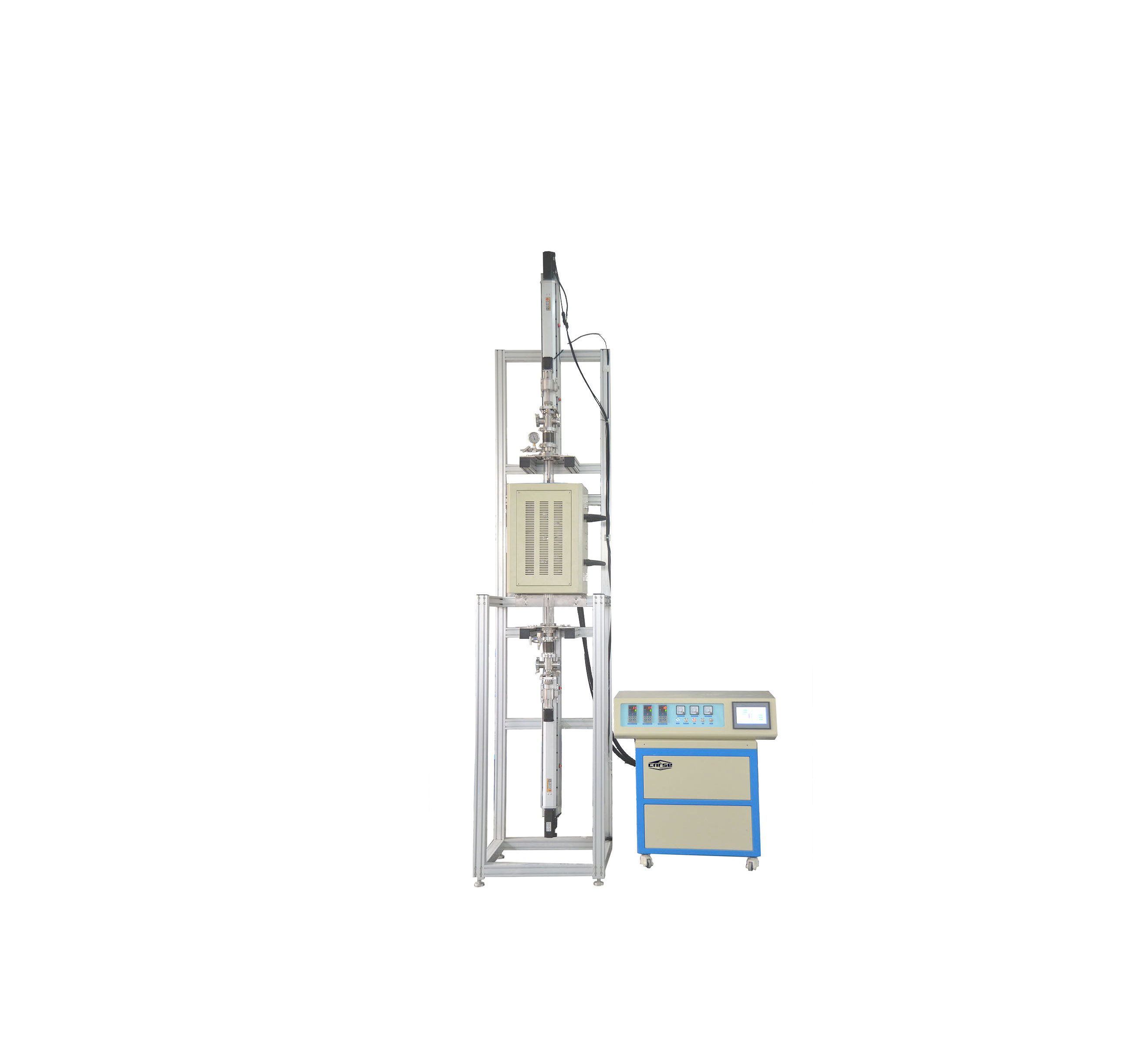

1. This furnace has multiple functions, which can be used as a crystal growth furnace, a rapid cooling and heating tube furnace, or a regular vertical tube furnace
2. Adopting imported European 3504 instruments, with high temperature control accuracy of ± 0.1 degrees
3. Quartz tube or stainless steel tube can be used, with a maximum temperature of 900 degrees Celsius when using stainless steel tube
4. The motor drives the furnace body to lift and install a limit switch, ensuring that there is no overshoot during lifting and lowering
5. The lifting speed of the furnace body is controllable, and the lifting stroke can be customized according to customer requirements
6. The crucible can be hung with hanging wires or placed on the material support below
European instruments
1: High precision temperature instrument, LCD display screen, 5-digit numerical display, simple configuration through quick setting, and C/F unit switching.
2: 50 sets of programs with 500 steps, power outage or shutdown. Restarting the program can be set to start the program from the power outage or starting point, and also has functions such as running, pausing, skipping, stopping, and resetting.
3: Standard 3 sets of PID parameters (optional 8 sets of PID parameters), with built-in PID self-tuning function.
4: Mathematical/logical operation, timer function, alarm function, mathematical and logical operation function, such as automatic/manual switching between sensors and infrared sensors, high-temperature furnace logic control function, and related alarm strategies and functions.
5: Formula function, different products can call different parameters
6: Customer customized screen function, displaying current values, set values, output%, program running status and time, etc,
7: Supports various communication interfaces Modbus, Ethernet, Profibus, Devicenet, and can be integrated with any PLC or upper system
8: OEM password function
9: Multi language support (English, French, German, Spain, Italy)
10: PC version of iTools graphical configuration software, convenient for configuration, monitoring, and debugging
11: UL/CE certification
chamber of a stove or furnace
1. High quality and high-purity alumina polycrystalline fiber curing furnace formed by vacuum filtration.
2. The spacing and pitch of the resistance wires in the furnace are all arranged according to mature Japanese thermal technology, and the temperature field is simulated through thermal software
3. Adopting 4-week heating, the temperature field is more balanced
Resistance wire
(1) The surface temperature can reach up to 1420 ℃
(2) The surface is stainless steel color (very bright, customer recognition should be noted), will not rust, and will not fall off slag no matter how long it is used.
(3) Good resistance balance and temperature field balance
Can be connected to a computer
The furnace is equipped with communication interfaces and software, which can directly control various parameters of the furnace through a computer. The PV and SV temperature values on the furnace and the operation of the instruments can be observed from the computer. The actual temperature rise curve of the furnace will be plotted in real-time by the computer, and the temperature data at each time can be saved, which can be called up at any time
SPECIFICATION
|
model
|
VTL1200-1200-1200-I
|
|
VTL1200-1200-1200-II
|
|
|||
|
power
|
5.4KW
|
|
5.4KW
|
|
|||
|
Furnace tube size
|
Dia60(OD)X1300mm
|
|
Dia80(OD)X1300mm
|
|
|||
|
Overall dimensions (mm)
|
Furnace body part 700X650X3600 Electrical part 900X650X900
|
|
|
|
|||
|
supply voltage
|
220V
|
|
|
|
|||
|
Phase number
|
single-phase
|
|
|
|
|||
|
Pulling mechanism
|
The controller controls the lifting speed, lifting stroke, and rotational speed of the lifting mechanism
Pulling speed: 0.1-2000 μ m/s
Pulling stroke: 0-100mm (customizable according to customer needs)
Speed：0-40RPM
|
|
|
|
|||
|
Lowering mechanism
|
The crucible is supported by a quartz bracket
Pulling speed: 0.1 μ m/s~2000 μ m/s
Descending stroke: 0-150mm (customizable according to customer needs)
speed：0-40RPM
Can be used for Directional solidification
|
|
|
|
|||
|
Heating element
|
Resistance wire
|
|
|
|
|||
|
control accuracy
|
+/- 1 ℃
It can be increased to+/-0.1 ℃ using a continental thermometer
|
|
|
|
|||
|
trigger
|
Phase shift trigger
|
|
|
|
|||
|
Thyristor
|
106/16E
|
|
|
|
|||
|
Maximum temperature in zone 1
|
1200 ℃
|
|
|
|
|||
|
Maximum temperature in zone 2
|
1200 ℃
|
|
|
|
|||
|
Rated temperature of temperature zone 1
|
1100 ℃
|
|
|
|
|||
|
Rated temperature of temperature zone 2
|
1100 ℃
|
|
|
|
|||
|
heating rate
|
≤ 30 ℃/Min (can be modified according to requirements)
|
|
|
|
|||
|
Recommended heating rate
|
≤15 ℃/ Min
|
|
|
|
|||
|
Thermocouple model
|
K type
|
|
|
|
|||
|
Heating section length
|
140+140+140mm
|
|
|
|
|||
|
Constant temperature zone length
|
300~350
|
|
|
|
|||
|
vacuum degree（choice）
|
1. Generally, a TW-1.5A single stage pump is used to roughly vacuum and expel the gas from the furnace tube.
2. The two-stage pump2XZ-2 vacuum pump can pump the vacuum degree of the tube furnace tube to about 10Pa.
3. The VS-0.1 vacuum system can pump the vacuum degree inside the tube furnace tube to 0.1Pa (and is equipped with a resistance vacuum gauge display).
4. The VS high vacuum system (which is composed of molecular and mechanical pumps) can pump the vacuum degree inside the tube furnace tube to
10-3 Pa.
5. Constant pressure pump (this system can control the pressure inside the pipe between -100.0KPa and 100.0KPa).
|
|
|
|
|||
|
Lower vacuum flange
|
1. In order to increase the pumping rate and achieve higher vacuum requirements. The original hose connector can be replaced withKF-25 interface (both VS-0.1 and VS high vacuum system interfaces are KF25)
2. If used in the gas supply system, the original hose joint can be replaced with Φ 6.35mm double ferrule joint
|
|
|
|
|||
|
Surrounding surface temperature
|
≤45℃
|
|
|
|
|||
|
Cover opening safety protection system
|
The furnace body is equipped with an air switch and fuse. When the current exceeds the rated current of the air switch, the air switch automatically jumps off, effectively protecting the electric furnace.
|
|
|
|
|||
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. lf the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T/T, LIC, D/P, etc., it is recommended to use Alibaba Trade Guarantee.
Q.How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
