Quick Details
-
Voltage:
-
220v/380V
-
Dimension(L*W*H):
-
80*80*150cm
-
Power (kW):
-
11kw
-
Weight (KG):
-
200 KG
-
Product Name:
-
Factory Direct sound insulation pu spray machine
-
Applicable materials:
-
PU Chemical A+B,polyurea coating A+B
-
Application:
-
Spray Wall,roof,house
-
Drive mode:
-
pneumatic Pressure
-
Air source:
-
0.5-0.8mpa 0.9m3/min
-
Max output flow:
-
2-12kg/min
-
Max heating hose length:
-
75m
-
Heating power:
-
11kw
-
Insulation material mixing ratio:
-
1:1 or 1:2(variable)
-
Cleaning:
-
Self Cleaning
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JX
-
Machine Type:
-
Fast Mould Change machine
-
Voltage:
-
220v/380V
-
Dimension(L*W*H):
-
80*80*150cm
-
Power (kW):
-
11kw
-
Weight (KG):
-
200 KG
-
Product Name:
-
Factory Direct sound insulation pu spray machine
-
Applicable materials:
-
PU Chemical A+B,polyurea coating A+B
-
Application:
-
Spray Wall,roof,house
-
Drive mode:
-
pneumatic Pressure
-
Air source:
-
0.5-0.8mpa 0.9m3/min
-
Max output flow:
-
2-12kg/min
-
Max heating hose length:
-
75m
-
Heating power:
-
11kw
-
Insulation material mixing ratio:
-
1:1 or 1:2(variable)
-
Cleaning:
-
Self Cleaning
Factory Direct sound insulation pu spray machine
Product Description
pneumatic
driven machine-A1 model
Factory Direct sound insulation pu spray machine
pneumatic driven machine-A1 model
Factory Direct sound insulation pu spray machine
JX-A1 is a professional,cost effective pu spray machine,it and inject machine,it is high pressure with heating industry machine,
It has complete functions. It can not only spray polyurethane foam for house insulation and sound insulation, but also spray polyurea coating for waterproofing, trucks, etc., and can also inject polyurethane foam for plates, etc
Product Paramenters
|
item
|
Factory Direct sound insulation pu spray machine
|
|
Drive mode
|
Pneumatic Pressure
|
|
Air source
|
0.5-0.8mpa 0.9m3/min
|
|
Max output flow
|
2-12kg/min
|
|
Max heating hose length
|
75m
|
|
Heating power
|
11kw
|
|
Maximum output pressure
|
15Mpa
|
|
AB material mixing ratio
|
1:1
|
|
Voltage
|
220v/380V
|
|
Dimension(L*W*H)
|
80*80*150CM
|
|
Weight (KG)
|
200KG
|
|
Applicable materials
|
PU Chemical A+B,polyurea coating A+B
|
Details Images
|

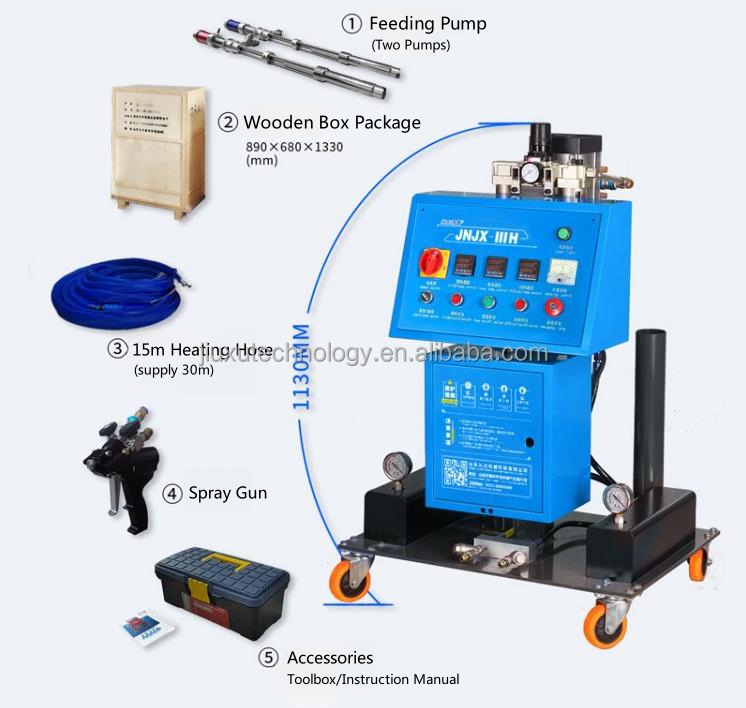

Packing lists:
|
|
|
|
|||
|
Main machine
|
1 SET
|
P2 spray gun
|
1 SET
|
|||
|
lift pump
|
2 Pieces
|
15m heating hose
|
1 SET
|
|||
|
Main air pipe
|
1 SET
|
Spray gun connector
|
2 Pieces
|
|||
|
Feed delivery pipes
|
2 Pieces
|
Air delivery pipes
|
1 SET
|
|||
|
Accessories box
|
1 SET
|
Manual
|
1 Copy
|
|||
