Quick Details
-
Power:
-
10W-1500W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GIMIDO
-
Model Number:
-
GLCT-014
-
Dimension(L*W*H):
-
10*10*10
-
Weight:
-
0.1
-
Warranty:
-
1year
-
After-sales Service Provided:
-
Overseas service center available
-
Material:
-
stainless steel
-
Certification:
-
CE
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
12V-415V
-
Power:
-
10W-1500W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GIMIDO
-
Model Number:
-
GLCT-014
-
Dimension(L*W*H):
-
10*10*10
-
Weight:
-
0.1
-
Warranty:
-
1year
-
After-sales Service Provided:
-
Overseas service center available
-
Material:
-
stainless steel
-
Certification:
-
CE

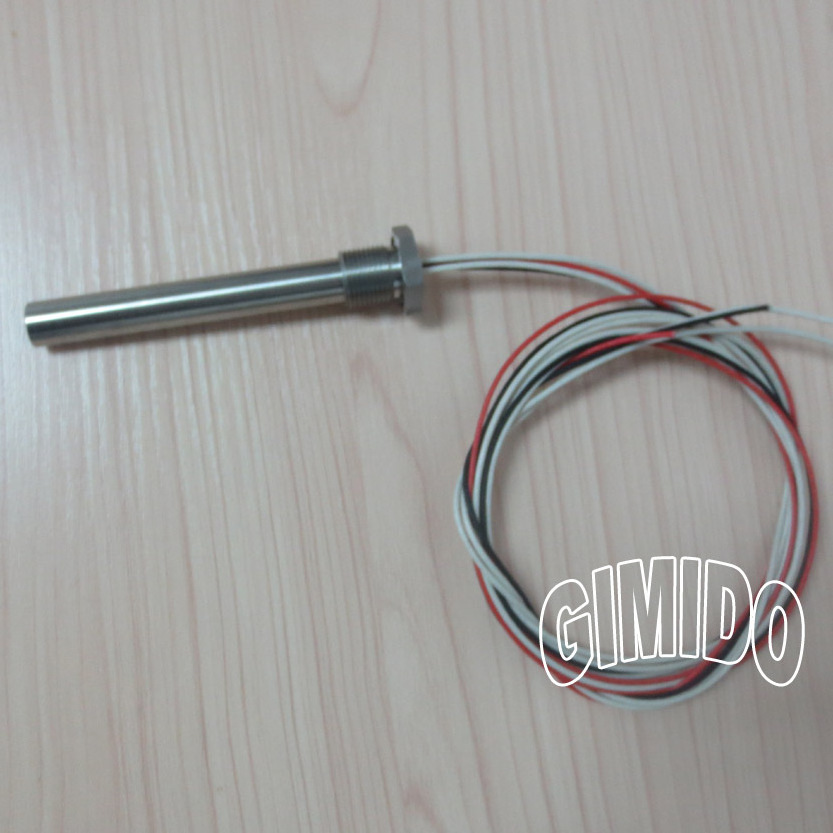

Cartridge Heater Element, Cartridge Heater Element with thermocouple type K/J
Diameter: from 3.0 to 25mm;
Material: Stainless steel 304,316,840,800;
Max Temperature: 700 Deg;
GIMIDO'S Cartridge Heaters are uniquely designed to fit into metal blocks, dies, platens, molds etc.
GIMIDO's Cartridge Heaters Features Include:
Part temperatures to 800 Celsius degree;
Swaged cartridge heaters with total quality control;
Nickel chromium resistance wire;
Magnesium oxide insulation of high purity and tight compaction;
Incoloy sheath corrosion and oxidation resistant;
Superior heat transfer due to minimum spacing between wire and sheath;
Fast shipment;
|
Material |
SUS304,316L,321,Incoloy800,840,600 |
|
Diameter |
3mm~50mm |
|
Brand |
GIMIDO |
|
Model |
Cartridge heater |
|
Max operating temp |
870ºC(1600F) |
|
Length tolerance |
±2% or 3.2mm (1/8”), whichever is greater |
|
Standard Unheated Area |
5-10mm; |
|
Delivery time: |
7-14 working days.However, many sizes are kept in stock. Please contact the factory for assistance. |
|
Internal thermocouple |
type J,K or E; |
|
Wattage Tolerance |
+5%, -10% |
GIMIDO's Cartridge Heaters Specifications Include:
Dimensions: Diameter 5mm to 25.4mm, Maximum length 1500mm;
Voltage: 12volts to 600volts AC/DC 1 or 3 phase;
Watt Densities: Maximum 20watts/sq.cm.;
Wattage Tolerance: +5%,-10%;
Resistance Tolerance: +10%,-5%;
Length Tolerance: +-0.1mm;
Diameter Tolerance: +-0.01mm;
Standard Unheated Area: 5-10mm;
Internal thermocouple: Available J, K, R, S, T, N;
Thermocouple Location: Disc End, Sheath, Center of Heater;
