Quick Details
-
Power:
-
1.1kw
-
Min. Lifting Height:
-
standard
-
Table Size:
-
1000*1000mm
-
Overall Dimensions:
-
1000*1000*1000mm
-
Weight:
-
200 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cabin Clear Size:
-
750*750*900mm
-
Shaft Clear Size:
-
1250*900mm
-
Entrance Reserved Size:
-
750*1000*600mm
-
Usage:
-
Food Dumbwaiter
-
Keywords:
-
Restaurant Elevator
-
Material:
-
Stainless Steel
-
Voltage:
-
110v 220v 240v 380v Optional
-
Control methods:
-
Control Button
-
Lifting speed:
-
0.05-0.09m/s
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WL
-
Power:
-
1.1kw
-
Min. Lifting Height:
-
standard
-
Table Size:
-
1000*1000mm
-
Overall Dimensions:
-
1000*1000*1000mm
-
Weight:
-
200 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cabin Clear Size:
-
750*750*900mm
-
Shaft Clear Size:
-
1250*900mm
-
Entrance Reserved Size:
-
750*1000*600mm
-
Usage:
-
Food Dumbwaiter
-
Keywords:
-
Restaurant Elevator
-
Material:
-
Stainless Steel
-
Voltage:
-
110v 220v 240v 380v Optional
-
Control methods:
-
Control Button
-
Lifting speed:
-
0.05-0.09m/s

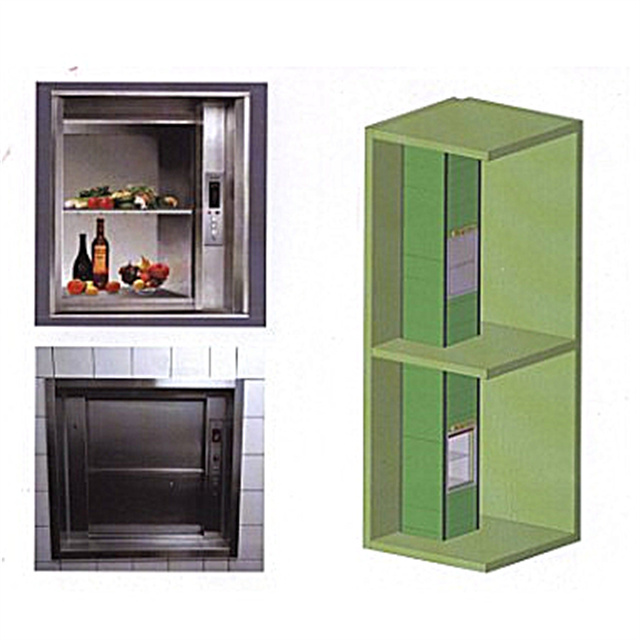

Dumbwaiters are small freight elevators (or lifts) intended to carry objects rather than people. Dumbwaiters found within modern structures, including both commercial, public and private buildings, are often connected between multiple floors.
When installed in restaurants, schools, kindergartens, hospitals, retirement homes or in private homes, the lifts generally terminate in a kitchen.
Main Features
1.
High quality material
Our dumbwaiters lifts are usually made of stainless steel, so they are not affected by steam, hot food, water, etc. Hospitals and departmental stores also need our products to carry stores to different levels in the building.
2.Small space to install
Only about a small space is required in the building to fit our dumbwaiter.
3.Easily installation
Only one wall is required to support the smaller ones. We offer both traction and hydraulic dumbwaiter elevators, giving our customers more options.
4.Customized dumbwaiter
Available in varied types, sizes and other specifications, these dumbwaiters are subject to customization at the exact requirements from our clients.
|
Food Elevator Dumbwaiter |
||||||||||
|
Model |
Load (KGS) |
Type |
Cabin Clear Size |
Shaft Clear Size |
Overhead Height |
Pit Depth |
Entrance Reserved Size |
Motor Power(KW) |
||
|
W*D*H |
W*D |
F |
G |
H |
||||||
|
WLE-1 |
100 |
Window Type |
750*750*900 |
1250*900 |
>=3600 |
- |
750 |
1000 |
600 |
1.1 |
|
Trolley Type |
600 |
- |
1.1 |
|||||||
|
WLE-2 |
200 |
Window Type |
900*900*1000 |
1400*1100 |
- |
900 |
1100 |
800 |
1.5 |
|
|
Trolley Type |
800 |
- |
1.5 |
|||||||
|
WLE-2.5 |
250 |
Window Type |
950*950*1000 |
1450*1150 |
- |
950 |
1100 |
800 |
2.2 |
|
|
Trolley Type |
800 |
- |
2.2 |
|||||||
|
WLE-3 |
300 |
Trolley Type |
1000*1000*1100 |
1500*1200 |
1200 |
1000 |
1200 |
- |
3 |
|
|
WLE-5 |
500 |
Trolley Type |
1100*1100*1200 |
1600*1300 |
1200 |
1100 |
1300 |
- |
||
Packaging: Plywood boxes or according to your requirements
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Shipping: 10 days after confirm the order.
2. The total machine guarantee is 12 moths .
3. Reply your inquiry in 24 working hours .
4. Customized design is available, OEM are welcomed.
5. Delivery the goods to our customer all over the world with speed and precision .
6. Offer customer the product with high quality lifting machine.
Q: Who are you? Trade Company or manufacturer?
A: We are manufacturer and we have our own trade company.
Q:
When the product can be delivered?
A: Commonly the lead time will be within 10 days after payment.
Q:
What’s the Min order to your company?
A:1 set.The sample order, if we have stocks, we will send out the products within 1 week.
Q:
What need you know when i inquiry to you ?
A: We need to know your Max Capacity,Platform size and Lift height.
