Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
3.0KW/4.5KW/5.5KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LINTCNC
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
310*185*160cm
-
Power (kW):
-
5
-
Weight (KG):
-
1550
-
Warranty of core components:
-
9 months
-
Core Components:
-
Spindle
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Type:
-
photo frames cnc router 1325 price
-
Spindle:
-
water cooling spindle
-
Table structure:
-
vacuum table
-
Body frame:
-
heavy duty cast iron
-
Spindle speed:
-
0-24000RMP
-
Controlling system:
-
Ncstudio or DSP handle
-
Guide rail:
-
Taiwan Hiwin liner rail
-
Traveling system:
-
Stepper / Delta
-
OEM:
-
YES
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
3.0KW/4.5KW/5.5KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LINTCNC
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
310*185*160cm
-
Power (kW):
-
5
-
Weight (KG):
-
1550
-
Warranty of core components:
-
9 months
-
Core Components:
-
Spindle
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Type:
-
photo frames cnc router 1325 price
-
Spindle:
-
water cooling spindle
-
Table structure:
-
vacuum table
-
Body frame:
-
heavy duty cast iron
-
Spindle speed:
-
0-24000RMP
-
Controlling system:
-
Ncstudio or DSP handle
-
Guide rail:
-
Taiwan Hiwin liner rail
-
Traveling system:
-
Stepper / Delta
-
OEM:
-
YES
Products Description
Machine details
|
Model
|

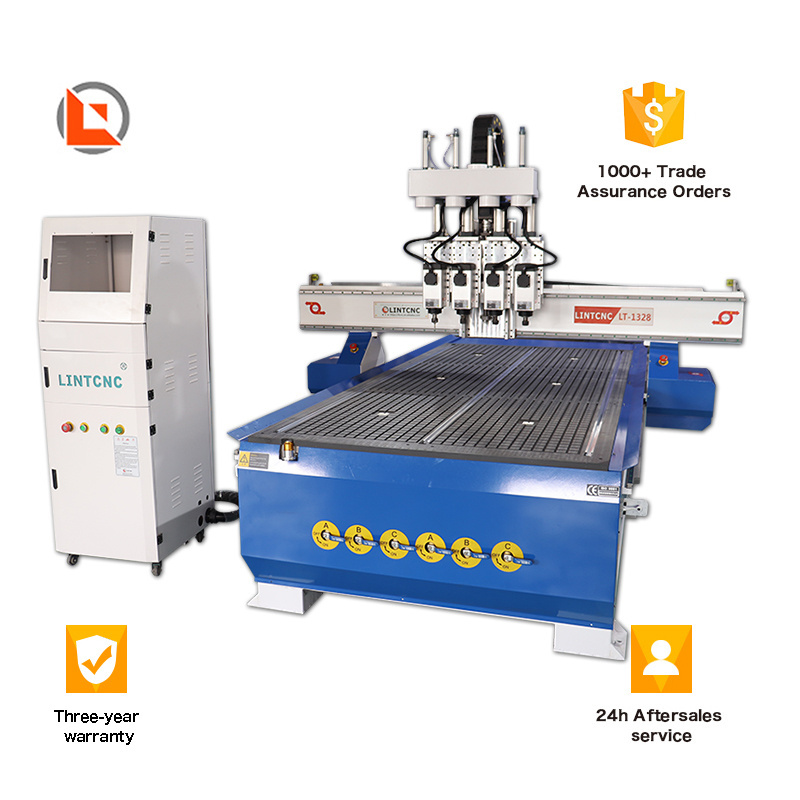

LT-1325 Wood CNC Router
|
|
Working area
|
1300(X)*2500(Y)*200(Z)
|
|
Machine structure
|
Welded steel tube, cast iron vertical shafts and steel gantry
|
|
Table surface
|
Aluminum T-slot table & PVC
|
|
Spindle
|
3.0KW water cooling spindle
|
|
Spindle rotating speed
|
0-24000 rpm
|
|
Collect size
|
ER20
|
|
Guide rail
|
Hiwin linear square guide rail
|
|
Driving method
|
X,Y axis by helical gear rack, Z axis by TBI ball screw
|
|
Motors and drivers
|
86BYG-450B Stepper motors and MA860 Leadshine drivers
|
|
Control system
|
NC studio control system
|
|
Inverter
|
Fuling inverter
|
|
Max. idling speed
|
25m/min
|
|
Max. working speed
|
12m/min
|
|
Working accuracy
|
<0.05/300mm
|
|
Instruction formate
|
G code *.u00 *.mmg *.plt
|
|
Working voltage
|
AC220V,single phase,50-60Hz
|
|
Standard software
|
Artcam2010
|
|
Compatible software
|
Type3/Castmate/Coreldraw/AutoCAD and other CAM/CAD software
|
|
Control cabinet
|
Independent
|
|
Wires
|
JieXun All Copper Cable ,With CE, UL, CSA, certification. High soft shield with copper wire to protect against static electricity
|
|
Other
|
Tool sensor; Water pump; Tool box,English manuals
Hygrothermograph etc. |
Feedback and Sample
1. Furniture Industry:
Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Mold Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Mold Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Feedback
Please
click
and view the feedback video from our customers.
Our services
1.Guarantee:
3 years guarantee of the whole machine+1.5 years warranty for motor and spindle
2.Software issue:
Supply technical support for machine lifetime free.
3.Hardware issue:
Main parts(excluding the consumables) shall be replaced/ repaired free of charge if there is any problem during the warranty period.
4.Support online:
our engineer give 1 hours to solve question online.
5.Training in LINTCNC factory:
We are able to train your staff after placed order in our factory for free.
6.Oversea service:
We are able to send technician to your workshop to do the installation and training. You will need bear the
related costs. (flight,visa,hotel,training costs, etc.)
2.Software issue:
Supply technical support for machine lifetime free.
3.Hardware issue:
Main parts(excluding the consumables) shall be replaced/ repaired free of charge if there is any problem during the warranty period.
4.Support online:
our engineer give 1 hours to solve question online.
5.Training in LINTCNC factory:
We are able to train your staff after placed order in our factory for free.
6.Oversea service:
We are able to send technician to your workshop to do the installation and training. You will need bear the
related costs. (flight,visa,hotel,training costs, etc.)
