Quick Details
-
Certification:
-
CE ISO
-
Model:
-
FT-3000P
-
Rated Power(w):
-
3000w
-
Rated Voltage(v):
-
96/120v
-
Rated Rotated Speed(r/m):
-
300r/m
-
Top Net Weight(kg):
-
70kg
-
Output Current:
-
AC
-
Generator:
-
3 Phase Permanent Magnet Synchronous Generator
-
Insulation Class:
-
F
-
Shaft Material:
-
Iron with quenching and tempering Treatment
-
Frequency:
-
50 / 60 Hz
-
Warranty:
-
3 years
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Fengteng
-
Model Number:
-
FT-3000P
-
Certification:
-
CE ISO
-
Model:
-
FT-3000P
-
Rated Power(w):
-
3000w
-
Rated Voltage(v):
-
96/120v
-
Rated Rotated Speed(r/m):
-
300r/m
-
Top Net Weight(kg):
-
70kg
-
Output Current:
-
AC
-
Generator:
-
3 Phase Permanent Magnet Synchronous Generator
-
Insulation Class:
-
F
-
Shaft Material:
-
Iron with quenching and tempering Treatment
-
Frequency:
-
50 / 60 Hz
-
Warranty:
-
3 years

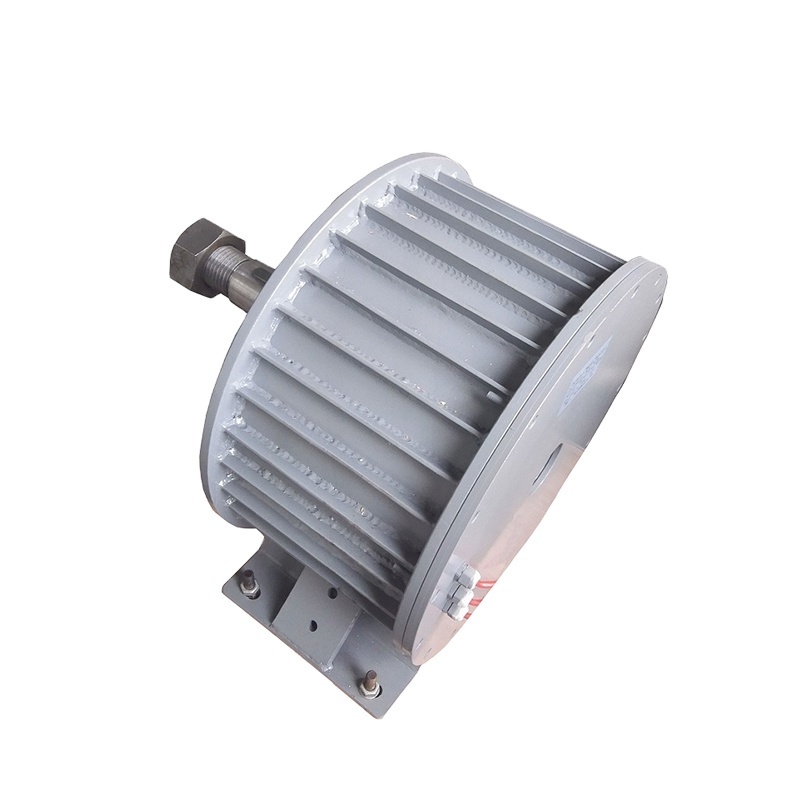

Picture of 3kw direct drive permanent magnet synchronous generator factory
Detail parts of 3kw direct drive permanent magnet synchronous generator factory
F eatures of 3kw direct drive permanent magnet synchronous generator factory
- Low start up speed
- Low cogging torque
- Suitable for both Horizontal and Vertical Turbines
- Gearless, direct drive, low RPM generator
- Alternator generator Type permanent magnet generator
- For use in all environments
- Excellent heat dissipation
- Designed for 20-year operation life.
Parameters of 3kw direct drive permanent magnet synchronous generator factory
|
Model |
NE-3000P |
|
Rated Power(w) |
3000w |
|
Max Power(w) |
4800w |
|
Rated Voltage(v) |
96/120v |
|
Rated Rotated Speed(r/m) |
300r/m |
|
Top Net Weight(kg) |
70kg |
|
Output Current |
AC |
|
Start Torque(N*M) |
0.96Nm |
|
Rated Torque(N*M) |
95.5Nm |
|
Generator |
3 phase permanent magnet synchronous generator |
|
Insulation Class |
F |
|
Service Life |
More Than 20 years |
|
Bearing |
HRB or for your order |
|
Shaft Material |
Iron |
|
Shell Material |
Carbon Steel |
|
Permanent Magnet Material |
Rare Earth NdFeB |
|
Protection Grade |
IP54 |
|
Lubrication |
Lubrication Grease |
|
Working Temperature |
-40℃ - 80 ℃ |
System drawing for 3kw direct drive permanent magnet synchronous generator factory
Standard packing for 3kw direct drive permanent magnet synchronous generator factory
