Quick Details
-
Applicable Models:
-
12V Cars and 24V diesel vehicles, 12v Battery Analyzer for Cars and 24V diesel vehicles
-
Place of Origin:
-
GUA
-
Brand Name:
-
OEM
-
Model Number:
-
ET2210
-
Warranty:
-
12 Months, 1 year
-
Working voltage:
-
12V/24V
-
Color:
-
Black/OEM
-
Connector:
-
Two Clips
-
OEM/ODM:
-
Support
-
Size:
-
57*37*150mm
-
Weight:
-
80g
-
Packing:
-
Box
Quick Details
-
Car Fitment:
-
Universal
-
Voltage:
-
12V/24V
-
Power:
-
24W
-
Applicable Models:
-
12V Cars and 24V diesel vehicles, 12v Battery Analyzer for Cars and 24V diesel vehicles
-
Place of Origin:
-
GUA
-
Brand Name:
-
OEM
-
Model Number:
-
ET2210
-
Warranty:
-
12 Months, 1 year
-
Working voltage:
-
12V/24V
-
Color:
-
Black/OEM
-
Connector:
-
Two Clips
-
OEM/ODM:
-
Support
-
Size:
-
57*37*150mm
-
Weight:
-
80g
-
Packing:
-
Box
Product Description
Parameters:
|
Item Type
|
12V/24V Auto intelligent Battery Tester
|
|
Gross Weight
|
0.08 Kg
|
|
Shell material
|
ABS+ Plastic
|
|
Voltage
|
12v/24V
|
|
LED quantity
|
7
|
|
Box Size
|
57*37*150mm
|
|
Product size
|
53*140*17mm
|
|
OEM/ODM
|
Support
|
|
Function
|
Check and test the capacity, load capacity and charging capacity of the battery.
|
|
Applicable model
|
Suitable for 12V battery cars and 24V battery diesel vehicles
|
How to Connect
Attach the cabla clip of the red cable to the positive(+) of the battery and the black to the negative (-).
How to operate
Connect the testing device. Start the engine and switch off the headlights, radio etc. Star the engine again and switch on the headlights, radio etc. In both cases, then green signal LED "GOOD" should shine. The red signal LED " Defective" will start to shine if the dynamo in bad condition. If the situation happen, please go to local car workshop in your earliest time.
2) Checking The Charging Level
Switch on the headlights for 1-2 minutes, then switch off. Remove the cable clips from the battery, wait approx. 10 mins then switch the testing device on again. A signal LED will shine according to the charging status of the battery indicating " Full" "Half-full" or "Very low charge" .
3) Battery Start Capability
The battery needs to be charged up to the maximum. Remove the connection of the ignition coil then connect the testing device. Try to start the vehicle using the key in the ignition switch. The engine cannot start (interrupted ignition). When the green signal LED "Battery OK" starts to shine, the charging status of the battery is ok.
4) Start The Battery Capability Load
Switch to the loading test mode, then start the engine.
Full: six-five LED will be shine ;
Middle: four-three LED will be shine ;
Low: two-one LED will be shine, if no LED shine it means the battery capacity is very low, please charging the battery or change the battery.
The battery needs to be charged up to the maximum. Remove the connection of the ignition coil then connect the testing device. Try to start the vehicle using the key in the ignition switch. The engine cannot start (interrupted ignition). When the green signal LED "Battery OK" starts to shine, the charging status of the battery is ok.
4) Start The Battery Capability Load
Switch to the loading test mode, then start the engine.
Full: six-five LED will be shine ;
Middle: four-three LED will be shine ;
Low: two-one LED will be shine, if no LED shine it means the battery capacity is very low, please charging the battery or change the battery.
Note:
If the battery is not in good condition, the signal lamp "Battery OK" will start to go off and charging status of the battery LED will not light up.
If the battery is not in good condition, the signal lamp "Battery OK" will start to go off and charging status of the battery LED will not light up.
Status of LED
Switch to the left is Battery Load Test Mode:
*12V Green LED: Current test battery is 12V
* Full Green LED: Indicates that the battery is in good condition and has a good load capacity
* Middle Yellow LED: Indicating that the battery is in very moderate condition, the carrying capacity is average
* Low Red LED: Indicates poor battery condition and low load capacity
Switch to the right is Battery Charging Test Mode:
* 24V Red LED: Current test battery is 24V
* Fault Red LED: Abnormal battery condition, high voltage
* Good Green LED: Normal working voltage
* Full Green LED: Good battery condition
* Middle Yellow LED: Medium battery
* Low Red LED: Low power, need to be charged
* OK Green LED: Check before charging
*12V Green LED: Current test battery is 12V
* Full Green LED: Indicates that the battery is in good condition and has a good load capacity
* Middle Yellow LED: Indicating that the battery is in very moderate condition, the carrying capacity is average
* Low Red LED: Indicates poor battery condition and low load capacity
Switch to the right is Battery Charging Test Mode:
* 24V Red LED: Current test battery is 24V
* Fault Red LED: Abnormal battery condition, high voltage
* Good Green LED: Normal working voltage
* Full Green LED: Good battery condition
* Middle Yellow LED: Medium battery
* Low Red LED: Low power, need to be charged
* OK Green LED: Check before charging

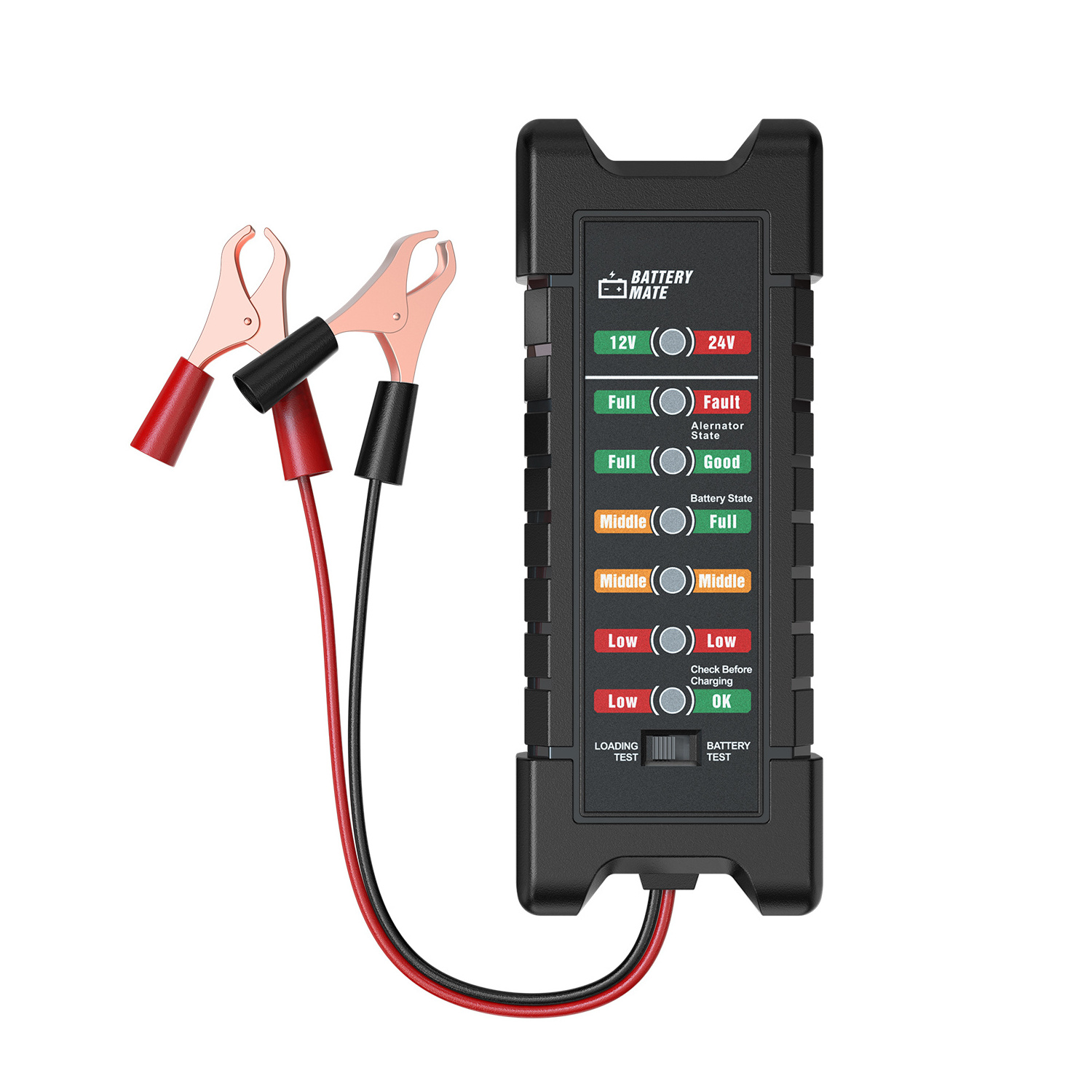

Product images
Packaging & Delivery
|
Packing list
|
|
1 x Battery Tester
|
|
1 x Carton box
|
|
1 x manual
|
|
|
|
|
Shipping:
1. For small order, products will be shipped with 1-3 working days. For OEM/ODM order, please check the shipping time with us.
2. We can send out goods by express (UPS/DHL/TNT/FEDEX), by air, by sea. Or to your shipping agent/forwarder. Our customer decides the way for delivery. We always get cheapest freight from forwarder for our customers.
2. We can send out goods by express (UPS/DHL/TNT/FEDEX), by air, by sea. Or to your shipping agent/forwarder. Our customer decides the way for delivery. We always get cheapest freight from forwarder for our customers.
Payment Terms:
We accept Alibaba Trade Assurance, Paypal, West Union, T/T and Bank Transfer.
Kindly note that some transaction fee will be charged by Paypal.
Kindly note that some transaction fee will be charged by Paypal.
Our service
1.We supply OED&ODM service
2.Custom products and packing as per customer's request;
3.All goods must pass QA,QC,FQC inspect and test to ensure High quality;
5.We ensure fast delivery. Most goods have inventory, OEM order about 15-30days.
6.We can supply drop shipping,and help customers to supply cheapest and ecnomic Express shipment for small qty;
7.We can collect all goods to ship for our customers.
8.We can source other relative products.
2.Custom products and packing as per customer's request;
3.All goods must pass QA,QC,FQC inspect and test to ensure High quality;
5.We ensure fast delivery. Most goods have inventory, OEM order about 15-30days.
6.We can supply drop shipping,and help customers to supply cheapest and ecnomic Express shipment for small qty;
7.We can collect all goods to ship for our customers.
8.We can source other relative products.
