Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
FORWARD
-
Voltage:
-
380V 50Hz 3phases
-
Dimension(L*W*H):
-
6500*1300*1100
-
Weight:
-
2.5T
-
Production Name:
-
galvanized steel shop slat rolling shutter door roll forming machine
-
Roller material:
-
Cr12 Steel Quenched
-
Shaft material:
-
45# Steel Diameter: 50mm
-
Raw material:
-
GI,PPGI
-
Cutting blade material:
-
Cr 12 Mov
-
PLC Control system:
-
Taiwan or Japan Brand
-
Forming Stations:
-
12 Stations
-
Machine Frame:
-
6mm steel plate welded
-
Transmission:
-
Gear
-
Certification:
-
CE/ISO9001
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Glaze Steel
-
Production Capacity:
-
8-15M/Min
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
FORWARD
-
Voltage:
-
380V 50Hz 3phases
-
Dimension(L*W*H):
-
6500*1300*1100
-
Weight:
-
2.5T
-
Production Name:
-
galvanized steel shop slat rolling shutter door roll forming machine
-
Roller material:
-
Cr12 Steel Quenched
-
Shaft material:
-
45# Steel Diameter: 50mm
-
Raw material:
-
GI,PPGI
-
Cutting blade material:
-
Cr 12 Mov
-
PLC Control system:
-
Taiwan or Japan Brand
-
Forming Stations:
-
12 Stations
-
Machine Frame:
-
6mm steel plate welded
-
Transmission:
-
Gear
-
Certification:
-
CE/ISO9001

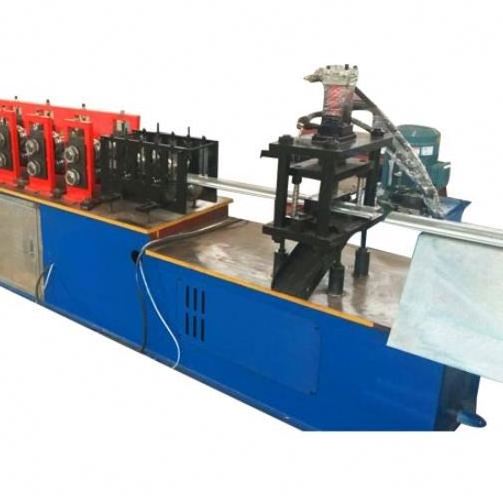

Holes Punching Roller Shutter Door Forming Machine Manufacturers
|
Suitable material |
Color steel sheet , galvanized steel sheet, |
|
Main motor power |
5.5 KW with Cycloidal reducer |
|
Hydraulic station power |
5.5KW(Lichao,Shanghai) |
|
Hydraulic oil |
36#,40# |
|
Thickness of material |
0.3mm~0.8mm |
|
Diameter of principal axis |
Φ50mm |
|
Material expand width |
140-180mm |
|
Electric tension |
380V 3phase 50HZ or as the customer's requirements |
|
Material of roller |
Cr12 steel quenched |
|
Rolling galvanization thickness |
0.05mm |
|
Processing speed |
15-20m/min |
|
Processing precision within |
10m+/-1.00mm |
|
Material of cutting blade |
Cr12Mov with quenched treatment |
|
Kind of drive |
Gear driving |
Q1. What's your payment terms and delivery time?
A1:
30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery.
Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: W
e provide 18 months free warranty and free technical support
for the whole life of any machine.
If the broken parts can't repair, we can send the new parts
replace the broken parts freely, but you need pay the express cost by yourself.
If it is beyond the warranty
period,
we can negotiate to solve the problem, and we supply the technical support for the whole life
of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),
then we can pick up you.
