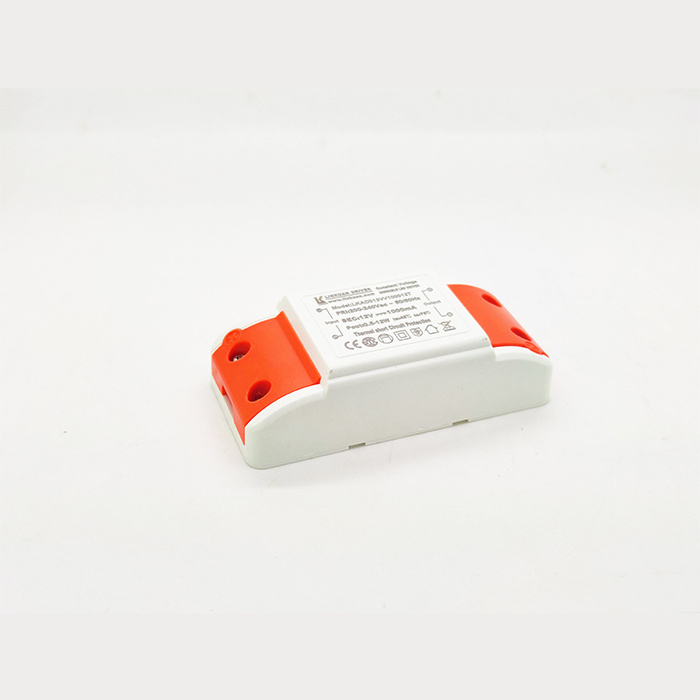

intertek 5 years warranty CE triac dimmable 12v 24v 12w 18w 20w led driver

intertek 5 years warranty CE triac dimmable 12v 24v 12w 18w 20w led driver

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2

≥50 Pieces

US $1.5

≥500 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: LKAD013V-TD

Output Frequency:: 50/60Hz

Certification:: CE ROHS EMC LVD For EU market

Size:: 93*45*28mm

Efficiency:: 80%

Type:: LED driver

Driver Mode:: Class 2 constant voltage TRIAC dimmable

THD:: <15%

Protections:: Short Circuit/over load/over voltage

protective class:: phase cut/mains dimming/Triac dimmable

Application:: LED Strips Lights mirror light 12V 24v indoor light

Product Name:: intertek triac dimmable 12v 24v 12w 18w 20w led driver

Quick Details

Warranty(Year):: 5-Year

Place of Origin:: Guangdong, China

Brand Name:: Linkuan

Model Number:: LKAD013V-TD

Output Frequency:: 50/60Hz

Certification:: CE ROHS EMC LVD For EU market

Size:: 93*45*28mm

Efficiency:: 80%

Type:: LED driver

Driver Mode:: Class 2 constant voltage TRIAC dimmable

THD:: <15%

Protections:: Short Circuit/over load/over voltage

protective class:: phase cut/mains dimming/Triac dimmable

Application:: LED Strips Lights mirror light 12V 24v indoor light

Product Name:: intertek triac dimmable 12v 24v 12w 18w 20w led driver

Product Description

What is a Constant Voltage LED Driver?

Constant voltage drivers are designed for a single direct current (DC) output voltage. Most common constant voltage drivers (or Power Supplies) are 12VDC or 24VDC. An LED light that is rated for constant voltage usually specifies the amount of input voltage it needs to operate correctly. A constant voltage power supply receives standard line voltage (120-277VAC). This is the type of power that is typically output from your wall outlets around the home. Constant Voltage Drivers switch this alternating current voltage (VAC) to a low direct current voltage (VDC). The driver will always maintain a constant voltage no matter what kind of current load is put on it. Most often, constant voltage drivers are implemented in under-cabinet lights and other LED flex strip applications but it is not limited to those categories.

Product Features

WHY USE A PHASE CUT (TRIAC DIMMABLE) C.V. LED DRIVER?

Phase cut LED drivers that can be used with leading edge (TRIAC) dimmers and leading edge dimmers that you find in most homes. This means that they are ideal if you are retrofitting LED lighting and want to be able to use the existing wiring and dimmer switches.They are also used in commercial retrofit projects. Most modern lighting control systems use either an analogue control signal, such as 1-10V, 0-10V or PWM to control the LED drivers, or the DALI lghting communications protocol. Typically, when installing LED lighting in a commercial project you will find that 0-10V, 1-10V, or DALI LED drivers are used. This sort of installation requires dedicated wiring to be run from the control systm to the LED driver, which means internal walls and ceilings need to be removed and replaced. With heritage sites it is not always possible to tear down walls and ceilings to run new wires. So, a solution that can work with existing wiring is required. Phase cut dimmable LED drivers are ideal because they don't require any dedicated wiring to be run to the LED driver. They can just be hooked up to the existiing wiring. If a DALI system is being used, then a simple DALI to trailing edge dimming converter can be installed

Product Paramenters

intertek 5 years warranty CE triac dimmable 12v 24v 12w 18w 20w led driver

INPUT	Input Voltage	200-240VAC
		Input frequency	50/60Hz
		Power Factor	0.9
OUTPUT	DC Voltage	12Vdc/24Vdc
		Rated Current	800mA/400mA
		Rated Power	3W-10W Max
		SETUP Rise Time	<0.5s
PROTECTION	Short circiut	Recovers automatically after fault condition is removed
		Overload	Overload protected @110-130% above peak rating
		Over Temperature	Shut down o/p voltage . re-power on to recover
		IP Code	IP20
ENVIRONMENT	Working TEMP.	-30-+50℃ (refer to output load derating curve)
ENVIRONMENT		Storage TEMP.	-40-+80℃
Safety & EMC	Safety Standards	CE
Safety & EMC		EMC Test Stardands	ROHS
DIMENSION	934528mm
