Quick Details
-
Model Number:
-
GM-200
-
Display:
-
4 Digits Backlit LCD
-
Range:
-
0.1~200 Gloss Units
-
Gloss Units:
-
GU
-
Accuracy:
-
±1.0GU
-
Resolution:
-
0.1
-
Repeatability:
-
±0.5GU
-
Power Supply:
-
3.7V Lithium Ion Rechargeable Battery
-
Dimensions:
-
140x45x75mm
-
Weight:
-
310g(Including Batteries)
-
Product name:
-
GlossMeter
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AERMANDA
-
Model Number:
-
GM-200
-
Display:
-
4 Digits Backlit LCD
-
Range:
-
0.1~200 Gloss Units
-
Gloss Units:
-
GU
-
Accuracy:
-
±1.0GU
-
Resolution:
-
0.1
-
Repeatability:
-
±0.5GU
-
Power Supply:
-
3.7V Lithium Ion Rechargeable Battery
-
Dimensions:
-
140x45x75mm
-
Weight:
-
310g(Including Batteries)
-
Product name:
-
GlossMeter

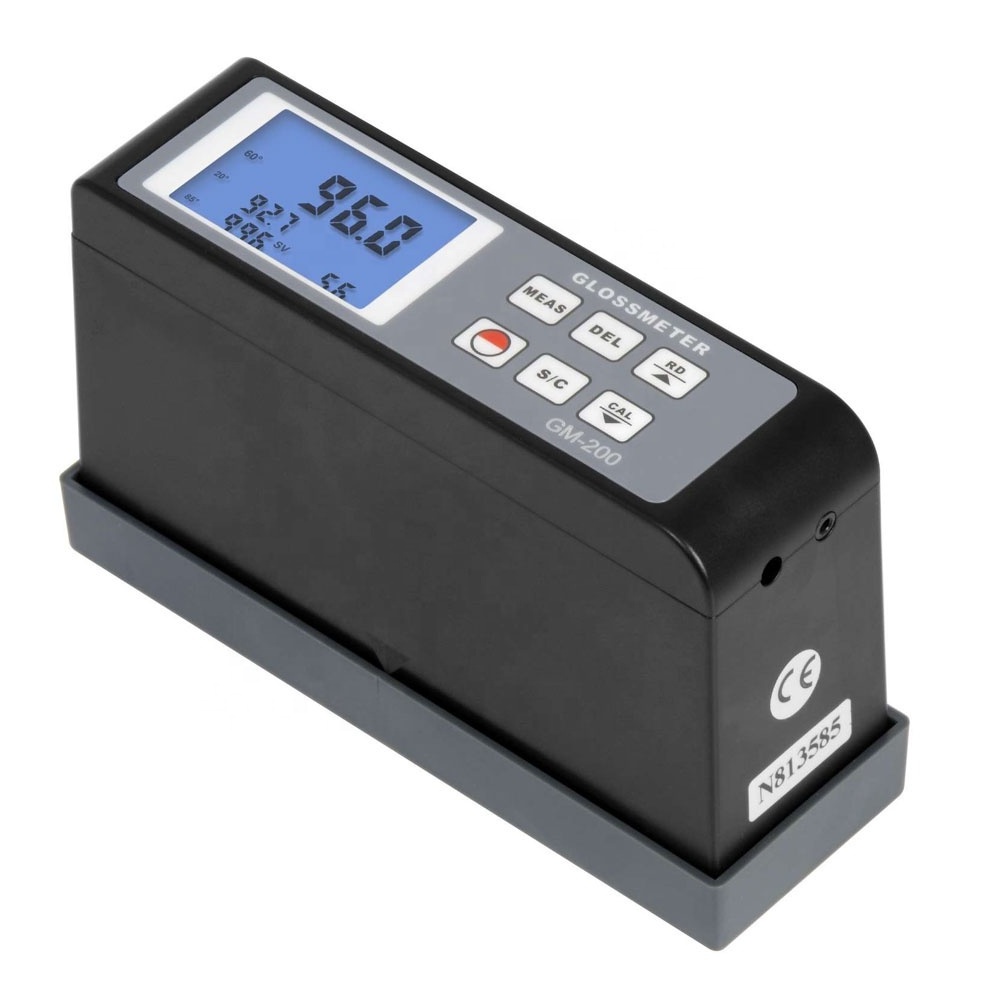

Portable GlossMeter GM-200 20/60/85 Degree Multi-Angle Gloss meter Stone Tile Paint Ink
Tester
Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter,Quality control of paint and ink, Polished metal surface, measurement
Features
* In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
* Accurate measurement, good repetitveness.
* Small in size, easy to carry.
* Auto calibration.
* Intelligent design, rapid measurement.
* Able to store 56 groups of measurements.
* Can display gloss value of 20°, 60°, 85° at the same time.
* Built-in lithium ion rechargeable battery.
* Backlight display, suitable for low light environment.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.
Material And Angle Selection Recommended
* 20°: High gloss paint, printing ink, plastics, paper and other materials.
* 60°: Middle gloss paint, printing ink, plastics, ceramics, marble and other materials.
* 85°: Low gloss paint, camouflage coatings materials.
Specifications
|
Display
|
4 Digits Backlit LCD
|
|
Measuring Angle
|
20º/60º/85º
|
|
Range
|
0.1~200 Gloss Units
|
|
Gloss Units
|
GU
|
|
Accuracy
|
±1.0GU
|
|
Resolution
|
0.1
|
|
Repeatability
|
±0.5GU
|
|
Measuring Area
|
7x14mm(Ellipse)
|
|
Data Memorized
|
56 Groups
|
|
Operating Conditions
|
Temp:0~40ºC Humidity:<85%RH
|
|
Power Supply
|
3.7V Lithium Ion Rechargeable Battery
|
|
Dimensions
|
140x45x75mm
|
|
Weight
|
310g(Including Batteries)
|
|
Standard Accessories
|
Main Unit
|
|
Holder with Calibration Standard
|
|
|
AC Adapter
|
|
|
Optical Cleaning Cloth
|
|
|
Carrying Case
|
|
|
Operation Manual
|
