Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DAIYA
-
Model Number:
-
DY-Stair2 curved wood stairs
-
Type:
-
curved wood stairs
-
Product Name:
-
indoor staircase designs
-
Tread Optional:
-
Solid wood/OAK/Laminated Tempered glass / Metal
-
Balustrade:
-
Glass/ Wire Cable/ Rod bar/ Aluminum/stainless steel
-
Staircase Type:
-
Straight / Spiral / Curved / Floating stair
-
Color:
-
All can customizable
-
Handrail:
-
Top mounted ,side mounted ,customizable
-
Wooden Tread thickness:
-
30-40mm for solid wood tread
-
Glass Tread thickness:
-
10+1.52+10mm or 12+1.52+12 mm laminated
Quick Details
-
Warranty:
-
Lifetime
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DAIYA
-
Model Number:
-
DY-Stair2 curved wood stairs
-
Type:
-
curved wood stairs
-
Product Name:
-
indoor staircase designs
-
Tread Optional:
-
Solid wood/OAK/Laminated Tempered glass / Metal
-
Balustrade:
-
Glass/ Wire Cable/ Rod bar/ Aluminum/stainless steel
-
Staircase Type:
-
Straight / Spiral / Curved / Floating stair
-
Color:
-
All can customizable
-
Handrail:
-
Top mounted ,side mounted ,customizable
-
Wooden Tread thickness:
-
30-40mm for solid wood tread
-
Glass Tread thickness:
-
10+1.52+10mm or 12+1.52+12 mm laminated

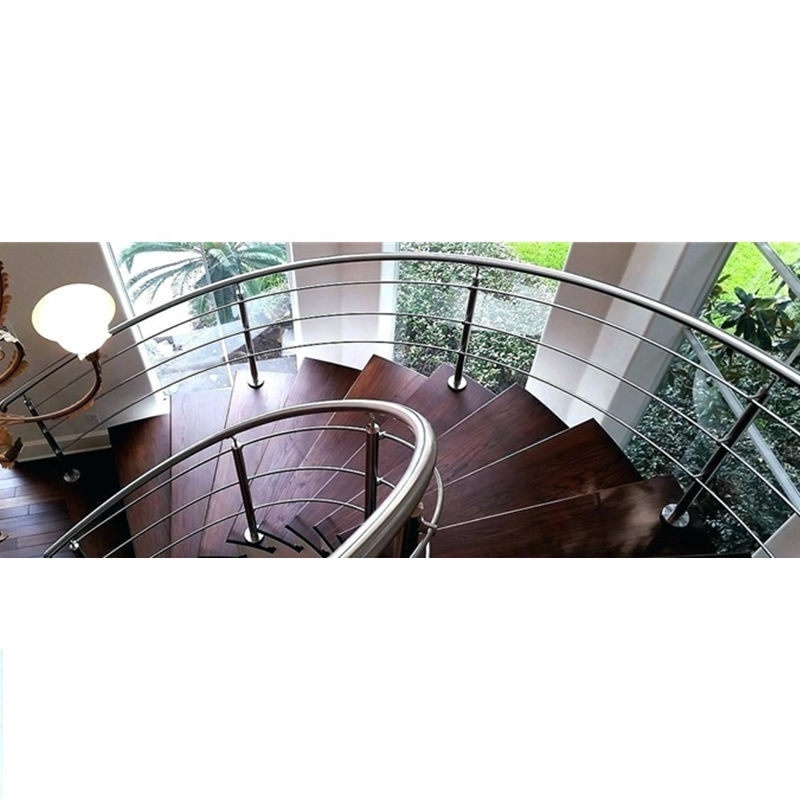

curved wood stairs with the stainless steel rod bar railing
Specifications
| Size | Floor height | customized as your job site |
| Width | 700-1800mm | |
| Material | Beam | stainless steel / carbon steel |
| Tread | laminated glass / solid wood / Metal/carbon steel | |
| Handrail | stainless steel / carbon steel / solid wood / PVC | |
| Baluster | stainless steel / carbon steel / aluminum | |
| Rod | stainless steel / carbon steel | |
| Component & Size (mm) | Beam | 300*12mm beam |
| 300*6+300*6 double stringer u channel | ||
| Tread thickness | 10+1.52+10mm or 12+1.52+12mm for glass tread; | |
| 30 /40/50/60mm for solid wood tread | ||
| Handrail | dia=42.4/50.8mm or square=40*40/ 50*50mm | |
| Baluster/post | dia=42.4/50.8mm or square=40*40/ 50*50mm | |
| Rod/Wire | Wire :dia=4/6/8mm ; Rod : Dia=8/12/12.7mm | |
| Glass | 10 ,12,15mm thickness | |
| 6+1.52+6mm/8+1.52+8mm laminated glass | ||
| Finish | Stainless steel | mirror/ satin/ brushed |
| Carbon steel | hot galvanizing/powder coating/painting | |
| Aluminum | powder coating/ galvanized/ oxidize | |
| Solid wood | painted | |
| Glass | Clear/frosted/tinted |
Detailed Images
Different type for optional
Wooden Tread Curved Staircase Detail Picture :
Below all the real feedback picture from client. Email us to send you the feedback email and pictre recently for reference.
Glass Tread Curved Staircase:
Production Picture
