2. The LS220 car paint thickness gauge uses dual-purpose probes, which are suitable for detecting the paint thickness on iron materials and also for detecting the paint thickness on aluminum materials. It can also recognizes non-metallic substrates.
- Product Details
- {{item.text}}
Quick Details
-
Probe tip:
-
Ruby fixed
-
Measuring range:
-
0.0-2000μm
-
Measuring interval:
-
0.5s
-
Resolution:
-
0.1μm:(0μm-99.9μm); 1μm:(100μm-999μm); 0.01mm:(1.00mm-2.00mm)
-
Accuracy:
-
≤±(3% reading+2μm)
-
Minimum measuring area:
-
Diameter = 25mm
-
Minimum curvature:
-
Convex:5mm / Concave:25mm
-
Minimum substrate thickness:
-
Fe:0.2mm / NFe:0.05mm
-
Display:
-
128x48 dot matrix LCD
-
Power supply:
-
2pcs of 1.5V AAA alkaline battery
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
VTSYIQI
-
Model Number:
-
LS220
-
Probe tip:
-
Ruby fixed
-
Measuring range:
-
0.0-2000μm
-
Measuring interval:
-
0.5s
-
Resolution:
-
0.1μm:(0μm-99.9μm); 1μm:(100μm-999μm); 0.01mm:(1.00mm-2.00mm)
-
Accuracy:
-
≤±(3% reading+2μm)
-
Minimum measuring area:
-
Diameter = 25mm
-
Minimum curvature:
-
Convex:5mm / Concave:25mm
-
Minimum substrate thickness:
-
Fe:0.2mm / NFe:0.05mm
-
Display:
-
128x48 dot matrix LCD
-
Power supply:
-
2pcs of 1.5V AAA alkaline battery

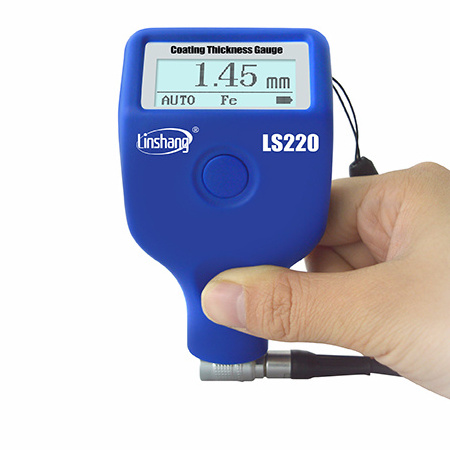

Paint Film Coating Thickness Meter Gauge Tester Instrument with Quick Test Time 0.5 Second LS220
Products Description
Automotive paint meter, also called car paint meter, is a special instrument for detecting the automobile substrate surface
coating thickness. The covering surface of a car basically has a paint coating. Using a automotive paint meter to measure the paint surface coating thickness can directly determine the sheet metal and spray paint of a car. It can also indirectly determine the damage degree of the car. The LS220 automotive paint meter has small size and is especially suitable for carrying around when going out for inspection. This car paint thickness gauge has the characteristics of fast test speed, stable test data, high measurement accuracy and so on.
coating thickness. The covering surface of a car basically has a paint coating. Using a automotive paint meter to measure the paint surface coating thickness can directly determine the sheet metal and spray paint of a car. It can also indirectly determine the damage degree of the car. The LS220 automotive paint meter has small size and is especially suitable for carrying around when going out for inspection. This car paint thickness gauge has the characteristics of fast test speed, stable test data, high measurement accuracy and so on.
Features
1. The LS220 automotive paint meter has high-sensitivity probe, fast test speed. Measurement can be completed in 0.5 seconds.
3. This automotive paint meter uses an industrial-grade LCD screen, which can be used at minus 20 ° C. No worries for outdoor use in winter of Northern China.
4. No calibration is needed just simple zero adjustment to ensure the measurement accuracy.
5. Wear-proof ruby probe tip for long-term use with strong corrosion and abrasion resistance.
6. With temperature compensation function and digitalizing analog signal function, these sensors are unsusceptible to interference.
7. "Fe", "NFe", "Fe/NFe" three measurement modes can be set for the LS220 automotive paint meter.
4. No calibration is needed just simple zero adjustment to ensure the measurement accuracy.
5. Wear-proof ruby probe tip for long-term use with strong corrosion and abrasion resistance.
6. With temperature compensation function and digitalizing analog signal function, these sensors are unsusceptible to interference.
7. "Fe", "NFe", "Fe/NFe" three measurement modes can be set for the LS220 automotive paint meter.
8. Ultra-small size for carrying around when going out for car inspection.
9. Ultra-low power consumption, coupled with the design of automatic shutdown with no operation for 3 minutes to avoid frequent battery replacement and saves energy.
Application
Product Paramenters
|
Probe tip
|
Ruby
|
|
Measuring principle
|
Fe:Hall Effect / NFe: Eddy current
|
|
Probe type
|
Built-in integrated probe
|
|
Measuring range
|
0.0-2000μm
|
|
Resolution
|
0.1μm:(0μm-99.9μm); 1μm:(100μm-999μm); 0.01mm:(1.00mm-2.00mm)
|
|
Accuracy
|
≤±(3% reading+2μm)
|
|
Unit
|
μm / mil
|
|
Measuring interval
|
0.5s
|
|
Minimum measuring area
|
Diameter = 25mm
|
|
Minimum curvature
|
Convex:5mm / Concave:25mm
|
|
Minimum substrate thickness
|
Fe:0.2mm / NFe:0.05mm
|
|
Display
|
128×48 dot matrix LCD
|
|
Power supply
|
2pcs of 1.5V AAA alkaline battery
|
|
Operation temperature
|
-20℃-50℃
|
|
Storage temperature
|
-20℃-60℃
|
|
Host size
|
101*62*28 mm
|
|
Weight(with battery)
|
79 g
|
