Quick Details
-
Brand Name:
-
WNK
-
Model Number:
-
WNK-805N
-
Max. Current:
-
1.0A
-
Max. Working Pressure:
-
-100KPa...60MPa
-
IP level:
-
IP65
-
Pressure Range:
-
-100KPa...60MPa
-
Accuracy:
-
±0.2%FS
-
Applicable Media:
-
Liquid/Gas
-
Power Supply:
-
12...32V DC
-
Current Output:
-
4...20mA
-
Process Connection:
-
M20*1.5,G1/2,G1/4,1/2NPT,G1/2,other
-
IP Rating:
-
IP65
-
Electrical Connection:
-
M12
-
Operating Temperature:
-
0-80℃
-
Overload Pressure:
-
2.5X
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
30V DC
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WNK
-
Model Number:
-
WNK-805N
-
Max. Current:
-
1.0A
-
Max. Working Pressure:
-
-100KPa...60MPa
-
IP level:
-
IP65
-
Pressure Range:
-
-100KPa...60MPa
-
Accuracy:
-
±0.2%FS
-
Applicable Media:
-
Liquid/Gas
-
Power Supply:
-
12...32V DC
-
Current Output:
-
4...20mA
-
Process Connection:
-
M20*1.5,G1/2,G1/4,1/2NPT,G1/2,other
-
IP Rating:
-
IP65
-
Electrical Connection:
-
M12
-
Operating Temperature:
-
0-80℃
-
Overload Pressure:
-
2.5X
Product Description
|
Pressure Range
|
-100KPa...60MPa
|
|
Output Signal
|
4...20mA
|
|
Accuracy
|
+0.2%FS
|
|
Applicable Media
|
Liquid/Gas
|
|
Power Supply
|
12...32V DC
|
|
Process Connection
|
M20*1.5，G1/2，G1/4，1/2NPT，G1/2，others
|
|
IP Rating
|
IP65
|
|
Electrical Connection
|
M12
|
|
Operating Temperature
|
0-80°C
|
|
Overload Pressure
|
2.5X
|
|
Burst Pressure
|
10X
|
Dimensions
Application

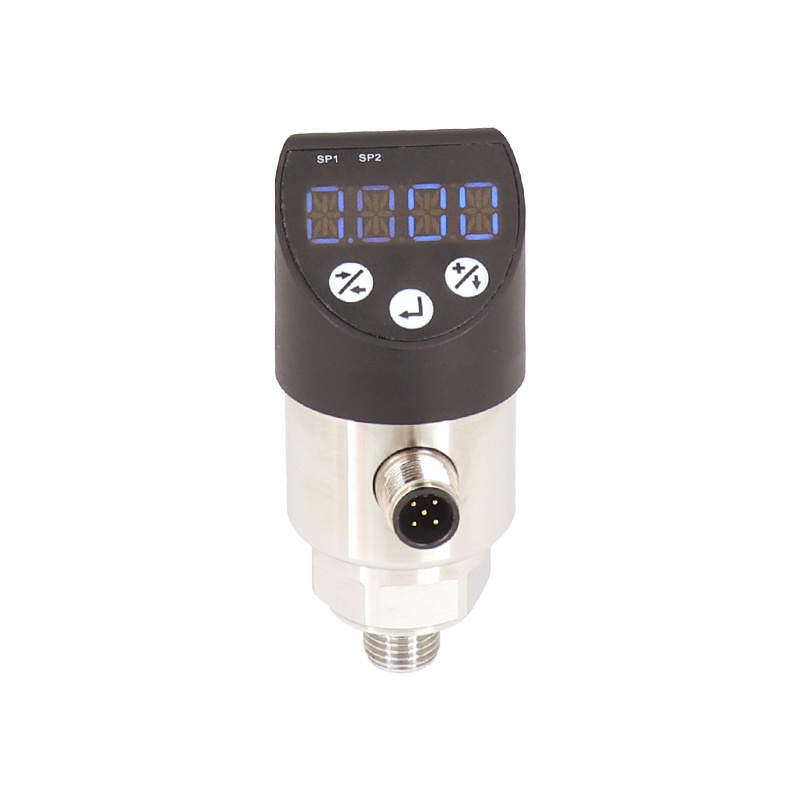

The WNk805N pressure sensor adopts an imported chipset, reflecting world-class transmitter technology. The sensitive chip is equipped with a diffusion siliconstrain bridge, with a delicate and reliable structure. The product is widely used formeasuring gauge or absolute pressure in fields such as aerospace,communication, water conservancy, petroleum, chemical, electricity, meteorology.and laboratories. lt can also measure negative pressure, vacuum degree. etc. Thestructure is compact, sturdy,
easy to install and use
. The zero range canbe continuously adjusted externally. with a wide migration range. suitable forvarious occasions. all weather, harsh hazardous environments, and variouscorrosive media.
