Quick Details
-
Model Number:
-
LM24-3010NB
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUMO
-
Theory:
-
Optical Proximity Sensor
-
Output:
-
NPN
-
Usage:
-
Position Sensor
-
Model no.:
-
LM24-3010NB
-
brand:
-
YUMO
-
Sensing range:
-
10 mm
-
control output:
-
NPN
-
Voltage:
-
6-36VDC
-
Operation mold:
-
NC
-
Installation:
-
non-flush/flush
-
Standard Detectable object:
-
24*24*1 (A3 iron)
-
IP grade:
-
IP67
Quick Details
-
Use:
-
Optical Proximity Sensor
-
Mounting Type:
-
bracket
-
Description:
-
sensor, Optical Proximity Sensor
-
Model Number:
-
LM24-3010NB
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUMO
-
Theory:
-
Optical Proximity Sensor
-
Output:
-
NPN
-
Usage:
-
Position Sensor
-
Model no.:
-
LM24-3010NB
-
brand:
-
YUMO
-
Sensing range:
-
10 mm
-
control output:
-
NPN
-
Voltage:
-
6-36VDC
-
Operation mold:
-
NC
-
Installation:
-
non-flush/flush
-
Standard Detectable object:
-
24*24*1 (A3 iron)
-
IP grade:
-
IP67

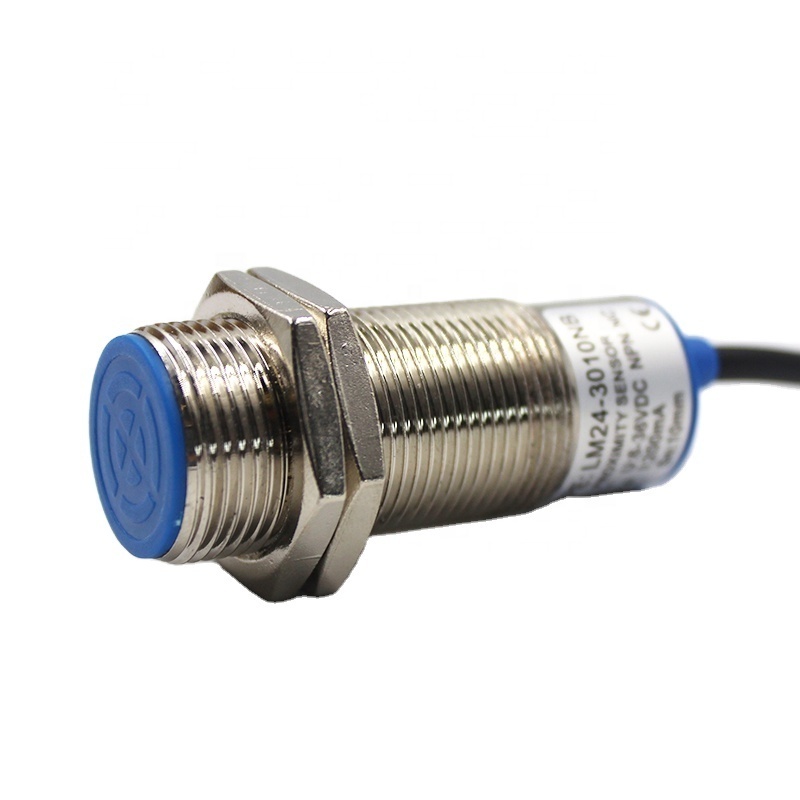

M24 Cylinder inductive proximity switch LM24-3010NB sensing range 10mm non-flush NPN NC 6-36VDC
Product Description
h M24
| M24 Inductive proximity switch | ||||
| Detecting rang 8mm | YUMO part no. | |||
| Flush | DC | NPN | NO | LM24-3008NA |
| NC | LM24-3008NB | |||
| NO+NC | LM24-3008NC | |||
| PNP | NO | LM24-3008PA | ||
| NC | LM24-3008PB | |||
| NO+NC | LM24-3008PC | |||
| 2 Wires | NO | LM24-3008LA | ||
| NC | LM24-3008LB | |||
| AC | SCR | NO | LM24-2008A | |
| NC | LM24-2008B | |||
| NO+NC | LM24-2008C | |||
| Relay output | ||||
| Detecting rang 10mm | ||||
| Non-flush | DC | NPN | NO | LM24-3010NA |
| NC | LM24-3010NB | |||
| NO+NC | LM24-3010NC | |||
| PNP | NO | LM24-3010PA | ||
| NC | LM24-3010PB | |||
| NO+NC | LM24-3010PC | |||
| 2 Wires | NO | LM24-3010LA | ||
| NC | LM24-3010LB | |||
| SCR | NO | LM24-2010A | ||
| NC | LM24-2010B | |||
| NO+NC | LM24-2010C | |||
| Relay output | ||||
| LM24 Sensor Characteristics | ||||
| Output current | DC | 200mA | ||
| SCR/relay | 300mA | |||
| Output voltage drop DC/AC | DC<3V AC<10V | |||
| Consumption current | DC<15mA; AC<10mA | |||
| Standard detected object | 24×24×1(A3 Iron) | |||
| Repeated precision | 0.05 | |||
| Response Frequency | 200Hz/25Hz | |||
| Working environment temperature | -25℃ ~+75℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | Metal | |||
| Protection grade | IP67 | |||
| Alternative model | LJ24A4-10-** | |||
