- Product Details
- {{item.text}}
Quick Details
-
IP Rating:
-
IP67
-
Beam Angle(°):
-
180°
-
CRI (Ra>):
-
5000K
-
Lamp Luminous Efficiency(lm/w):
-
160
-
Lamp Luminous Flux(lm):
-
300,000
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-45-60
-
Product Name:
-

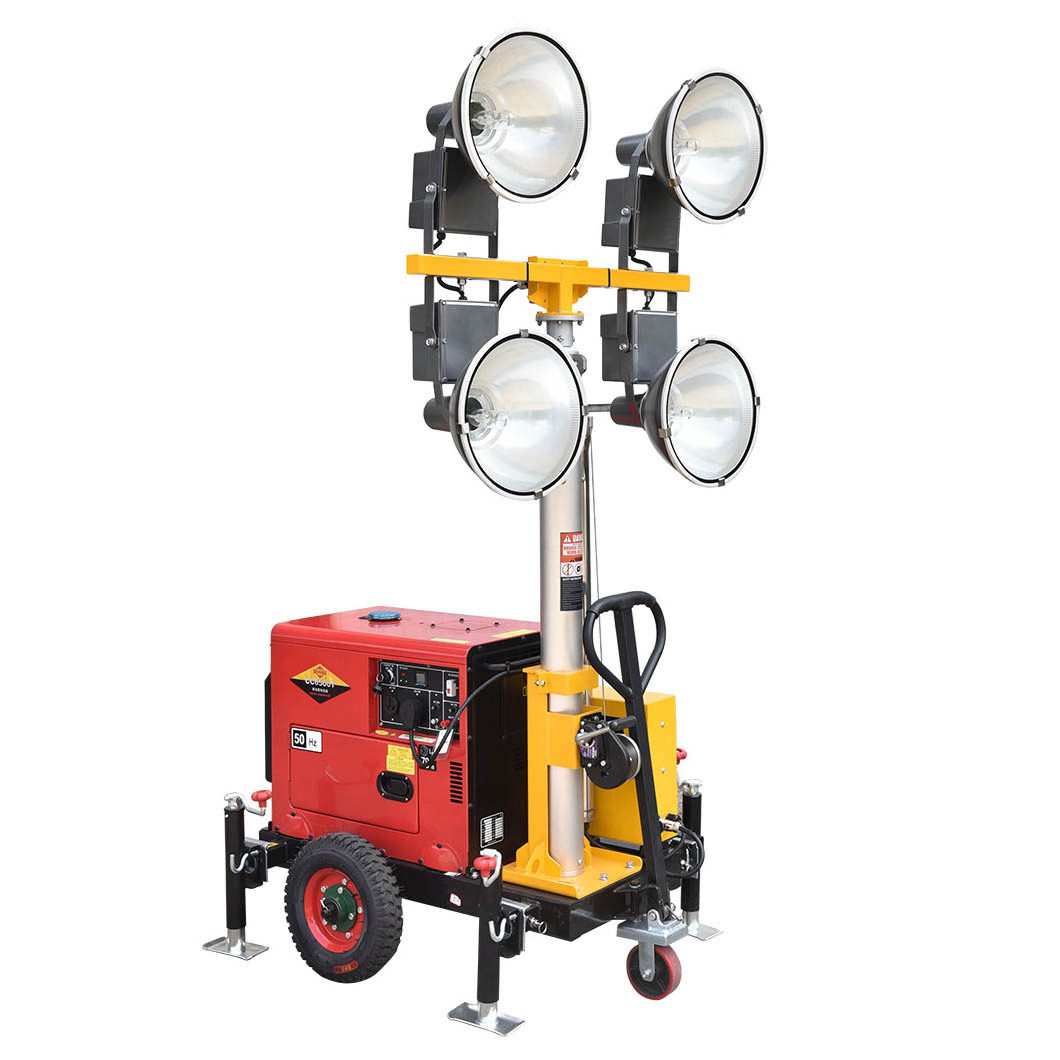

Portable Diesel Generator Lighting Tower Electric Mast
-
Type of Lights:
-
4x400W MH
-
Lights Voltage:
-
AC220V
-
Maximum Height:
-
4.5m
-
Lifting system:
-
Manual/electric
-
RPM:
-
3000/3600rpm
-
Noise level:
-
68db @7m
-
Certificate:
-
CE, ISO9001,ISO 14001/OHS18001
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
UNIV
-
Model Number:
-
GMLT4005A-0004
-
IP Rating:
-
IP67
-
Beam Angle(°):
-
180°
-
CRI (Ra>):
-
5000K
-
Lamp Luminous Efficiency(lm/w):
-
160
-
Lamp Luminous Flux(lm):
-
300,000
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-45-60
-
Product Name:
-
Portable Diesel Generator Lighting Tower Electric Mast
-
Type of Lights:
-
4x400W MH
-
Lights Voltage:
-
AC220V
-
Maximum Height:
-
4.5m
-
Lifting system:
-
Manual/electric
-
RPM:
-
3000/3600rpm
-
Noise level:
-
68db @7m
-
Certificate:
-
CE, ISO9001,ISO 14001/OHS18001
Products Series
|
Model
|
UGT-1600 Simple
|
UGT-1600
|
UGT-4000 LM
|
UGT-4000 PM
|
UGT-4000 PL
|
|
Frequency
|
50/60 Hz
|
50/60 Hz
|
50/60 Hz
|
50/60 Hz
|
50/60 Hz
|
|
Voltage
|
230/110 VAC
|
230/110 VAC
|
230/110 VAC
|
230/110 VAC
|
230/110 VAC
|
|
Phase
|
Single
|
Single
|
Single
|
Single
|
Single
|
|
Rated Power
|
5kW/5kVA
|
5kW/5kVA
|
8kW/8kVA
|
8kW/8kVA
|
8kW/8kVA
|
|
Engine
|
Chinese
186FA
|
Chinese
192FA
|
Laidong KM385BD
|
Perkins
403D-11G
|
Perkins
403D-11G
|
|
Alternator
|
Chinese
|
Chinese
|
Brushless
|
STAMFORD
|
STAMFORD
|
|
Lamp
|
4 × 400W MHD,176000Lms
|
4 × 1000W MHD,440000Lms
|
4 × 1000W MHD,440000Lms
|
4 × 1000W MHD,440000Lms
|
4 × 500W LED,290000Lms
|
|
Rotation
|
No
|
No
|
No
|
No
|
350° Electric
|
|
Tilt
|
No
|
No
|
90° Electric
|
90° Electric
|
90° Electric
|
|
Controller
|
Chinese
|
Chinese
|
DSE 4620
|
DSE 4620
|
DSE 4620
|
|
Mast
|
4.5M 4 Sections
|
4.5M 4 Sections
|
6.5M 5 Sections
|
6.5M 5 Sections
|
9M 9 Sections
|
|
Mast Lifting
|
Manual Winch
|
Manual Winch
|
Manual Winch
|
Manual Winch
|
Hydraulic
|
|
Trailer Standard
|
US / AU / EU
|
US / AU / EU
|
US / AU / EU
|
US / AU / EU
|
US / AU / EU
|
|
Hitch
|
Handle
|
2'' Ball / 3'' Ring
|
2'' Ball / 3'' Ring
|
2'' Ball / 3'' Ring
|
2'' Ball / 3'' Ring
|
|
Brake
|
No
|
No
|
Mechanical
|
Mechanical
|
Mechanical
|
|
Axle
|
Single
|
Single
|
Single
|
Single
|
Single
|
|
Tire
|
8 inch
|
12 inch
|
15 inch
|
15 inch
|
15 inch
|
|
Outriggers
|
4 ×
|
4 ×
|
4 ×
|
4 ×
|
4 ×
|
|
Forklift Holes
|
No
|
2 ×
|
2 ×
|
2 ×
|
2 ×
|
|
Wokring Temp
|
-30ºC~50ºC
|
-30ºC~50ºC
|
-30ºC~50ºC
|
-30ºC~50ºC
|
-30ºC~50ºC
|
|
Fuel Tank
|
12L
|
12L
|
45L
|
45L
|
45L
|
|
Running Time
|
8 hours
|
8 hours
|
22 hours
|
22 hours
|
22 hours
|
|
Dimension(mm)
|
1400*1100*2350
|
2400*1100*2500
|
3000*1500*2700
|
3000*1500*2700
|
3200*1500*2700
|
|
Weight
|
350kg
|
550kg
|
1275kg
|
1325kg
|
1725kg
|
|
QTY in 20' / 40'
|
16 units / 48 units
|
12 units / 28 units
|
4 units / 8 units
|
4 units / 8 units
|
3 units / 7 units
|
Our Service
Warranty service
Warranty for 1 year or 1000 running hours.During the warranty period, if any accessories are damaged, free accessories will be provided.
Test for high performance
A professional team will provide good service, advanced equipment provide a strict checking and measuring environment for high
quality product, low fuel level, oil presssure, water temperature, full load test, over load 110% etc. we will test all function
to make sure our production running good, so we use load bank for test more stabilized and reliable.
Warranty for 1 year or 1000 running hours.During the warranty period, if any accessories are damaged, free accessories will be provided.
Test for high performance
A professional team will provide good service, advanced equipment provide a strict checking and measuring environment for high
quality product, low fuel level, oil presssure, water temperature, full load test, over load 110% etc. we will test all function
to make sure our production running good, so we use load bank for test more stabilized and reliable.
