Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
XZ-103
-
Brand Name:
-
XUZE
-
Product name:
-
Ss Wire Mesh Fabric 304 316 Stainless Steel Wire Mesh
-
Feature:
-
Corrosion Resistance
-
Hole shape:
-
Square Hole
-
Usage:
-
Filters
-
MOQ:
-
1pcs
-
Length:
-
as your request
-
Certification:
-
ISO9001:2008
-
Advantage:
-
Superior Wire
-
Packing:
-
Pallet
-
Sample:
-
Avaliable
Quick Details
-
Material:
-
STAINLESS STEEL WIRE
-
Type:
-
Weave Wire Mesh
-
Application:
-
Filters
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
XZ-103
-
Brand Name:
-
XUZE
-
Product name:
-
Ss Wire Mesh Fabric 304 316 Stainless Steel Wire Mesh
-
Feature:
-
Corrosion Resistance
-
Hole shape:
-
Square Hole
-
Usage:
-
Filters
-
MOQ:
-
1pcs
-
Length:
-
as your request
-
Certification:
-
ISO9001:2008
-
Advantage:
-
Superior Wire
-
Packing:
-
Pallet
-
Sample:
-
Avaliable

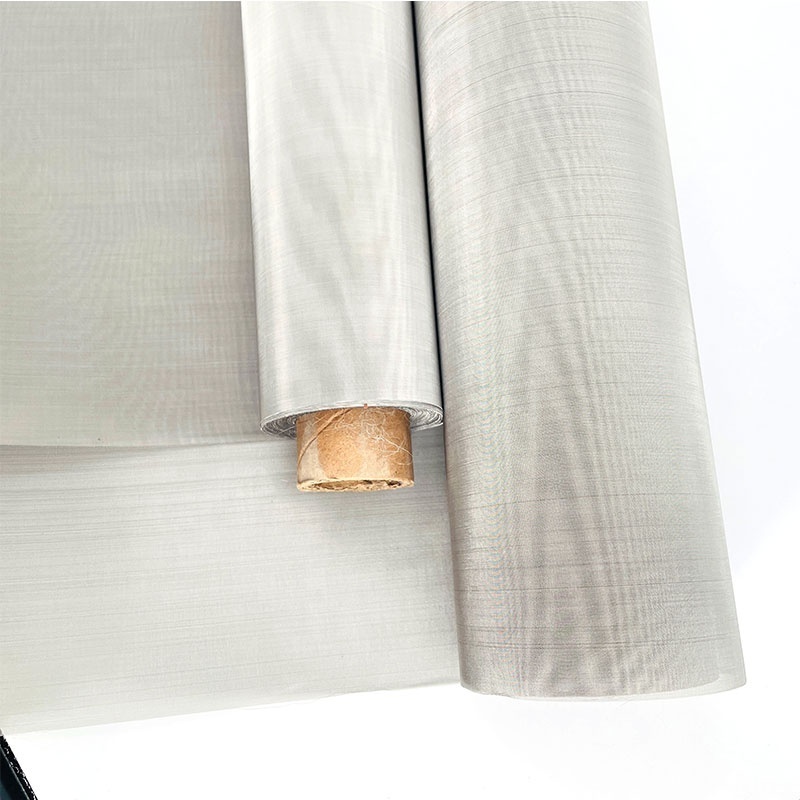

500 400 300 200 150 Micron 40 50 60 100 Mesh Net Metal Ss Wire Mesh Fabric 304 316 Stainless Steel Wire Mesh
Product Description
Material
:SUS 201,302,304,304L,310,316,316L,321,etc.
Application
:Used in mine,petroleum,chemical industry,food industry,pharmaceutical industry,machine making,etc.
Weaving types
:Plain Weave,Twill Weave,Plain Dutch Weave,Twill Dutch Weave,Reverse Plain Dutch Weave,Twill Reverse Dutch Weave,Five Shed Twill Weave,etc
.
Plain weave Twill Weave Plain Dutch Weave Twill Dutch Weave
Reverse Plain Dutch Weave Twill Reverse Dutch Weave Five Shed Twill Weave
Features
1
.Corrosion and abrasion resistance.
2.High temperature resistance.
3.Highly aesthetic appeal for architectural applications.
4.Hygienic characteristics and clean ability are specifically suitable for food and pharmaceutical industries.
5.Cost effective.
6.Highly durable and withstand severe conditions.
7.Long life cycle.
Specification
|
Stainless steel wire mesh plain weaving of specification
|
|
|
|
|
|
|||||
|
Mesh
|
Wire Dia(mm)
|
Opening(mm)
|
Mesh
|
Wire Dia(mm)
|
Opening(mm)
|
|||||
|
1X1
|
2
|
23.37
|
50X50
|
0.2
|
0.31
|
|||||
|
2X2
|
1.6
|
11.1
|
60X60
|
0.18
|
0.23
|
|||||
|
3X3
|
1.37
|
7.09
|
60X60
|
0.18
|
0.25
|
|||||
|
4X4
|
1.6
|
4.75
|
70X70
|
0.165
|
0.2
|
|||||
|
4X4
|
1.19
|
5.16
|
70X70
|
0.12
|
0.24
|
|||||
|
5X5
|
1
|
4.04
|
80X80
|
0.165
|
0.2
|
|||||
|
6X6
|
0.89
|
3.35
|
80X80
|
0.14
|
0.15
|
|||||
|
8X8
|
0.71
|
2.46
|
90X90
|
0.12
|
0.16
|
|||||
|
10X10
|
0.64
|
1.91
|
100X100
|
0.11
|
0.14
|
|||||
|
12X12
|
0.58
|
1.52
|
100X100
|
0.1
|
0.15
|
|||||
|
12X12
|
0.5
|
1.6
|
100X100
|
0.09
|
0.17
|
|||||
|
14X14
|
0.23
|
1.22
|
120X120
|
0.09
|
0.12
|
|||||
|
14X14
|
0.5
|
1.3
|
150X150
|
0.063
|
0.11
|
|||||
|
16X16
|
0.45
|
1.13
|
180X180
|
0.053
|
0.09
|
|||||
|
18X18
|
0.43
|
0.98
|
200X200
|
0.053
|
0.07
|
|||||
|
20X20
|
0.4
|
0.87
|
250X250
|
0.04
|
0.063
|
|||||
|
24X24
|
0.35
|
0.7
|
300X300
|
0.04
|
0.044
|
|||||
|
30X30
|
0.33
|
0.52
|
325X325
|
0.035
|
0.043
|
|||||
|
30X30
|
0.3
|
0.54
|
350X350
|
0.03
|
0.042
|
|||||
|
30X30
|
0.23
|
0.62
|
400X400
|
0.03
|
0.033
|
|||||
|
35X35
|
0.28
|
0.45
|
450X450
|
0.028
|
0.028
|
|||||
|
40X40
|
0.25
|
0.38
|
500X500
|
0.025
|
0.026
|
|||||
|
40X40
|
0.23
|
0.4
|
635X635
|
0.02
|
0.02
|
|||||
|
50X50
|
0.23
|
0.28
|
|
|
|
|||||
|
Any Special Specification,we can customized.
|
|
|
|
|
|
|||||
Application
Packing & Delivery
500 400 300 200 150 Micron 40 50 60 100 Mesh Net Metal Ss Wire Mesh Fabric 304 316 Stainless Steel Wire Mesh
Packing
1.High mesh count:Inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
2.Low mesh count:Packed in rolls,Then with waterproof and woven bags,Finally in wooden case.
3.Sheet shape:Inside with plastic film and outside with a small wooden case.
