Quick Details
-
Brand Name:
-
WINNER
-
Product name:
-
Motorized Plastic PVC Ball Valve
-
Control type:
-
ON/OFF
-
Valve type:
-
2 WAY
-
Valve material:
-
Plastic
-
Voltage:
-
220VAC+/-15%
-
Open/Close time:
-
16S/50Hz/12S/60Hz
-
Waranty:
-
18 month
Quick Details
-
Port Size:
-
DN20 (3/4'')
-
Place of Origin:
-
China
-
Model Number:
-
WRA-6320A+WUPBV220
-
Brand Name:
-
WINNER
-
Product name:
-
Motorized Plastic PVC Ball Valve
-
Control type:
-
ON/OFF
-
Valve type:
-
2 WAY
-
Valve material:
-
Plastic
-
Voltage:
-
220VAC+/-15%
-
Open/Close time:
-
16S/50Hz/12S/60Hz
-
Waranty:
-
18 month

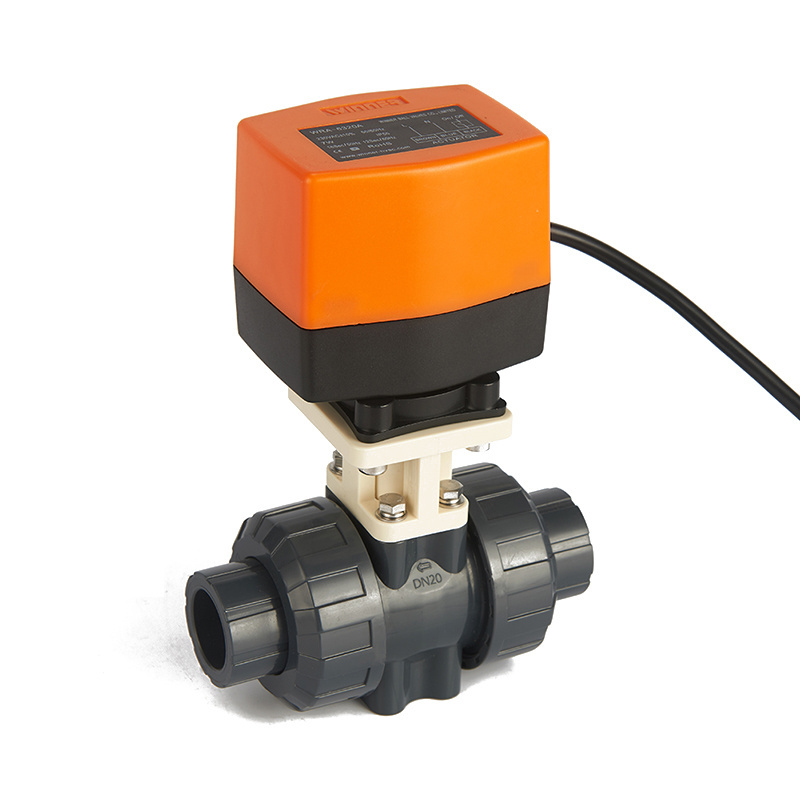

2 Way Electric Actuator Ball Valve 3/4 inch PVC Valves Water Control Motorized Plastic PVC Ball Valve
Technical Parameter
Medium: cold/hot water, with 50% glycol
Temperature of medium: 2°C...90°C
Adissable pressure:2.0Mpa
Cable Length: 0.5m or 1.5m
Environment Temperature:-20~65 Celsius
Protect rank: IP54/IP55
Package Include:
1x ball valve
1x Actuator Motor
1x Instruction manual
Application
1.HVAC system
2.Water treatment system
3.Heating syste
4.Industrial equipments
5.Chemical process
6.Agricultural irrigation
7.Replacing solenoid valve, particularly when solenoid cannot work reliably .It can be installed at any angle and direction,and can work in moist conditions.
8.Regular watering the flowers, Timing humidification ,Air compressor drain at regular time.
WRA-63.... A
AC230/110/24V, 50/60Hz, on/off
| SIZE |
DN15 1/2'' |
DN20 3/4'' |
DN25 1'' |
|
|
| d | 13 | 18 | 23 | ||
| DIN dl | 20 | 25 | 32 | ||
| JISdl | 22 | 26 | 32 | ||
| ANSIdl | 21.34 | 26.67 | 33.4 | ||
| BSdl | 21.2 | 26.6 | 33.4 | ||
| D | 56 | 64 | 73 | ||
| Dl | 31 | 36 | 47 | ||
| L | 120 | 128 | 144 | ||
| Ll | 23 | 25 | 28 | ||
| H | 95 | 101 | 133 | ||
| H3 | 29.5 | 33.5 | 39 | ||
| H4 | 28 | 30 | 34 | ||
| H5 | 151 | 153 | 159 | ||
| H6 | 166 | 168 | 174 |
| NO. | Part | Material | QTY | |
| 1 | Body | U-PVC,C-PVC,PP | 1 | |
| 2 | Ball | U-PVC,C-PVC,PP | 1 | |
| 3 | Carrier O-Ring | EPDM,FPM | 1 | |
| 4 | Seal Carrier | U-PVC,C-PVC,PP | 1 | |
| 5 | Union | U-PVC,C-PVC,PP | 2 | |
| 6 | End Connector | U-PVC,C-PVC,PP | 2 | |
| 7 | Seal Seat | PTFE | 2 | |
| 8 | Dampener Seal | EPDM,FPM | 2 | |
| 9 | End Connestor O-Ring | EPDM,FPM | 2 | |
| 10 | Stem O-Ring | EPDM,FPM | 2 | |
| 11 | Stem | U-PVC,C-PVC,PP | 1 | |
| 14 | Mounting Clamp | PVC-M,SUS304 | 1 | |
| 15 | Actuator Coupling Bush | PVC-M,SUS304 | 1 | |
| 16 | Bolt | SUS 304 | 4 |
