Quick Details
-
Model Number:
-
YDNH-250
-
Rated Voltage:
-
220/380V
-
Rated Current:
-
900A
-
Speed:
-
1500rpm
-
Frequency:
-
50HZ
-
Product Name:
-
Natural gas generator power
-
Alternator:
-
Stamford
-
Engine model:
-
YDN CM6T28
-
Engine power:
-
550KW
-
Certificate:
-
CE/ISO9001/ISO14001/ISO18001
-
Options:
-
Automatic Transfer Switch
-
Controller:
-
Smartgen
-
Type:
-
Open Frame
-
Color:
-
Orange
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 YEAR, One Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YDNPOWER
-
Model Number:
-
YDNH-250
-
Rated Voltage:
-
220/380V
-
Rated Current:
-
900A
-
Speed:
-
1500rpm
-
Frequency:
-
50HZ
-
Product Name:
-
Natural gas generator power
-
Alternator:
-
Stamford
-
Engine model:
-
YDN CM6T28
-
Engine power:
-
550KW
-
Certificate:
-
CE/ISO9001/ISO14001/ISO18001
-
Options:
-
Automatic Transfer Switch
-
Controller:
-
Smartgen
-
Type:
-
Open Frame
-
Color:
-
Orange
-
Certification:
-
CE
Product Description
Specification
|

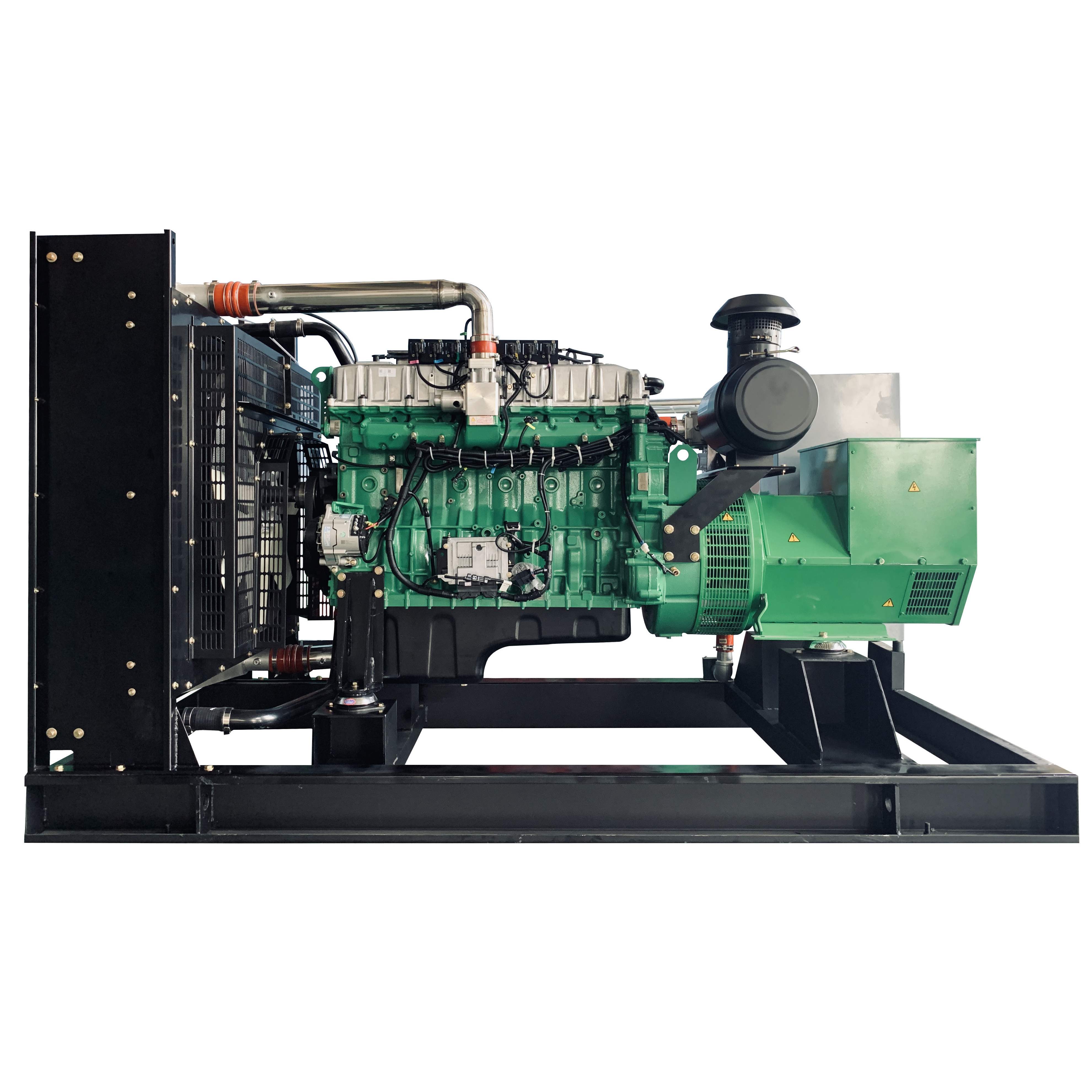

250kw 312.5kva natural gas generator
|
|
|
||
|
Generator |
Genset Model
|
YDNC-250
|
||
|
|
Rated Power (kW/kVA)
|
250Kw/312.5Kva
|
||
|
|
Rated Current (A)
|
900
|
||
|
|
Dimension (mm)
|
3300*1400*1830
|
||
|
|
Gross Weight (kg)
|
3800
|
||
|
Natural gas engine |
Model
|
CM6T28
|
||
|
|
Gas system
|
WOODWARD
|
||
|
|
Ignition system
|
ALTRONIC
|
||
|
|
Configuration
|
Water-cooled, 4-stroke, 6 cylinder Line type
|
||
|
|
Rated Power (kW/kVA)
|
255Kw
|
||
|
|
Rated Speed (rpm)
|
1500
|
||
|
|
Bore×Stroke (mm)
|
128*153
|
||
|
|
Oil Consumption (g/kw.h)
|
1
|
||
|
|
Gas Consumption (Nm3/h)
|
150@100%@ load
|
||
|
|
Starting method
|
24V DC electric
|
||
|
Alternator |
Brand
|
FARRAND (STAMFORD technology)
|
||
|
|
Model
|
FLD-250
|
||
|
|
Rated Power (KW/kVA)
|
250kw/312.5kva
|
||
|
|
Efficiency
|
92.50%
|
||
|
|
Voltage Regulation
|
±1
|
||
|
|
Voltage Regulation
|
Brushles, Self Excitation
|
||
|
|
Insulation Class
|
H
|
||
|
Control System |
Brand
|
SMARTGEN
|
||
|
|
Model
|
HGM6110
|
||
|
|
Working Voltage
|
DC8.0V to DC35.0V, continuous
|
||
|
|
Overall Dimensions (mm)
|
197*152*47
|
||
|
|
Panel Cutout (mm)
|
186*141
|
||
|
|
Working Condition
|
Temperature: (-25~70)ºC; Humidity: (20~90)%
|
||
|
|
Weight
|
0.56kg
|
||
