Quick Details
-
Frequency:
-
5Ghz-5.8Ghz
-
Transmission distance:
-
200m
-
Power voltage input:
-
7-36V DC
-
Latency:
-
≤ 1ms
-
Transmission power:
-
17dBm
-
Bandwidth:
-
40MHz
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ST VIDEO
-
Model Number:
-
STW-200P
-
Frequency:
-
5Ghz-5.8Ghz
-
Transmission distance:
-
200m
-
Power voltage input:
-
7-36V DC
-
Latency:
-
≤ 1ms
-
Transmission power:
-
17dBm
-
Bandwidth:
-
40MHz
Wireless Transmission System
5Ghz-5.8Ghz / 11 channels / up to 200m / Full HD/ SDI/ no delay, no compression
Wireless SDI Transmission System allows you to transmit up to a real time 1080p 60Hz 4:2:2 uncompressed SDI signal up to 400' line-of-sight with 1 ms latency.
The system operates on the 5.1 to 5.9 GHz frequency band and uses AES-128/256 encryption for secure live delivery of your video.
The frequency is selectable by a 11 channels provided on both the transmitter and receiver units.
And this wireless transmission link can be used in point-to-point and point-to-multipoint setups.
Both the transmitter and receiver come with L-series battery plates. Additionally D-Tap to LEMO cables are included for powering.
Main features:
01 - Support real-time 1080P/60Hz video transmission
02 - External SONY F970 battery interface for battery plug-in
03 - Power AC&DC, Cable D-TAP/LEMO
04 - Overvoltage Protection: DC12V / 2A (7V ~ 36V)
05 - SDI, MINI USB interface
06 - External antenna, get better signal reception
07 - WHDI, no compression, no delay
08 - Plug and play usage
09 - Support SDI Time code
10 - Support SDI camera recording trigger transmission (Start/Stop flag)
Wireless HD Transmitter:
Specifications:
|
Item |
Data |
|
Antenna Mode |
External antenna |
|
Frequency |
Free Frequency (EU): 5150 to 5250 MHz, 5725 to 5825 MHz
|
|
Transmission power |
17dBm |
|
Latency |
≤ 1ms |
|
Mechanical Interface |
1/4 inch nut in bottom, SONY F-Type Battery Plate |
|
Bandwidth |
40MHz |
|
Power consumption |
7W |
|
Transmission range |
open environment: up to 200m (3051)
|
|
Temperature |
0 ~ 40 C (Working); - 20 ~ 80 C (Storage) |
|
Overvoltage Protection |
DC12V / 2A (7V ~ 36V) |
|
Product Size |
117.5 (L) x 72 (W) x 27.5 (H) |
|
Audio Format |
PCM, DTS-HD, Dolby True HD |
Wireless HD Receiver:
Specifications:
|
Item |
Data |
|
Receiving Sensitivity |
-70dBm |
|
Frequency |
Free Frequency (EU): 5150 to 5250 MHz, 5725 to 5825 MHz
|
|
Antenna Mode |
External antenna |
|
Mechanical Interface |
1/4 inch nut in bottom, SONY F-Type Battery Plate |
|
Waterproof grade |
IP54 |
|
Bandwidth |
40MHz |
|
Power consumption |
5~6W |
|
Transmission range |
open environment: up to 200m (7051)
|
|
Overvoltage Protection |
DC12V / 2A (7V ~ 36V) |
|
Product Size |
144(L)×95(W)×27.5(H) |
|
Audio Format |
PCM , DTS-HD, Dolby True HD |
|
Temperature |
0 ~ 40 C (Working); - 20 ~ 80 C (Storage) |
Images of HD Wireless transmission system

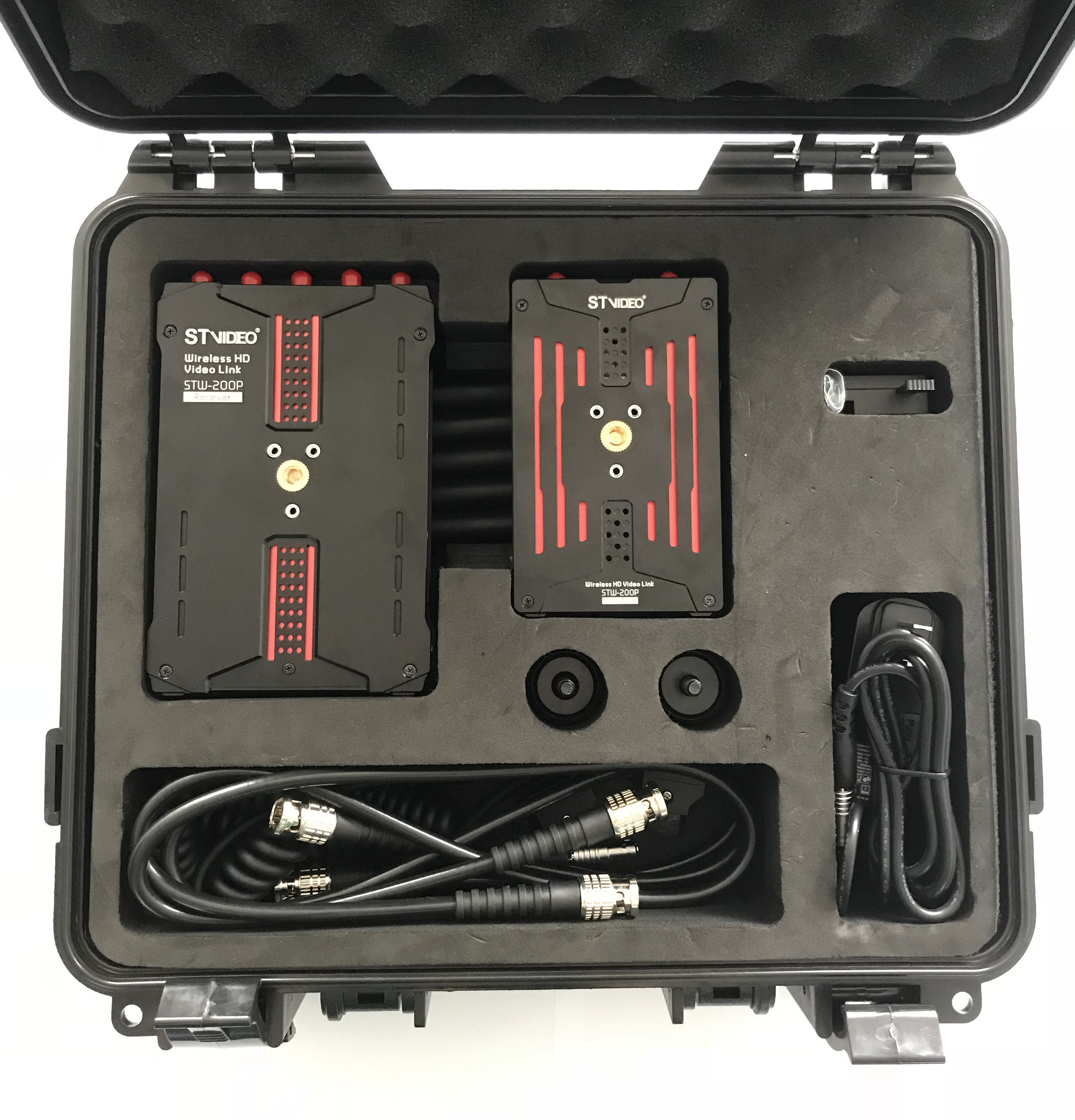

Packing Content
Other equipment optional
-100m (HDMI) / 300m -700m wireless transmission kit:
-Li-ion camera battery and charger V-lock / Gold-mount:
