Quick Details
-
Application:
-
Engineering industry
-
Rated Lifting Moment:
-
10000NM
-
Place of Origin:
-
Henan, China, China (Mainland)
-
Brand Name:
-
MODERN CRANE
-
Warranty:
-
1year
-
Weight (KG):
-
1000 kg
-
Rated Loading Capacit:
-
10t
-
Max. Lifting Load:
-
10t
-
Product Type:
-
PA
-
Operation Method:
-
Pendant control,remote control
-
After-sales Service Provided::
-
Engineers available to service machinery overseas
Quick Details
-
Rated Loading Capacity:
-
10T
-
Max. Lifting Height:
-
12M, 12m
-
Span:
-
2-12M, 2-12m
-
Application:
-
Engineering industry
-
Rated Lifting Moment:
-
10000NM
-
Place of Origin:
-
Henan, China, China (Mainland)
-
Brand Name:
-
MODERN CRANE
-
Warranty:
-
1year
-
Weight (KG):
-
1000 kg
-
Rated Loading Capacit:
-
10t
-
Max. Lifting Load:
-
10t
-
Product Type:
-
PA
-
Operation Method:
-
Pendant control,remote control
-
After-sales Service Provided::
-
Engineers available to service machinery overseas

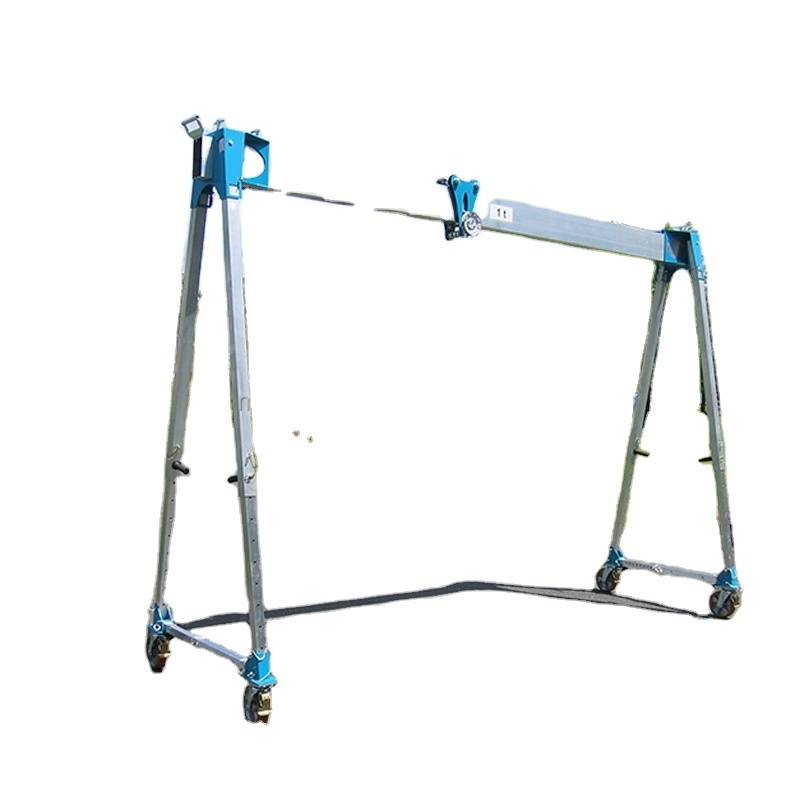

1 ton -10 ton simple portable small / mini gantry crane for sale made in China Crane Hometown
Product Description
Product Type: PA
Lifting Capacity: 250KG-10T
Span Length: 2-12M
Operation method: Pendant control, remote control
Product Feature
High efficiency and good quality mini gantry crane is widely used with standard CD MD Electric Hoist as the lifting mechanism,and the electric hoist traversing along the lower flange of the I-Steel of the main girder,which is made up of C-steel and I-steel.It is a medium-size crane which travelling on rails.
This product is a regular crane widely used at open ground and warehouse loading and unloading materials, It has two controlliing methods,namely ground controlling and room controlling.
Technical Parameters
|
SWL
|
Span (m) |
Lifting Height (m) |
Duty |
Lifting Speed (m/min) |
Wheel Load (KN) |
Operation method |
Power (Kw) |
Weight (Kg) |
|
1000
|
2 |
3/6/9 |
M3/M4 |
2.7-8 Standard Speed |
11 |
Manual Or Electric |
1.5 |
490 |
|
3 |
15 |
600 |
||||||
|
5 |
21 |
690 |
||||||
|
6 |
26 |
750 |
||||||
|
8 |
30 |
800 |
||||||
|
10 |
35 |
900 |
||||||
|
12 |
40 |
1100 |
||||||
|
2000
|
2 |
3/6/9 |
M3/M4 |
2.7-8 Standard Speed |
14 |
Manual Or Electric |
3 |
590 |
|
3 |
19 |
690 |
||||||
|
5 |
27 |
760 |
||||||
|
6 |
31 |
1000 |
||||||
|
8 |
35 |
1500 |
||||||
|
10 |
40 |
1800 |
||||||
|
12 |
45 |
2200 |
||||||
|
3000
|
2 |
3/6/9 |
M3/M4 |
2.7-8 Standard Speed |
28 |
Manual Or Electric |
3 |
790 |
|
3 |
30 |
850 |
||||||
|
5 |
35 |
980 |
||||||
|
6 |
40 |
1130 |
||||||
|
8 |
45 |
1450 |
||||||
|
10 |
49 |
1820 |
||||||
|
12 |
53 |
2060 |
||||||
|
5000
|
2 |
3/6/9 |
M3/M4 |
2.7-8 Standard Speed |
44 |
Manual Or Electric |
7.5 |
2000 |
|
3 |
47 |
2200 |
||||||
|
5 |
50 |
2500 |
||||||
|
6 |
51 |
2700 |
||||||
|
8 |
53 |
2900 |
||||||
|
10 |
56 |
3100 |
||||||
|
12 |
60 |
3317 |
||||||
|
75000
|
2 |
3/6/9 |
M3/M4 |
2.7-8 Standard Speed |
68 |
Manual Or Electric |
13 |
3500 |
|
3 |
75 |
4000 |
||||||
|
5 |
80 |
4500 |
||||||
|
6 |
85 |
5100 |
||||||
|
8 |
92 |
5300 |
||||||
|
10 |
98 |
5500 |
||||||
|
12 |
102 |
6000 |
||||||
|
10000
|
2 |
3/6/9 |
M3/M4 |
2.7-8 Standard Speed |
78 |
Manual Or Electric |
18.5 |
5000 |
|
3 |
85 |
5300 |
||||||
|
5 |
94 |
6300 |
||||||
|
6 |
100 |
7100 |
||||||
|
8 |
105 |
7600 |
||||||
|
10 |
110 |
8000 |
||||||
|
12 |
115 |
8300 |
