Quick Details
-
Brand Name:
-
MICROLINK or net Link
-
Use:
-
CCTV FTTH
-
Warranty Time:
-
10 years
-
Product name:
-
netlink HTB-1100 duplex Multi-mode Fiber Fast Ethernet Converter
-
Wavelength:
-
Tx1310nm / Rx1550nm
-
MAX. Data Rate:
-
100Mbps/1000Mbps (optional)
-
Interface:
-
SC port/ rj45 port
-
Optical Module Type:
-
1*9 built- in module
-
Fiber Type:
-
Duplex MMF
-
Transfer Distance:
-
2KM/550M (optiona)
-
Working Voltage:
-
DV 5V/2A
-
Certificate:
-
CE ROHS ISO
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
ML-HTB-1100-2KM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MICROLINK or net Link
-
Use:
-
CCTV FTTH
-
Warranty Time:
-
10 years
-
Product name:
-
netlink HTB-1100 duplex Multi-mode Fiber Fast Ethernet Converter
-
Wavelength:
-
Tx1310nm / Rx1550nm
-
MAX. Data Rate:
-
100Mbps/1000Mbps (optional)
-
Interface:
-
SC port/ rj45 port
-
Optical Module Type:
-
1*9 built- in module
-
Fiber Type:
-
Duplex MMF
-
Transfer Distance:
-
2KM/550M (optiona)
-
Working Voltage:
-
DV 5V/2A
-
Certificate:
-
CE ROHS ISO

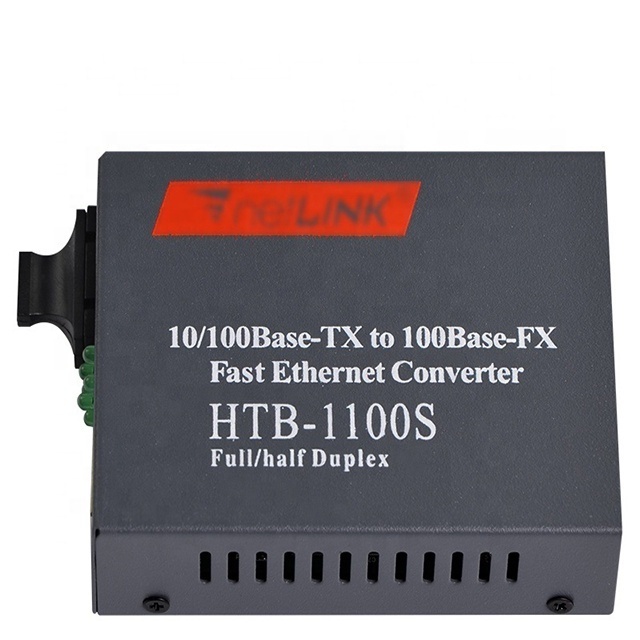

netlink HTB-1100 10/100Mbps Multi-Mode Duplex Optic Fiber Transceiver 2KM Fiber Ethernet Media Converter
Product Description
DESCRIPTION
HTB -1100 is 10/100M adaptive fast Ethernet optical transceiver. It can achieve two different twisted-pair cable
and optical fiber transmission medium of transformation, relay base - TX 10/100 and 100 base - FX two different
network segments, can satisfy the long distance, high speed and high bandwidth fast Ethernet workgroup user
needs.
FEATURE
Special used for exchanging between Ethernet LAN cable and Fiber.
Embedded with 1*9 fiber optic module
Special made chip with low consumption,supporting over longtime frame.
Superior Photoelectric integrated module which provide good optical and electrical performance.
Ensure the reliability of data transmitting,long operating life span.
Support Internal and External:1.5U rack mount,optional installation method.
Average of No trouble working time to 50000 hours,meet the ITU-T standard.
Integrated after selling services, 3 years warranty, lifetime Maintenance Service.
DATASHEET
|
Type
|
netlink HTB-1100 10/100Mbps Multi-Mode Duplex Optic Fiber Transceiver 2KM Fiber Ethernet Media Converter
|
|
|
|
|||
|
Wavelength
|
MM 850nm,1310nm; SM 1310nm,1550nm (optional)
|
|
|
|
|||
|
Standard
|
In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z,1000base-SX/LX, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree.
|
|
|
|
|||
|
Data Rate (max)
|
100Mbps/1.25Gbps (optional)
|
|
|
|
|||
|
Interface
|
Fiber:SC/ST/FC (optional)
|
|
|
|
|||
|
|
Ethernet: 10/100Mbps, 10/100/1000Mbps (optional)
|
|
|
|
|||
|
Duplex Way
|
fiber full duplex
|
|
|
|
|||
|
Duplex Way
|
ethernet duplex or half duplex optional
|
|
|
|
|||
|
Distance
|
10/100Mbps:MM 2km,SM 25/40/60/80/100/120km (optional)
|
|
|
|
|||
|
Connector
|
10/100/1000Mbps:MM 550m/2km,SM 20/40/60/80/100km( optional)
|
|
|
|
|||
|
Power Input
|
Adapter Type: DC5V/2A
|
|
|
|
|||
|
Application
|
AC100~240V
|
|
|
|
|||
|
Power Consumption
|
<3W
|
|
|
|
|||
Detailed Images
Application
Packing & Delivery
Related Products
Our Factory
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer, designer and distributor.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it depends on order quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight which is refundable from an official order. For our regular clients, we bear sample cost and delivery freight.
Q: Do you offer OEM & ODM service
Yes, we can print your LOGO on RJ45 plug and cable and package as per demand for bulk order.
Q: What is your terms of payment ?
A: Payment less than 1000USD, 100% in advance. Paymen more than 2000USD, 30% T/T in advance ,balance before shipment.Also we accept L/C at sight. Other payment ways are negotiable.If you have another question, pls feel free to contact us as below:
Q: What about shipment?
A: we have long term cooperation with premium logistic forwarders, who can offer fast delivery at low freight rate for shipment like express, post, air cargo, ocean cargo, door to door DDP &DDU.
