Quick Details
-
Voltage:
-
380v/220v
-
Power:
-
5.5kW
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
3200*2190*2200mm
-
Year:
-
2022
-
Product name:
-
Fruit and Vegetable Dryer
-
After-sales services provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainless Steel
-
Energy:
-
Energy saving
-
Application:
-
Drying fruit&vegetables&seafood
-
Function:
-
Cooling+Drying+Dehumidity
-
Technology:
-
New Technology
-
Advantage:
-
Multi temperature and time zone control
-
Model number:
-
DT1300H
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Drytech
-
Type:
-
dryer
-
Voltage:
-
380v/220v
-
Power:
-
5.5kW
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
3200*2190*2200mm
-
Year:
-
2022
-
Product name:
-
Fruit and Vegetable Dryer
-
After-sales services provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainless Steel
-
Energy:
-
Energy saving
-
Application:
-
Drying fruit&vegetables&seafood
-
Function:
-
Cooling+Drying+Dehumidity
-
Technology:
-
New Technology
-
Advantage:
-
Multi temperature and time zone control
-
Model number:
-
DT1300H
-
After Warranty Service:
-
Video technical support
Environmental protection air heat pump dryer agriculture food drying equipment mushroom dehydrating oven peanut dryer

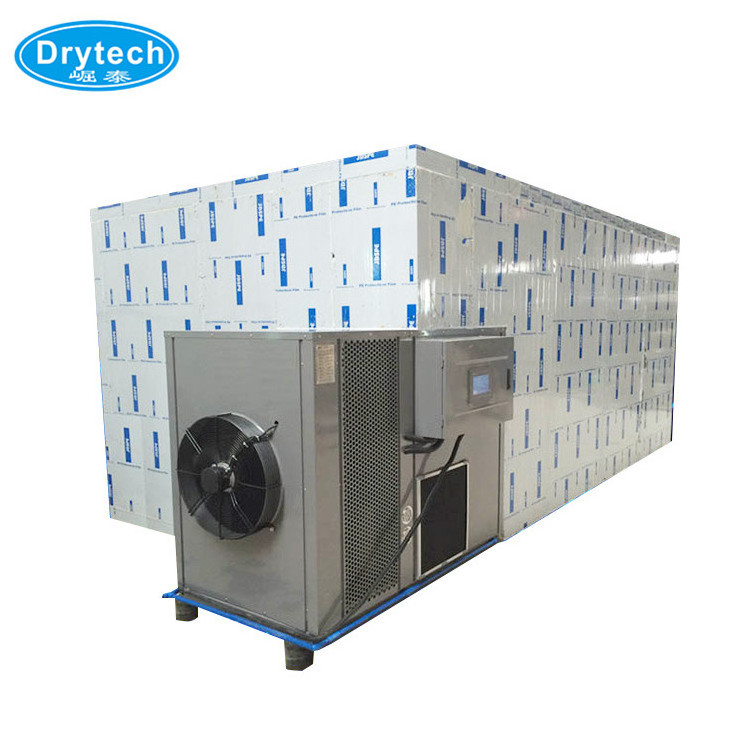

What Are DRYTECH Heat Pump Drying Machine?
DRYTECH Heat Pump Drying Machine takes advantage of the reversed Carnot principle, absorbing the heat from around and sending the heat to the materials which will be dried. This kind of dryer is mainly composed of heat pump dryer and drying chamber. This dryer will be controlled by touch screen controller, and the temperature can be adjusted. It has low electric consumption.
Working Principle:
Parameter:
| Single dryer+drying chamber | ||||
| Model | Unit | DT300H | DT600H | DT1200H |
| Power input | KW | 5.5 | 9.5 | 19.4 |
| power supply | V/PH/HZ | 380V/3PH,50/60HZ | 380V/3PH,50/60HZ | |
| 220V/1PH,50/60HZ | ||||
| Rated current | A | 9.6A(380V),22A(220V) | 17.0 | 30.0 |
| Heating capacity | KW | 10.5 | 21.0 | 42.0 |
| Cooling capacity | KW | 7.8 | 18.0 | 32.0 |
| Dehumidity | L/H | 12.0 | 25.0 | 50.0 |
| Max temperature | ℃ | ≤75 | ≤75 | ≤75 |
| Working condition | ℃ | 0-43 | 0-43 | 0-43 |
| Electric shock protection grade | 1 | 1 | 1 | |
| Max exhause pressure | M(P)a | 30 | 30 | 30 |
| Noise | d(B(A | 75 | 75 | 75 |
| Power consumption/H | KWH | 4.8 | 8.5 | 15.0 |
| Electric heater | KW | 3.0 | 6.0 | 12.0 |
| Blowing type | / | HORIZONTAL BLOWING TYPE | ||
| Demsnssion of dryer | MM | 3160*2070*2200 | 5700*2170*2200 | 5810*3230*2200 |
| Weight | KG | 180 | 285 | 480 |
Buying guiding:
Recommend drying machine+Drying chamber sizes
| ITEM | DESCRIPTION | PRODUCT CAPACITY | DRYING CHAMBER SIZE |
| 1 | One unit DT300H+Drying chamer | 300/batch | 4000*2000*2200 |
| 2 | One unit DT600H+Drying chamer | 600/batch | 6000*2800*2200 |
| 3 | One unit DT1200H+Drying chamer | 1300/batch | 6000*3000*2200 |
| 4 | One unit DT300HD+Drying chamer | 1200/batch | 7000*2200*2200 |
| 5 | One unit DT600HD+Drying chamer | 1500/batch | 10000*2800*2200 |
| 6 | One unit DT1200HD+Drying chamer | 3500/batch | 10000*3000*2200 |
