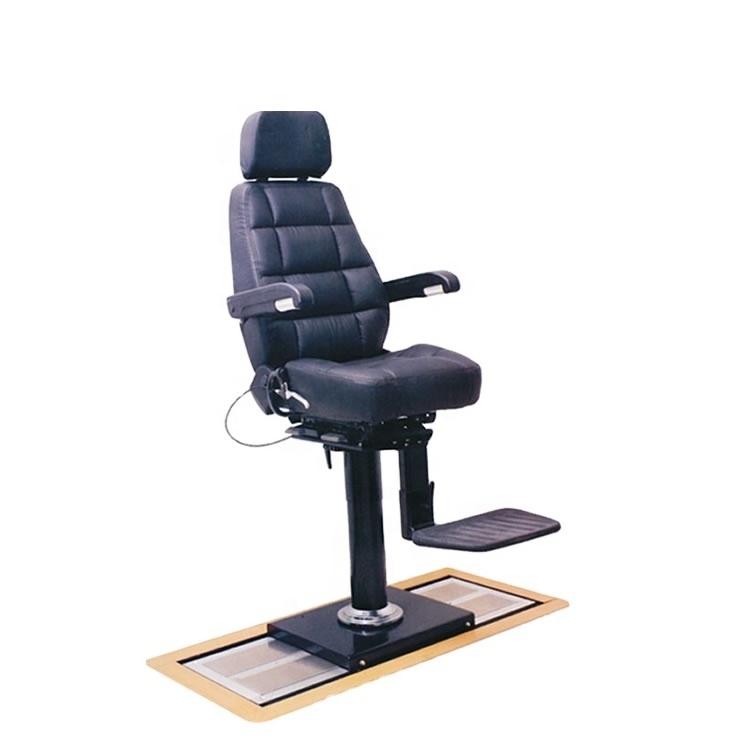

Factory Supply High Quality Yacht Boat Marine Helm Seat

Function:

Material :

1.lifting column with steel , stainless steel synthesis;

2.The seat lifting and tilting, move back and forth, back angle adjusting are used in steel structure ;

3. The seat back and the seat cushion adopts the steel inner core and PU cold foam forming disposable sponge synthesis, outsourcing leather or cloth ;

4. Pedal steel plate inner core and environmentally friendly rubber synthetic;

5. Pneumatic lifting core components pneumatic bar the use of German imports of Stabilus ;

Function data :

1.Upper part of the seat can be moved back and forth of 220mm , height adjustment 50mm , seat inclination angle range of ± 12 ° ;

2. Seat backrest with adjustable angle of 85 ° -150 ° , the headrest adjusted up and down 50mm , handrest multi-point positioning control ;

3. The seat of pneumatic lifting regulating range 0-150mm ;

4. The seat can rotate 360 ° and locked ,4-point positioning control;

5. Seat pedal can rotate 90 ° and regression , upper and lower position adjusting range of 0-50mm;

6.Seat can bear more than 150FT .LB torsion, reached AD grade standard;
